Spliceable 20-pin Jumper T-Harness (Fits: Subaru/Nissan)

Item Number: AHH-5076

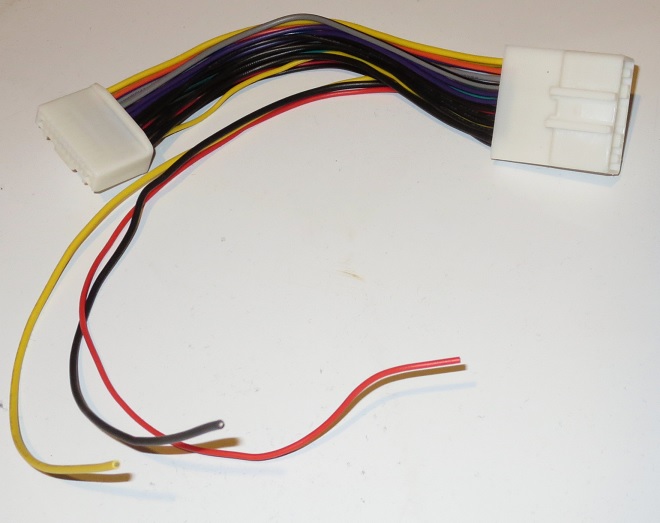

The 20-pin Jumper Harness has the Subaru 20-pin female connector on one end and 20-pin male connector on the other. One end will connect to the factory wiring harness and the other to the connector on the back of the head-unit or navigation system. This prevents the need to cut or damage factory wiring when adding an aftermarket amplifier, installing a subwoofer, or doing other aftermarket modifications.

Breakout wires are wired in for:
-Ground
-Constant (Memory) +12 volts
-Switched (Ignition) +12 volts
***Additional breakouts can be soldered in for a fee***

This harness will allow you to modify or splice into many of the signals that connect to your vehicle:
-Front and Rear speaker signals
-Vehicle Speed Sensor(VSS) input
-Remote(Steering Wheel) audio control switches

All 20 pins are populated and color-coded consistent with aftermarket audio conventions.

Installation:

This harness connects between the stock head unit and the car's wiring harness. This harness should be connected between the head unit and wiring harness and used to tap the connections into the headunit without splicing or cutting the factory wiring harness.

Purchase:

Price: $34.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Subaru
2012-2014 Crosstrek XV (w/o nav)
2009-2015 Forester (w/o nav)
2008-2014 Impreza (w/o nav)
2010-2014 Legacy (w/o nav)
2010-2014 Outback (w/o nav)
2010-2015 WRX and WRX STI (w/o nav)
***This harness is not compatible with any 2016+ Subaru vehicle. Please contact us (inquiry@autoharnesshouse.com) for the correct harness.

Nissan

2009-2019 370Z
2007-2024 Altima
2008-2019 Armada (Non-Bose Systems Only)
2009-2014 Cube
2008-2024 Frontier
2011-2017 Juke
2007-2019 Maxima
2009-2019 Murano
2011-2018 NV
2008-2020 Pathfinder
2011-2016 Quest
2008-2023 Rogue
2007-2024 Sentra
2008-2024 Titan
2007-2024 Versa
2008-2015 Xterra

Infiniti

2008-2013 G37
2007-2008 G35
