Direct wire harness for ATOTO S8, F7 and 10-inch S8MS Headunits - NOT S8 Lite or the 7-inch and 9-inch A6PF/S8MS (fits Toyota and Subaru - See compatibility information below)

Item Number: AHH-70-1761ATOTO

IMPORTANT: This adapter fits the standard ATOTO S8 and ATOTO F7, plus the 10-inch S8MS (sold as S8G1104MS, S8EG1104MSB or S81104MSFX), and the 10.1-inch ATOTO A6 PF (A6G110PF). It does NOT fit the 7-inch or 9-inch ATOTO S8MS, the S8 Lite, or the 7-inch and 9-inch A6 PF models - those units use a different connector. If you are installing one of those, please click here to go to the correct page.

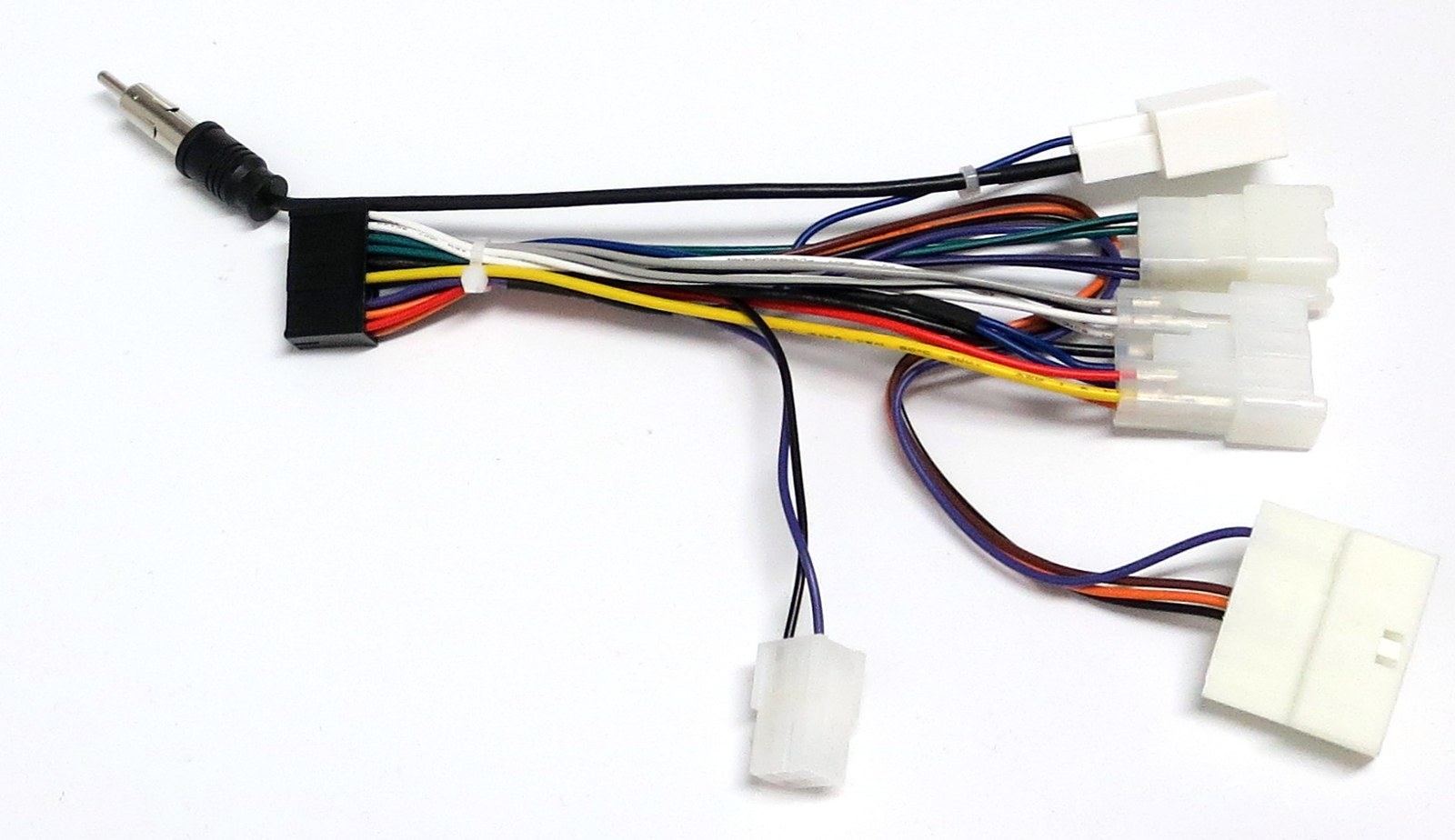

This harness is the simplest way to install a ATOTO headunit in your Subaru or Toyota. It is pre-wired with the ATOTO connector on 1 end and the Subaru or Toyota connector on the other.

Backup Camera - IMPORTANT: This adapter does not retain the backup camera. If your vehicle has a backup camera, you will use this adapter combined with the backup camera adapter that we offer. For most vehicles, this will be plug and play. Here are the basics:

-2013+ Toyota Vehicles will have either a 16-pin or 24-pin backup camera connection. These vehicles will need the additional backup camera adapter sold below. Most Toyota vehicles have the 24-pin backup camera connection (especially 2015 and newer vehicles...If you have a 2013 vehicle, it will most likely have the 16-pin connection) Feel free to email us with your vehicle model and year if you are not sure.

-Older Toyota vehicles(2011 and earlier) will require a custom backup camera adapter. Please email us about this part at inquiry@autoharnesshouse.com.

-Subaru Vehicles - For Subaru vehicles with a backup camera, buy the adapter here instead of the adapter sold on this page. The adapter on this page has the backup camera adapter built in and you won't need to do any modification.

Subaru Owners: Please check out our full line of products for your vehicle HERE!

Toyota Owners: Please check out our full line of products for your vehicle HERE!

What's included:

-ATOTO Direct wire adapter.
-28-pin or 20-pin connector (based on your selection below) is provided to connect the steering wheel buttons and the reverse signal in your vehicle to the ATOTO headunit without splicing wires.
-AM/FM antenna adapter (not needed for all vehicles)
-Installation instructions are included.

Installation:

1) Just connect both ends (to the ATOTO headunit and to the Vehicle)
2) Connect the 28-pin connector if your vehicle has it. If your vehicle has the 20-pin connector (only for Toyota and Scion vehicles), we recommend purchasing the 20-pin version of this adapter that we sell on this page. If you've ordered the 28-pin version, we can provide an adapter to go between the 28-pin and 20-pin connectors (cost is $20 - Please emails us at inquiry@autoharnesshouse.com).

Purchase:

Price: $29.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Subaru
2019-2022 Ascent (non-Harman Kardon)
2013-2022 BRZ
2012-2014 Crosstrek XV (w/ nav)
2015-2022 Crosstrek (both nav and non-nav models - non-Harman Kardon models only)
2012-2015 Forester (w/ nav)
2016-2022 Forester (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Impreza (w/ nav)
2015-2022 Impreza (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Legacy (w/ nav)
2015-2020 Legacy (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Outback (w/ nav)
2012-2014 Outback (non-nav with display screen - Harman Kardon models will need an additional wire added for the amp. Email when you order and we can add it for you.)
2015-2022 Outback (both nav and non-nav models - non-Harman Kardon models only)
2012-2015 WRX and WRX STI (w/ nav)
2016-2022 WRX (both nav and non-nav models - non-Harman Kardon models only)

Toyota
1994-2018 All Models (except models with JBL audio)

ATOTO Headunit Compatibility

ATOTO uses 2 different headunit connectors. Please make sure you have the right one for the unit that you're installing!
DOES NOT FIT the 7-inch or 9-inch ATOTO A6 PF (A6G2A7PF, A6G2B7PF, A6G2C7PF, A6G209PF) - EXCEPT the 10.1-inch A6 PF, which DOES fit this adapter, listed below
ATOTO A6 (will fit older A6 models only)

ATOTO F7WE
ATOTO F7 XE
ATOTO F7 (All other Variations)

DOES NOT FIT the ATOTO S8 Lite or the ATOTO S8 MS models - with ONE exception, listed below, which DOES fit this adapter!
ATOTO S8 MS sold as S8G1104MS, S8EG1104MSB or S81104MSFX - one radio, three part numbers depending on where you bought it (this is the 10-inch floating-screen S8 MS). Check the model number printed on your radio or shown on your receipt.
ATOTO A6 PF 10.1-inch floating screen - A6G110PF (despite the A6 PF name, this one uses the standard 20-pin connector, unlike the 7-inch and 9-inch A6 PF)
ATOTO A5L 10-inch floating screen - A5LG110T and A5LG110PT (the 7-inch A5L does NOT fit - it uses the other connector)
ATOTO S8 10.1-inch S8G1104PRN
ATOTO S8UP 10-inch (Sold On Amazon!)
DOES NOT FIT the newest ATOTO lines that switched to a 16-pin harness - the V10 (V10G110OC) and the S8 Gen4 (S84G110PB). Quick check: this adapter is for radios that come with a 20-pin power harness. If yours came with a 16-pin harness, email us before you order and we will tell you which adapter you need.
ATOTO X10 9-inch (Sold by AutoHarnessHouse - Lower price than Amazon!)
ATOTO X10 10-inch (Sold by AutoHarnessHouse - Great Deal!) - also X10G110E, X10G110ESM and X10G110PESM (the 10.1-inch X10 with the passenger / co-pilot screen)
ATOTO X10 12.5-inch X10G225E

We carry a compatible adapter for these other ATOTO models. Click here for the ATOTO A6PF / S8 Lite / S8 MS version of this same adapter. Please email us or check out the Similar items below.

Toyota Only - Backup Camera Add-on adapter:

This is a plug and play adapter to retain the backup camera on Toyota vehicles. This adapter will plug into the ATOTO direct wire adapter directly. For Subaru vehicles, please email us with your vehicle model and year.

See the full product listing here
