Direct wire harness for Pioneer Headunits (fits 2000-2008 Chevy/GM vehicles- See compatibility information below)

Item Number: AHH-70-2003

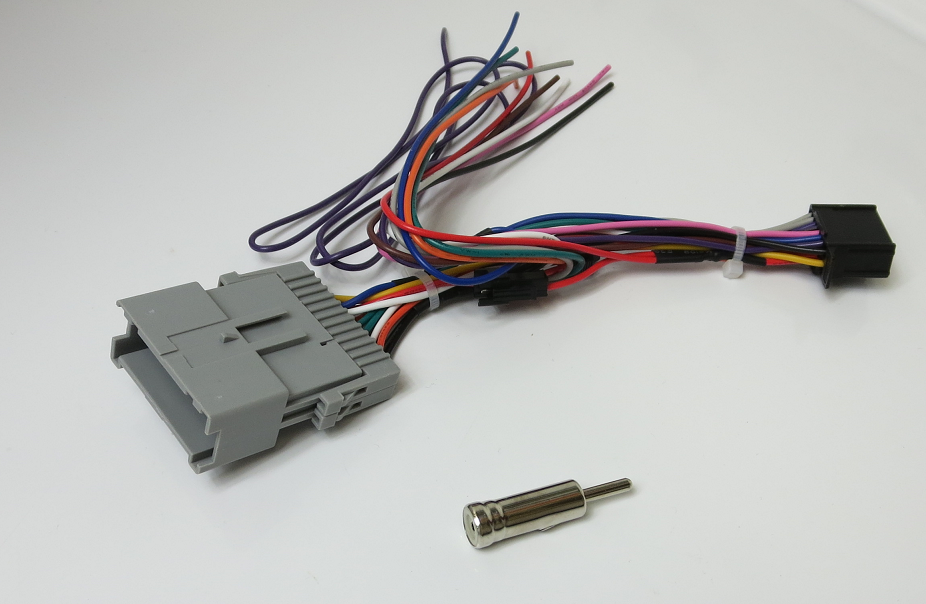

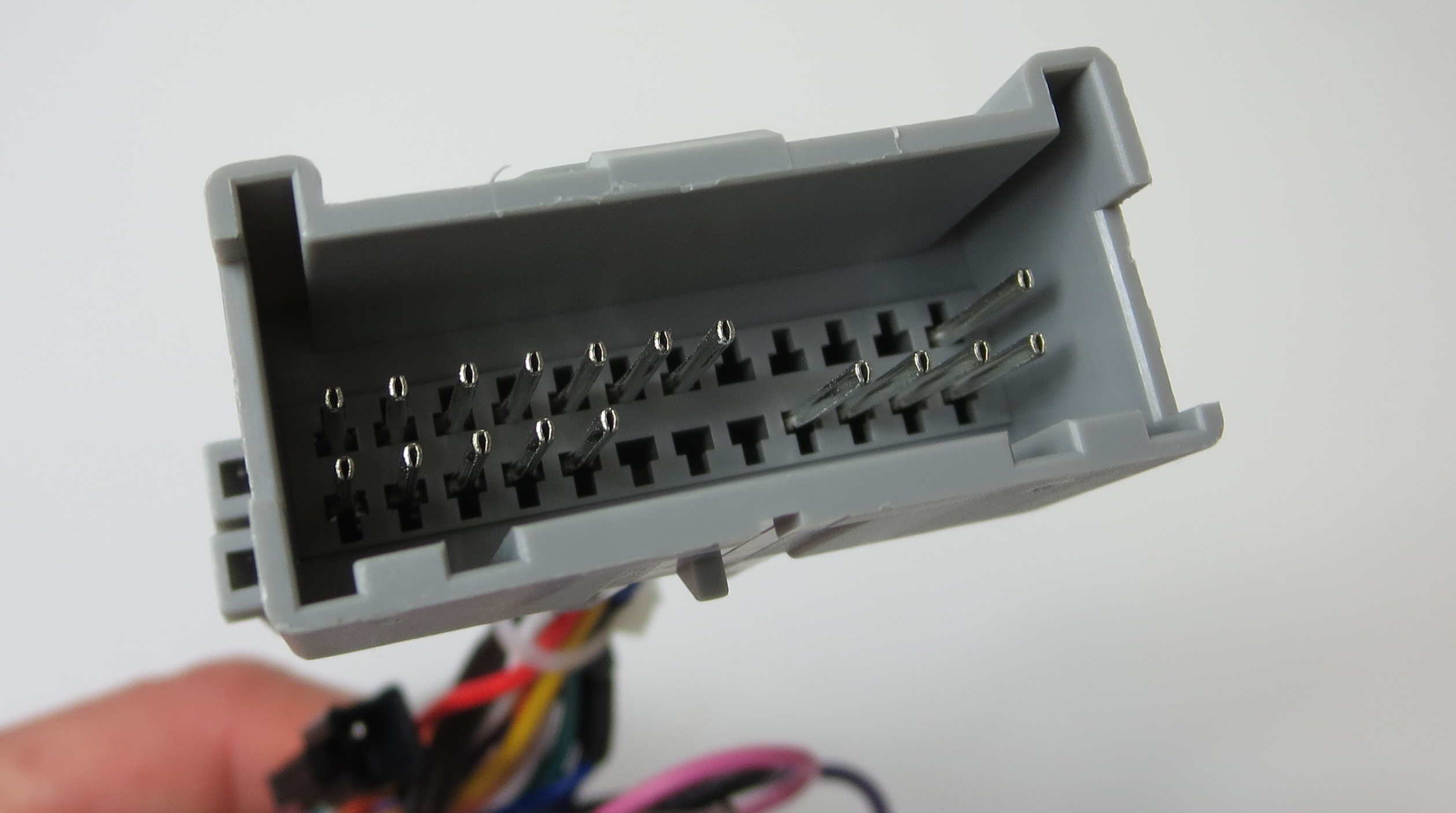

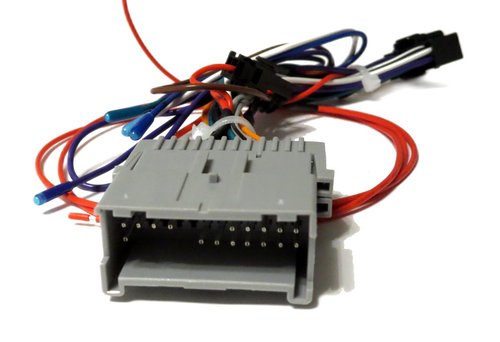

This harness is the simplest way to install a Pioneer headunit in your Chevy or GMC vehicle. It is pre-wired with the Pioneer connector on 1 end and the Chevy/GM connector on the other.

Not directly compatible with amp systems like Bose, Infinity, On-Star etc. but you can install this in a Bose vehicle by bypassing the amp. Use this hack to bypass the amp.

What's included:

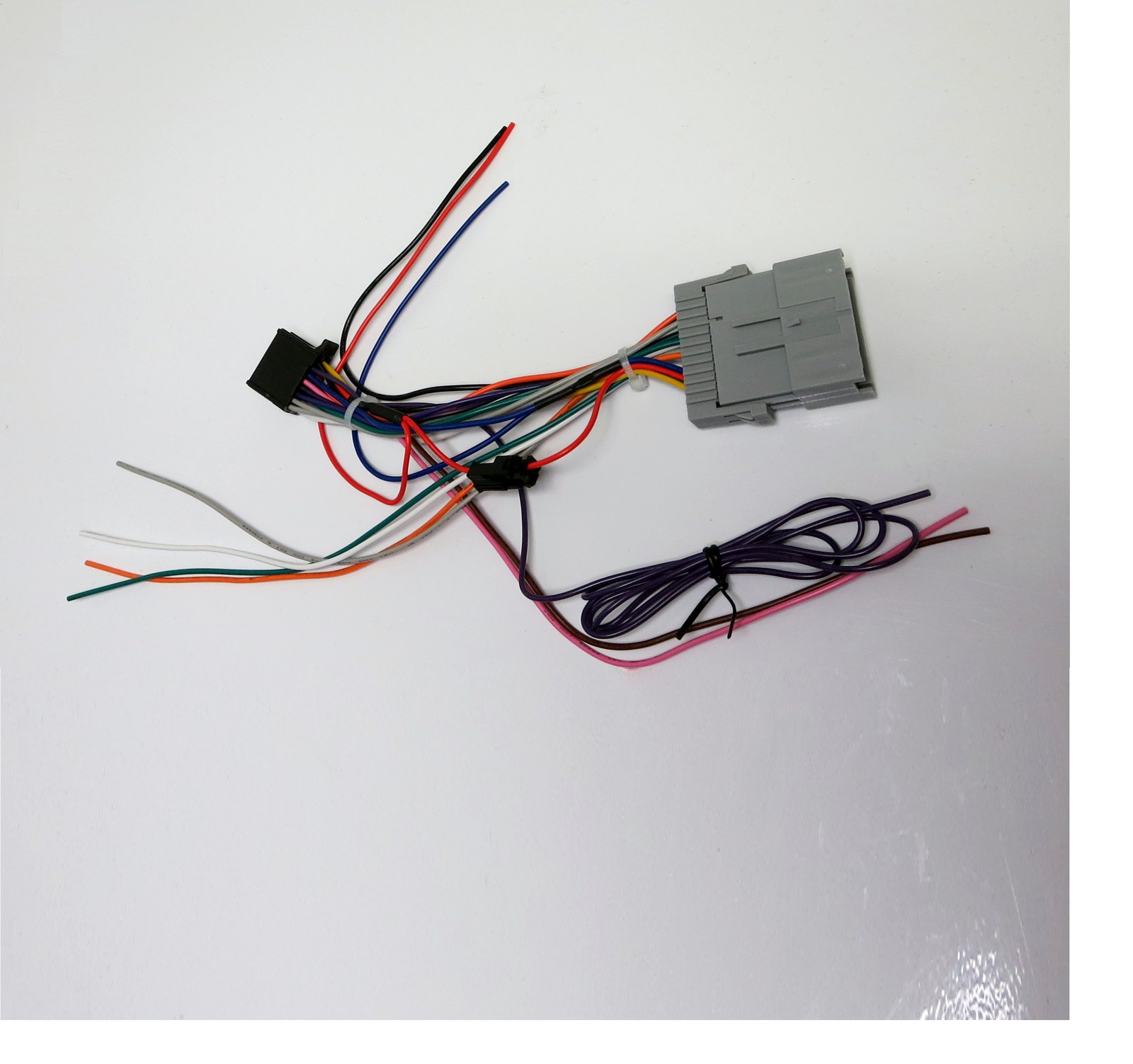

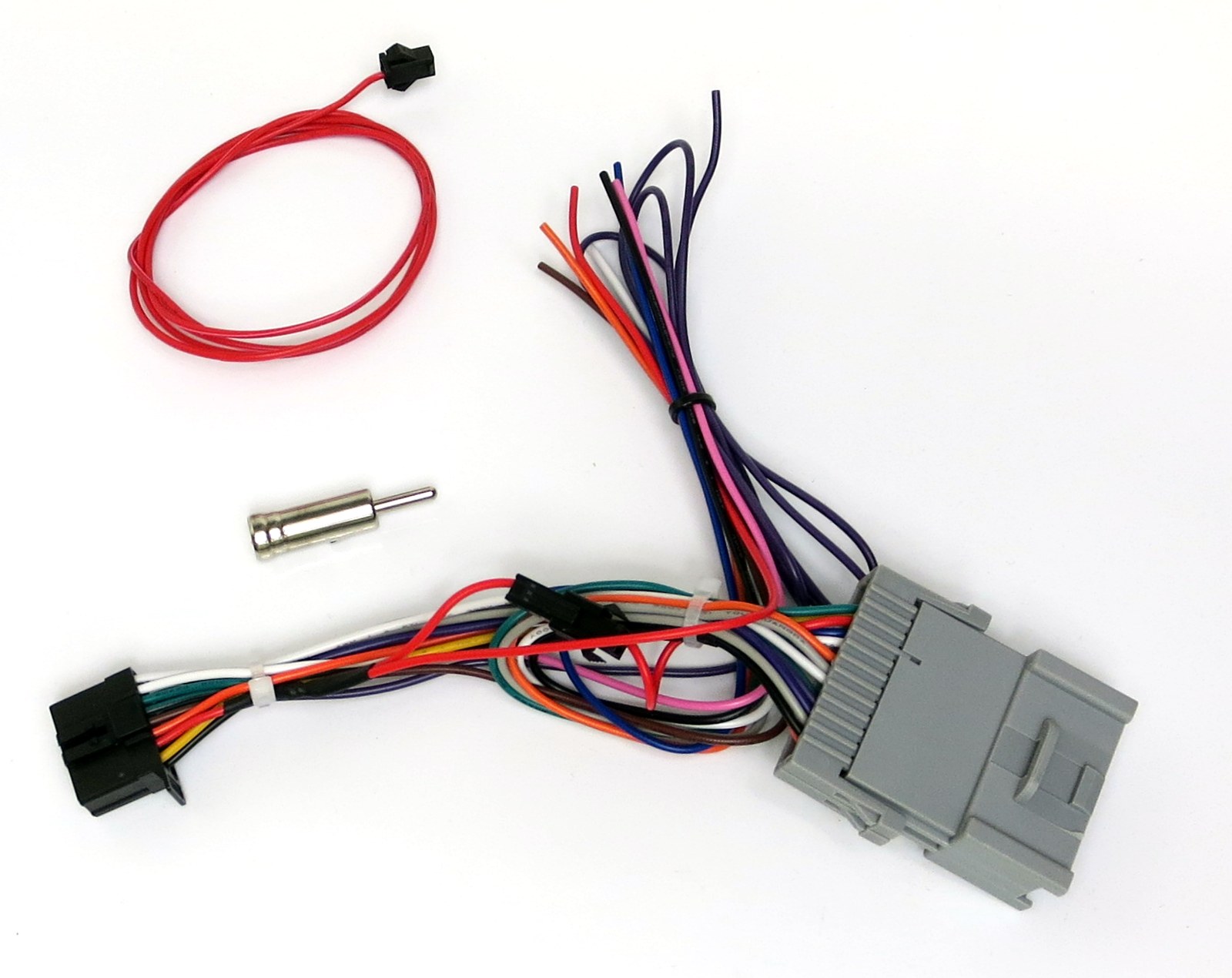

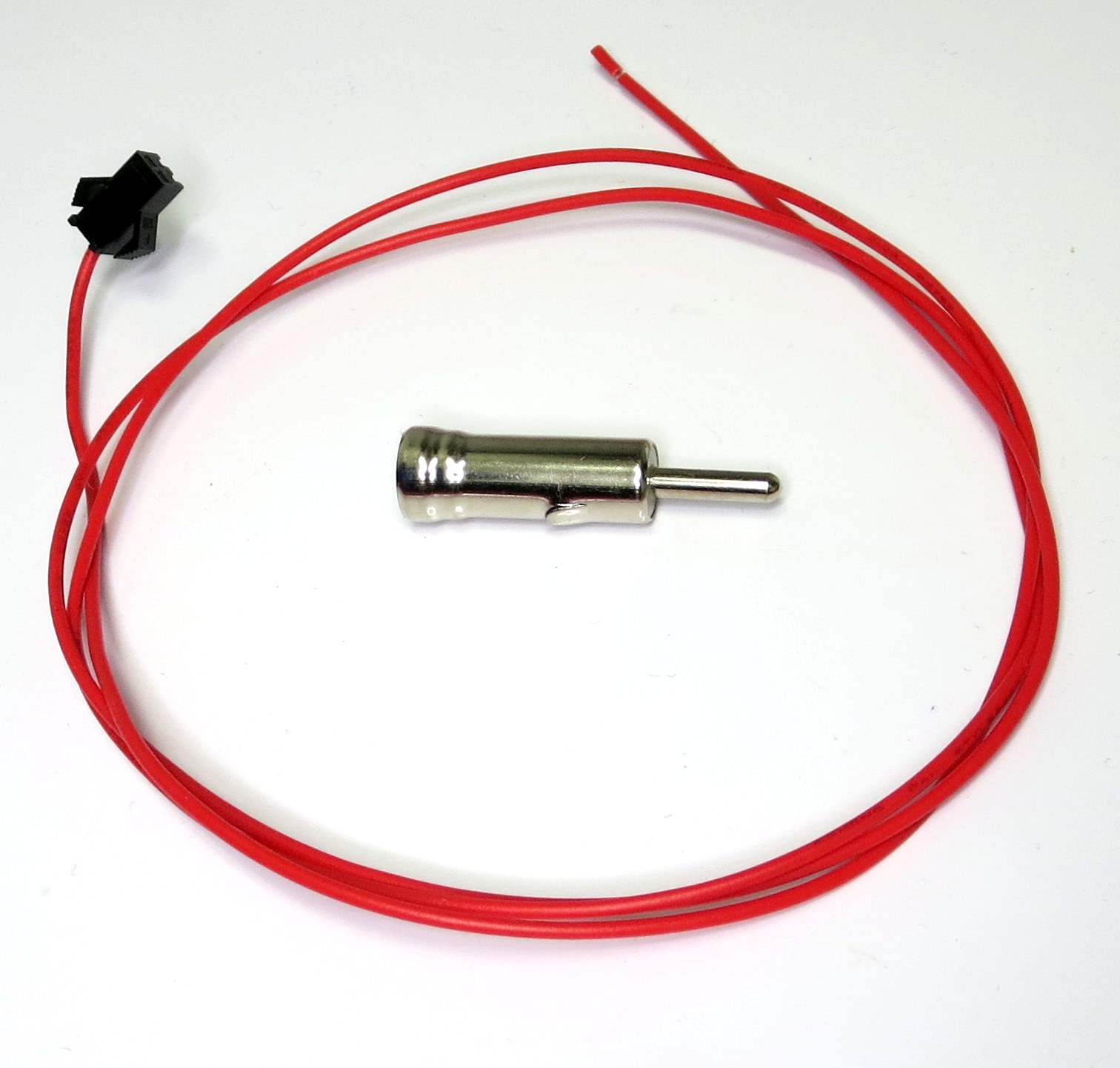

• Pioneer Direct Wire Adapter, AM/FM radio adapter, and 12V power lead (for vehicles that do not have a +12V supply in the OEM radio wiring)
• Steering Wheel Control wires are provided to the OEM connector (This signal is unique - the signal is not provided on most aftermarket install harnesses) Multiple wires are provided for this and some of them will not be used on all vehicles.
• Reverse, Vehicle Speed, and E-brake signals are provided from the Pioneer connector since this will need to be connected elsewhere on the vehicle.
• +12v switched (Red) and Ground (Black) connections are provided for wiring of a steering wheel control interface or other +12v devices.
• Amp Turn-on signal is provided for connecting a Parking Brake Bypass module

Installation:

1) Just connect both ends (to the Pioneer and to the Vehicle)
2) Connect the Vehicle Speed and E-brake signals (Reverse is needed only if you will be connecting a backup camera)

Purchase:

Price: $23.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Buick:
2005 - 2009 LaCrosse
2004 - 2007 Ranier
2005 - 2007 Terraza

Cadillac:
2004 - 2006 Escalade ESV/EXT

Chevrolet:
Avalanche 2003-2006
Blazer 2002-2005
Cavalier 2000-2005
Cobalt 2005
Colorado 2004-2012
Corvette 2005-2013
Express Van 2001 - 2002
Impala 2000-2005
Malibu 2004-2007
Malibu 2008 [Classic Models ONLY]
Malibu Maxx 2004-2007
Monte Carlo 2000-2005
S10 2002-2004 (it will be necessary to connect the included +12V wire)
Silverado 2003-2006
Silverado 2007 Classic Models ONLY
SSR 2003-2006
Suburban 2003-2006
Tahoe 2004-2006
Trailblazer 2002-2009
Uplander 2005-2008
Venture Van 2000 - 2005

GMC:
Canyon 2004-2012
Envoy 2002-2009
Savana 2003-2007
Sierra 2003-2005（No Fit FOR 2005 Sierra 1500）
Sierra Classic 2007
Yukon/Yukon XL 1500 2003-2006

Hummer:
H2 2003-2007
H3 2005-2010
H3T 2009-2010
SUT 2003-2007

Isuzu:
2003 - 2008 Ascender

Pontiac:
Aztek 2001-2005
Grand Am 2001 2002 2004
Montana 2000-2005
Montana SV6 2005-2006
Sunfire 2000-2005
Torrent 2006

Oldsmobile:
2001 - 2004 Alero
2002 - 2004 Bravada
2000 - 2004 Silhouette

Saturn:
2005 - 2007 Relay

Pioneer Headunit Compatibility

This harness will fit any 2014 or newer Pioneer headunit with a video screen.
(If your unit does not have a video screen, slight modification may be necessary. Click here for more details.)
Pioneer AVH-110BT
Pioneer AVH-120BT
Pioneer AVH-1300NEX
Pioneer AVH-1330NEX
Pioneer AVH-1500NEX
Pioneer AVH-1550NEX
Pioneer AVH-190DVD
Pioneer AVH-200EX
Pioneer AVH-201EX
Pioneer AVH-210EX
Pioneer AVH-211EX
Pioneer AVH-220EX
Pioneer AVH-270BT
Pioneer AVH-280BT
Pioneer AVH-290BT
Pioneer AVH-291BT
Pioneer AVH-2300NEX
Pioneer AVH-2330NEX
Pioneer AVH-2400NEX
Pioneer AVH-2440NEX
Pioneer AVH-2500NEX
Pioneer AVH-2550NEX
Pioneer AVH-310EX
Pioneer AVH-3500NEX
Pioneer AVH-4100NEX
Pioneer AVH-4200NEX
Pioneer AVH-500EX
Pioneer AVH-501EX
Pioneer AVH-521EX
Pioneer AVH-600EX
Pioneer AVH-601EX

Pioneer AVH-W4400NEX
Pioneer AVH-W4500NEX

Pioneer AVH-X2800bs
Pioneer AVH-X390bs
Pioneer AVH-X391BHS
Pioneer AVH-X4800bs
Pioneer AVH-X490bs
Pioneer AVH-X491BHS
Pioneer AVH-X5800BHS
Pioneer AVH-X7800BT

Pioneer AVH-ZL5150BT

Pioneer AVIC-5000NEX
Pioneer AVIC-5100NEX
Pioneer AVIC-5200NEX
Pioneer AVIC-5201NEX
Pioneer AVIC-6200NEX
Pioneer AVIC-6201NEX
Pioneer AVIC-7200NEX
Pioneer AVIC-7201NEX
Pioneer AVIC-8200NEX
Pioneer AVIC-8201NEX
Pioneer AVIC-W6400NEX
Pioneer AVIC-W6500NEX
Pioneer AVIC-W8400NEX
Pioneer AVIC-W8500NEX

Pioneer DEH-80PRS
Pioneer DMH-100BT
Pioneer DMH-130BT
Pioneer DMH-160BT
Pioneer DMH-1500NEX
Pioneer DMH-1700NEX
Pioneer DMH-1770NEX
Pioneer DMH-240EX
Pioneer DMH-241EX
Pioneer DMH-2000NEX
Pioneer DMH-2600NEX
Pioneer DMH-2660NEX
Pioneer DMH-341EX

Pioneer DMH-C5500NEX
Pioneer DMH-C2550NEX
Pioneer DMH-C2500NEX
Pioneer DMH-W2700NEX
Pioneer DMH-W2770NEX
Pioneer DMH-W3000NEX
Pioneer DMH-W3050NEX
Pioneer DMH-W4600NEX
Pioneer DMH-W4660NEX
Pioneer DMH-WC6600NEX
Pioneer DMH-WC5700NEX
Pioneer DMH-WT3800NEX
Pioneer DMH-WT76NEX
Pioneer DMH-WT7600NEX
Pioneer DMH-WT8600NEX

Pioneer MVH-AV251BT
Pioneer MVH-AV290BT
Pioneer MVH-1400NEX
Pioneer MVH-210EX
Pioneer MVH-211EX
Pioneer MVH-2400NEX
Pioneer MVH-300EX
Pioneer MVH-S310BT

Pioneer SPH-DA02 AppRadio
Pioneer SPH-DA01 AppRadio
Pioneer SPH-DA120 AppRadio 4
Pioneer SPH-DA210 AppRadio 3
Pioneer SPH-DA100 AppRadio 2
Pioneer SPH-10BT

and MANY more...

Are you installing a Single DIN Pioneer headunit or a headunit that does not have an LCD display screen? This adapter is compatible with these headunits but a modification to the harness is necessary. Click Here for compatibility and instructions.
