Direct wire harness for ATOTO S8, F7 and 10-inch S8MS Headunits - NOT S8 Lite or the 7-inch and 9-inch A6PF/S8MS (fits Select Ford Lincoln Mercury Hyundai - See compatibility information below)

Item Number: AHH-70-5520ATOTO

IMPORTANT: This adapter fits the ATOTO F7, standard S8, and the 10-inch S8MS (sold as S8G1104MS, S8EG1104MSB or S81104MSFX), and the 10.1-inch ATOTO A6 PF (A6G110PF). It does NOT fit the 7-inch or 9-inch ATOTO S8MS, the S8 Lite, or the 7-inch and 9-inch A6 PF models. If you are installing one of those, please click here for the correct adapter.

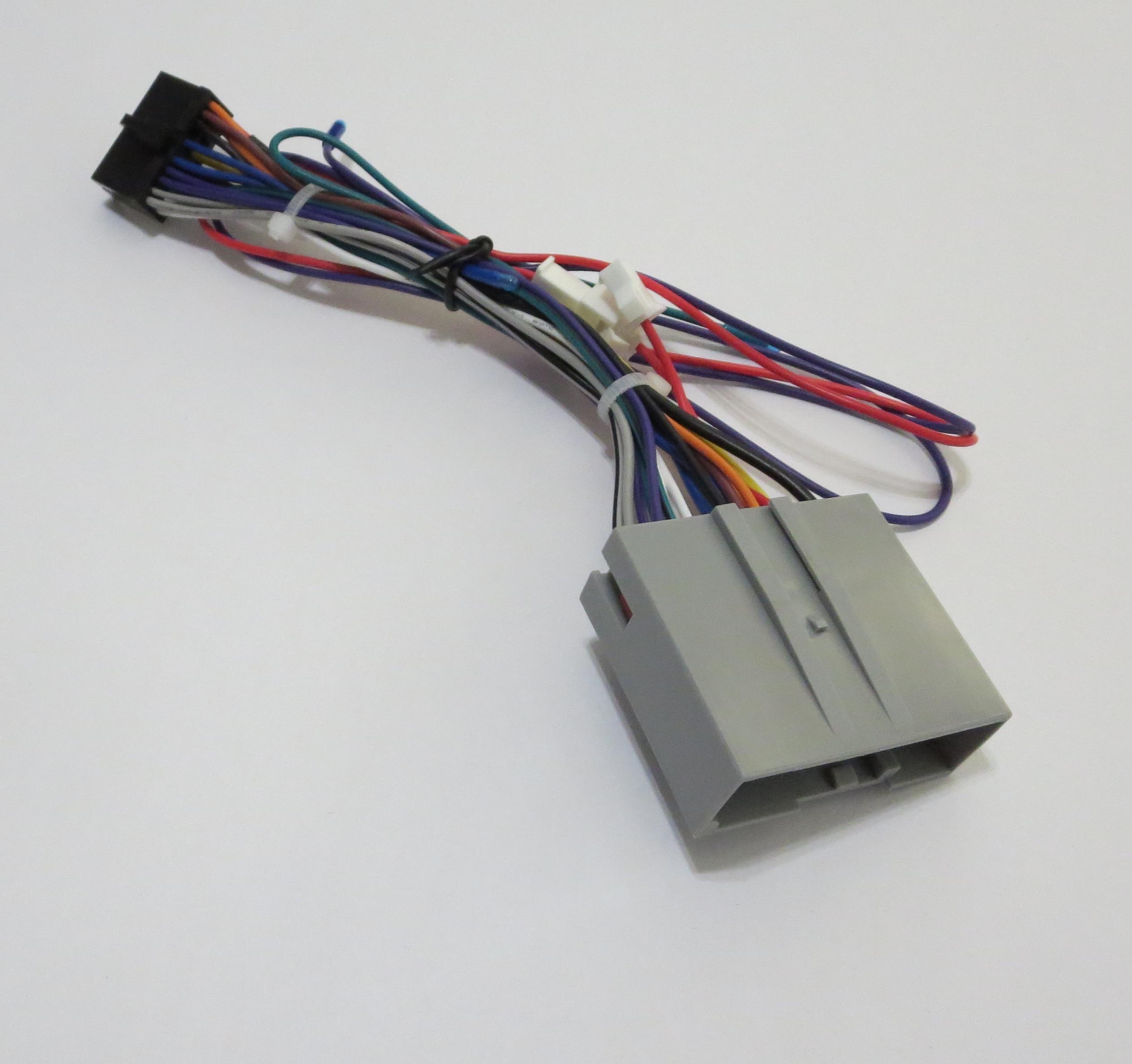

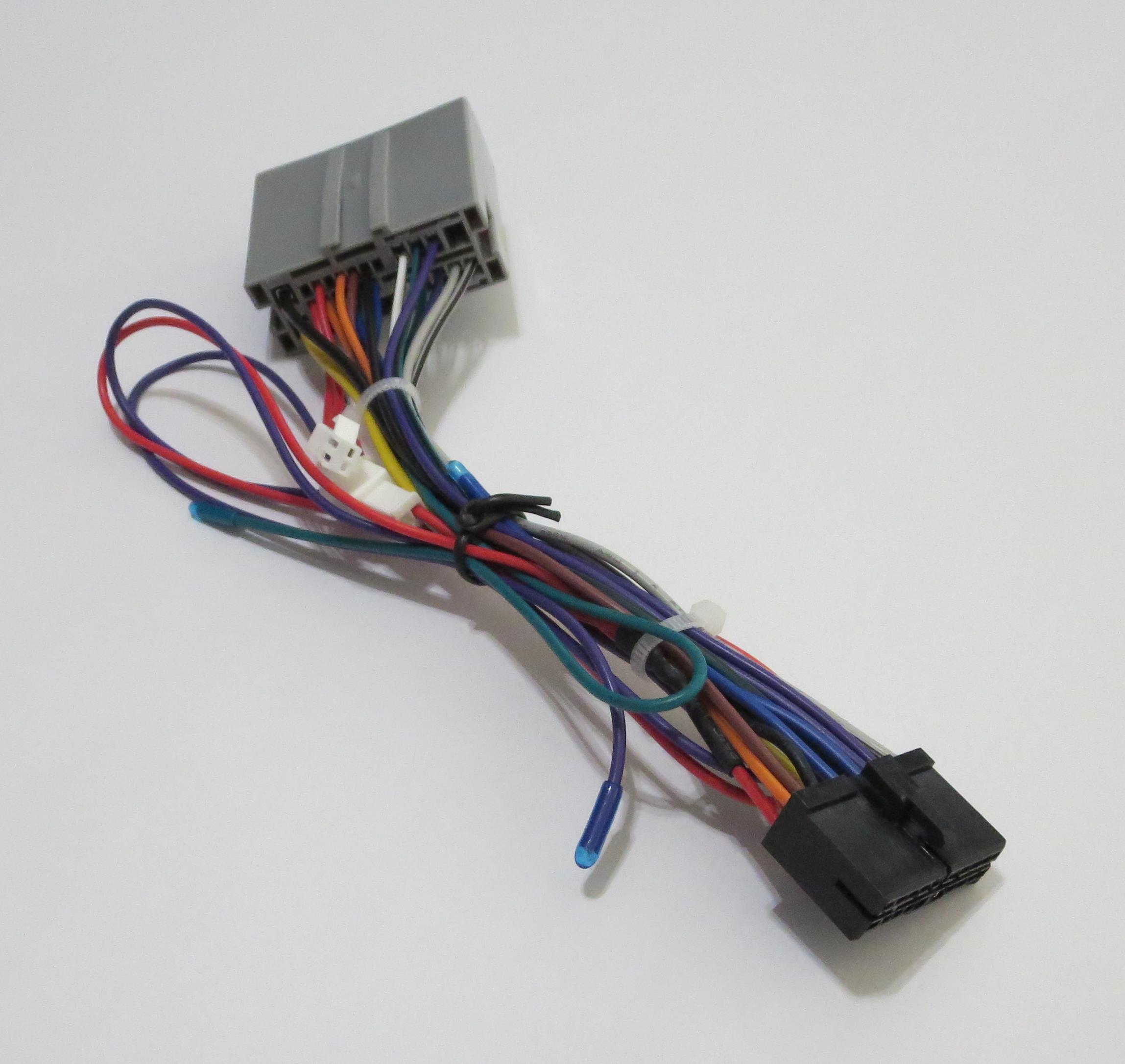

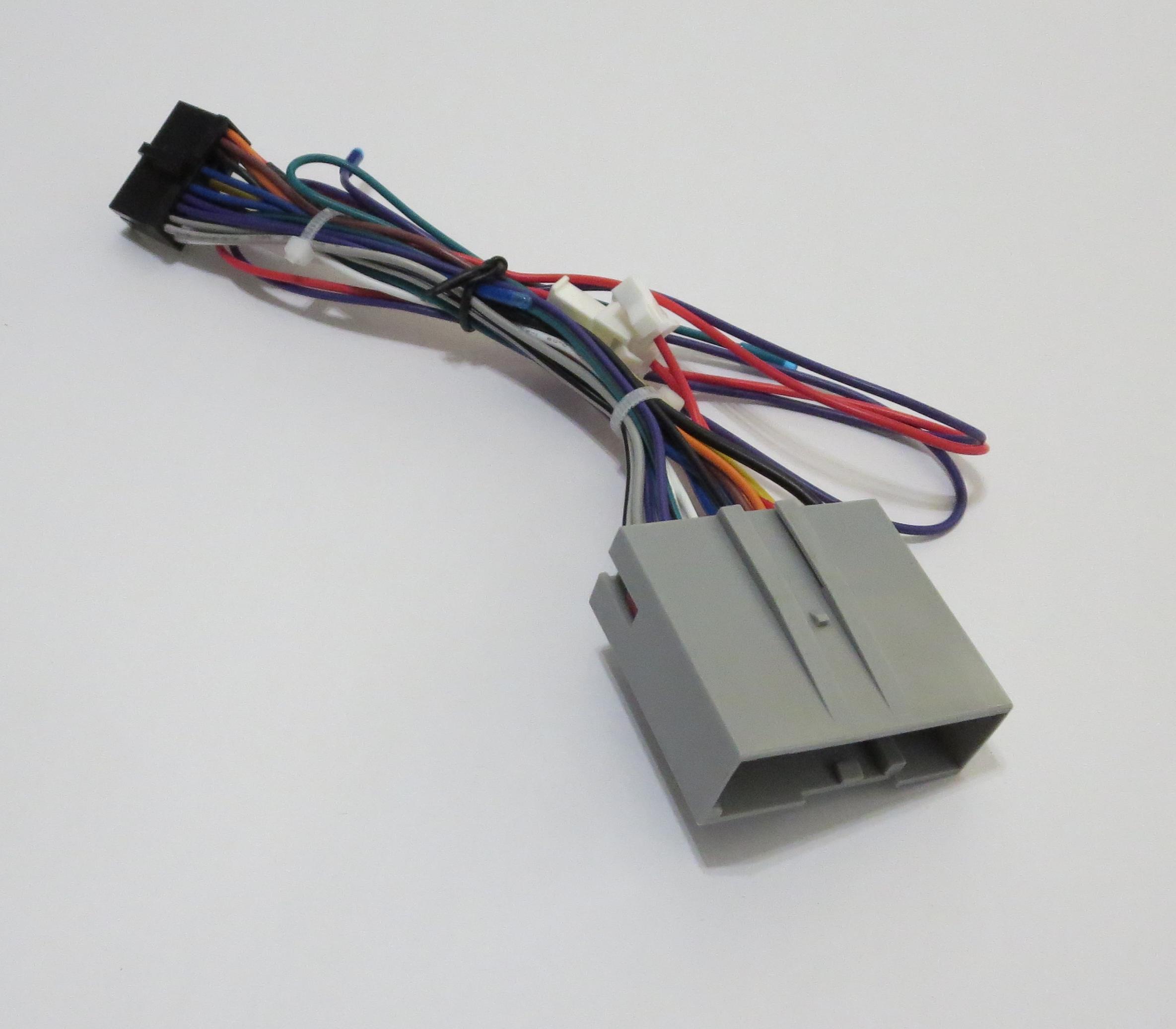

This harness is the simplest way to install an ATOTO F7 or S8 headunit in your Ford vehicle. It is pre-wired with the ATOTO connector on 1 end and the Ford connector on the other. In most cases, this adapter will allow you to retain the function of the steering wheel buttons since ATOTO radio units have an on-screen menu that will allow you to program in the function of each of the steering wheel buttons. Not directly compatible with amp systems like Shaker.

Installation:

1) Just connect both ends (to the ATOTO and to the Vehicle)
2) Configure the steering wheel buttons using the on-screen menu on the ATOTO headunit. (to select the function that each steering wheel button will produce on the headunit)
3) Connect the E-brake signal (Reverse is needed only if you will be connecting a backup camera)

Purchase:

Price: $29.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Ford
2009-2013 Econoline
2008-2011 Escape
2004-2014 Expedition
2004-2010 Explorer (Sometimes the 2004 and 2005 Explorer use this adapter: AHH-70-1771 - Please Check Which Connector youve got in your vehicle.)
2005-2012 Flex
2004-2010 F-150
2005-2010 F-250/350 SUPER DUTY
2006-2007 Five Hundred
2005-2011 Focus
2004-2007 Freestar
2005-2007 Freestyle
2006-2012 Fusion
2005-2013 Mustang

(Typically the Mustang will use the alternate power feed. This is a separate white 2-pin connector that must be connected. See the included instructions or contact support at inquiry@autoharnesshouse.com for details)

Hyundai
2006-2008 Sonata

Lincoln
2003-2005 Aviator
2006-2010 Town Car

Mazda
2008-2010 Tribute

Mercury
2003-2011 Grand Marquis
2008-2011 Mariner
2005-2007 Montego
2004-2007 Monterey
2006-2010 Mountaineer
2004-2005 Mountaineer (with factory subwoofer)
2006-2009 Milan
2008-2009 Sable

ATOTO Headunit Compatibility

ATOTO uses 2 different headunit connectors. Please make sure you have the right one for the unit that you're installing!
DOES NOT FIT the 7-inch or 9-inch ATOTO A6 PF (A6G2A7PF, A6G2B7PF, A6G2C7PF, A6G209PF) - EXCEPT the 10.1-inch A6 PF, which DOES fit this adapter, listed below
ATOTO A6 (will fit older A6 models only)

ATOTO F7WE
ATOTO F7 XE
ATOTO F7 (All other Variations)

DOES NOT FIT the ATOTO S8 Lite or the ATOTO S8 MS models - with ONE exception, listed below, which DOES fit this adapter!
ATOTO S8 MS sold as S8G1104MS, S8EG1104MSB or S81104MSFX - one radio, three part numbers depending on where you bought it (this is the 10-inch floating-screen S8 MS). Check the model number printed on your radio or shown on your receipt.
ATOTO A6 PF 10.1-inch floating screen - A6G110PF (despite the A6 PF name, this one uses the standard 20-pin connector, unlike the 7-inch and 9-inch A6 PF)
ATOTO A5L 10-inch floating screen - A5LG110T and A5LG110PT (the 7-inch A5L does NOT fit - it uses the other connector)
ATOTO S8 10.1-inch S8G1104PRN
ATOTO S8UP 10-inch (Sold On Amazon!)
DOES NOT FIT the newest ATOTO lines that switched to a 16-pin harness - the V10 (V10G110OC) and the S8 Gen4 (S84G110PB). Quick check: this adapter is for radios that come with a 20-pin power harness. If yours came with a 16-pin harness, email us before you order and we will tell you which adapter you need.
ATOTO X10 9-inch (Sold by AutoHarnessHouse - Lower price than Amazon!)
ATOTO X10 10-inch (Sold by AutoHarnessHouse - Great Deal!) - also X10G110E, X10G110ESM and X10G110PESM (the 10.1-inch X10 with the passenger / co-pilot screen)
ATOTO X10 12.5-inch X10G225E

We carry a compatible adapter for these other ATOTO models. Click here for the ATOTO A6PF / S8 Lite / S8 MS version of this same adapter. Please email us or check out the Similar items below.
