40-pin Wiring Adapter to Retain Rear Camera - Fits 2018+ Nissan Radios

Item Number: AHH-7559

This wiring harness retains the factory reverse camera on Nissan vehicles whose factory radio has the camera on the 40-pin connector - the 2018 and newer display audio, touchscreen and navigation radios on most models. Earlier navigation radios usually use the 24-pin adapter and earlier display audio radios the 32-pin adapter.

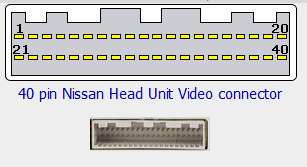

Built to order for your vehicle. Nissan used the same white 40-pin connector on several different factory radios, and the camera video, camera power and reverse pins are not in the same positions on all of them. We wire each adapter for the exact vehicle, so please enter your year, model, trim and radio type (navigation or not, screen size, Bose or not) in the buy box. If you order the wrong connector size we will build the correct one for you.

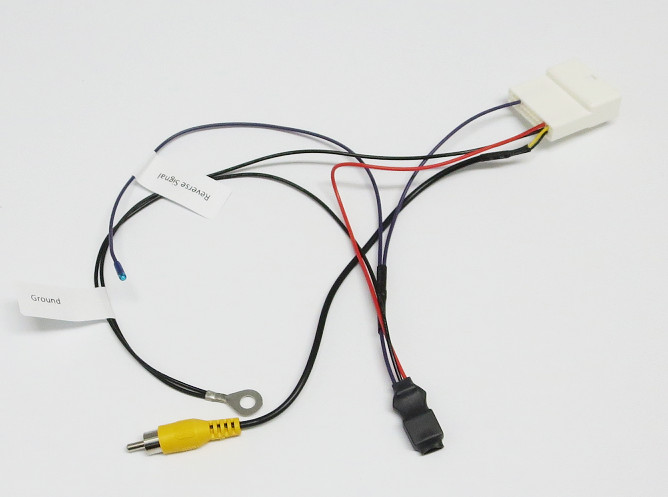

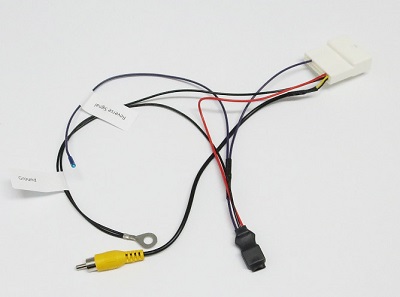

The camera keeps working exactly as it did with the factory radio: the adapter supplies the camera's power, brings the video out on a standard RCA plug for your new head unit, and includes the reverse (camera trigger) lead. Nissan cameras are powered by the factory radio, so do not connect the camera directly to 12 volts.

CAN-H / CAN-L leads (cars with a multi-information display)
On Nissans with a multi-information display (MID) in the instrument cluster, the steering wheel audio buttons are not wired to the radio. They connect to the instrument cluster, which sends each button press to the radio over the vehicle's CAN bus. For these vehicles we add a labeled CAN-H / CAN-L lead pair to this adapter, taken from the factory radio connector.

These two leads are what a steering wheel control interface needs to read your buttons. With the AXXESS AXSWC-2, connect its CAN-H and CAN-L wires to this pair and its other wires to your new head unit as shown in the AXSWC-2 instructions, then let it auto-detect the vehicle. If your new radio learns steering wheel buttons on its own, check that it supports Nissan CAN steering controls - a plain resistive steering-wheel input cannot see these buttons.

We can wire it for you: order the AXXESS AXSWC-2 in the same order as this adapter and we will connect it to the CAN pair and to the main harness and label the remaining head-unit wires, so it plugs straight in at the car.

If your vehicle has no multi-information display, or its steering wheel buttons are wired to the 20-pin radio connector, the CAN pair is not needed and can simply be left insulated.

You can also check your vehicle in our Vehicle Wiring and Compatibility Database. Check out our Wiring Database for vehicle specific information:

Purchase:

Price: $52.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Nissan vehicles with the camera on the 40-pin radio connector
2018 Nissan Altima - with navigation; 2019-2024 Altima - all radios
2018-2024 Nissan Armada
2019-2021 Nissan Frontier - display audio without navigation; 2022-2024 Frontier - all radios
2017-2024 Nissan GT-R
2018-2024 Nissan Kicks - base radio and touchscreen
2011-2012 Nissan LEAF; 2017-2018 LEAF with navigation; 2019-2024 LEAF with the 8-inch touchscreen or navigation
2016-2023 Nissan Maxima
2017 Nissan Murano with navigation; 2018-2024 Murano - all radios
2019-2021 Nissan NV1500 / NV2500 / NV3500 - display audio without navigation
2020-2021 Nissan NV200
2017-2020 and 2022-2024 Nissan Pathfinder
2018-2024 Nissan Rogue
2019-2022 Nissan Rogue Sport
2019-2024 Nissan Sentra - base radio, 7-inch and 8-inch touchscreen
2019-2024 Nissan Titan and Titan XD
2018 Nissan Versa and Versa Note with touchscreen; 2019-2024 Versa - all radios
2023-2024 Nissan Z

Some of these models (Kicks, Sentra, Versa, LEAF) offered a base radio and a touchscreen radio that use the same 40-pin connector with different pin positions - tell us which one you have and we will build the adapter to match.
