Toyota Aftermarket Amplifier or Subwoofer Installation

Item Number: AHH-7879

Upgrade your OEM Toyota audio system by installing either an aftermarket in-line amplifier or an aftermarket subwoofer amplifier. Both upgrades require splicing speaker wires to connect audio signals to the aftermarket amplifier. This adapter harness will allow you to make this connection without damaging/splicing OEM wires.

These "Jumper harnesses" connect between the back of the OEM headunitand the wiring that goes to the speakers. This will allow splicing of these harnesses rather than cutting or tapping factory wiring.

What's included:

The 1987-2018 Toyota vehicles will require the following jumper harnesses:

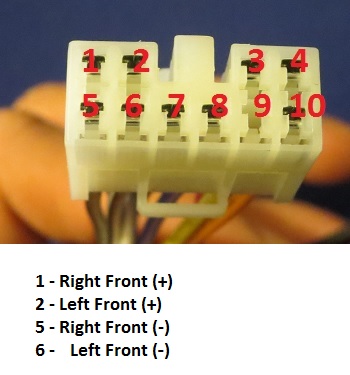

- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers

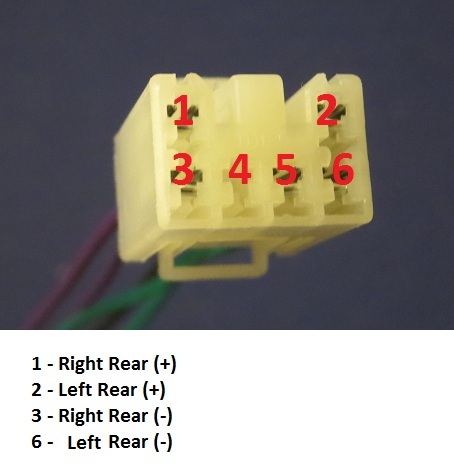

- 6-pin - This harness provides connections to the Rear Speakers

Installation:

-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:



The wiring on this adapter is also color coded. Here are the colors used for each of the wires:

Purchase:

Price: $40.00

Load Resistors

When installing an aftermarket amplifier or subwoofer, it is sometimes necessary to install load resistors! We've written this tech article to help you understand when these devices will be needed. Please click here for more information!

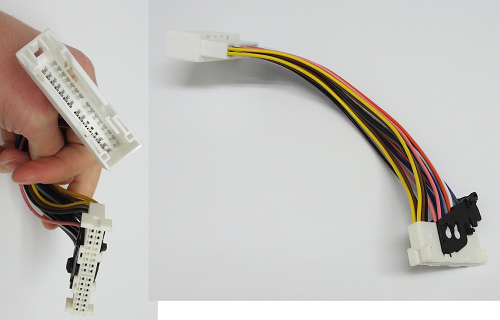

2023+ Toyota JBL vehicles - Amp Jumper Adapter

This adapter is designed to connect an aftermarket amplifier to a Toyota vehicle with the JBL system (usually a Tundra) or Subaru vehicle with the Harman Kardon system!
