This page will help you select the parts that you will need to install an aftermarket system in your Subaru.
If your model or year is not in the system yet, please contact us. We can put together a package for your specific case!
Please provide information about your vehicle:
28-pin Backup Camera Wiring adapter (With Steering Wheel button signals) for 2016+ Subaru vehicles
Item Number: 1601-8
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit. Below is the set of harnesses that connect to the factory wiring harness on a 2016+ Subaru. These harnesses will provide wire connections for an aftermarket headunit without splicing wires or cutting the factory harness.
Harman Kardon Note: If your vehicle has the Harman Kardon audio package, installation of an aftermarket headunit will require additional hardware to replace/bypass the factory Harman Kardon amplifier. Please contact us for details.
The backup camera interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit.
28-pin Harness:
The 28-pin harness will retain:
-Backup camera functionality
-Auxiliary inputs(***Analog audio input only. USB is not included***)
-Reverse Gear Signal
-Vehicle Speed Signal
-E-brake Signal
-Steering Wheel control signals will be provided via a connector for the Maestro SW. Integration will require an iDatalink Maestro or similar steering wheel control integration unit. (The AXXESS ASWC-1 is not recommended for this application - More Info) The Maestro SW will be plug and play!
Need a 3.5mm cable for your steering wheel controls? If your headunit has the capability to recognize the steering wheel controls without an interface module, such as the iDatalink Maestro, you may need a cable to connect between the 3.5mm jack on the headunit and the 28-pin harness. The 3.5mm jack for connecting to the back of the new headunit can be purchased HERE.
28-pin harness: $47
Other Recommended Parts:
Metra 70-1761:
Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.
Option 1 (Standard): Metra 70-1761 Metra 70-1761: $6 |
|
Option 2 (Upgrade): Direct wire harness for Pioneer Headunits The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $17 |
|
Option 3 (Upgrade with E-brake bypass): Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE) The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit) Direct wire harness: $23 |
Please select EITHER Option 1 or Option 2. You only need one of these.
Option 1 (Standard): Metra 70-1761 Metra 70-1761: $6 |
|
Option 2 (Upgrade): Direct wire harness for Sony Headunits The AHH-70-1761SO harness is the simplest way to install a Sony headunit in your vehicle. It is pre-wired with the Sony connector on 1 end and the Sony connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $20 |
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
USB retention harness:
The USB retention harness will retain the USB port in the console.
USB retention harness: $22
AM/FM adapter harness:
The AM/FM antenna adapter will retain the AM/FM radio antenna.
AM/FM adapter: $19
These harnesses are 100% plug and play. No splicing the stock wiring harness.
What functionality is not retained?
-OEM Harman Kardon amplifier
-Satellite/XM radio adapter is sold separately (See detailed listing here)
-OEM Bluetooth microphone
2015 BRZ with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your BRZ? Aftermarket installation kits for the 2015 BRZ are sold on this page.
2015 BRZ without Navigation
Invalid Selection - The 2015 BRZ was not offered without navigation. Please contact us for details.
2014 BRZ with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your BRZ? Aftermarket installation kits for the 2014 BRZ are sold on this page.
2014 BRZ without Navigation
Invalid Selection - The 2014 BRZ was not offered without navigation. Please contact us for details.
2013 BRZ with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your BRZ? Aftermarket installation kits for the 2013 BRZ are sold on this page.
2013 BRZ without Navigation
Invalid Selection - The 2013 BRZ was not offered without navigation. Please contact us for details.
2012 BRZ with Navigation
Invalid Selection - 2013 is the first model year of the BRZ. Please contact us for details.
2012 BRZ without Navigation
Invalid Selection - 2013 is the first model year of the BRZ. Please contact us for details.
2011 BRZ with Navigation
Invalid Selection - 2013 is the first model year of the BRZ. Please contact us for details.
2011 BRZ without Navigation
Invalid Selection - 2013 is the first model year of the BRZ. Please contact us for details.
2010 BRZ with Navigation
Invalid Selection - 2013 is the first model year of the BRZ. Please contact us for details.
2010 BRZ without Navigation
Invalid Selection - 2013 is the first model year of the BRZ. Please contact us for details.
2015 Ascent with Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2015 Ascent without Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2014 Ascent with Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2014 Ascent without Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2013 Ascent with Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2013 Ascent without Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2012 Ascent with Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2012 Ascent without Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2011 Ascent with Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2011 Ascent without Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2010 Ascent with Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2010 Ascent without Navigation
Invalid Selection - 2018 is the first model year of the Ascent. Please contact us for details.
2015 WRX with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your WRX? Aftermarket installation kits for the 2015 WRX are sold on this page.
2015 WRX without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2015 WRX:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2015 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Pioneer Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552PS
Installing a Pioneer aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2015 WRX:

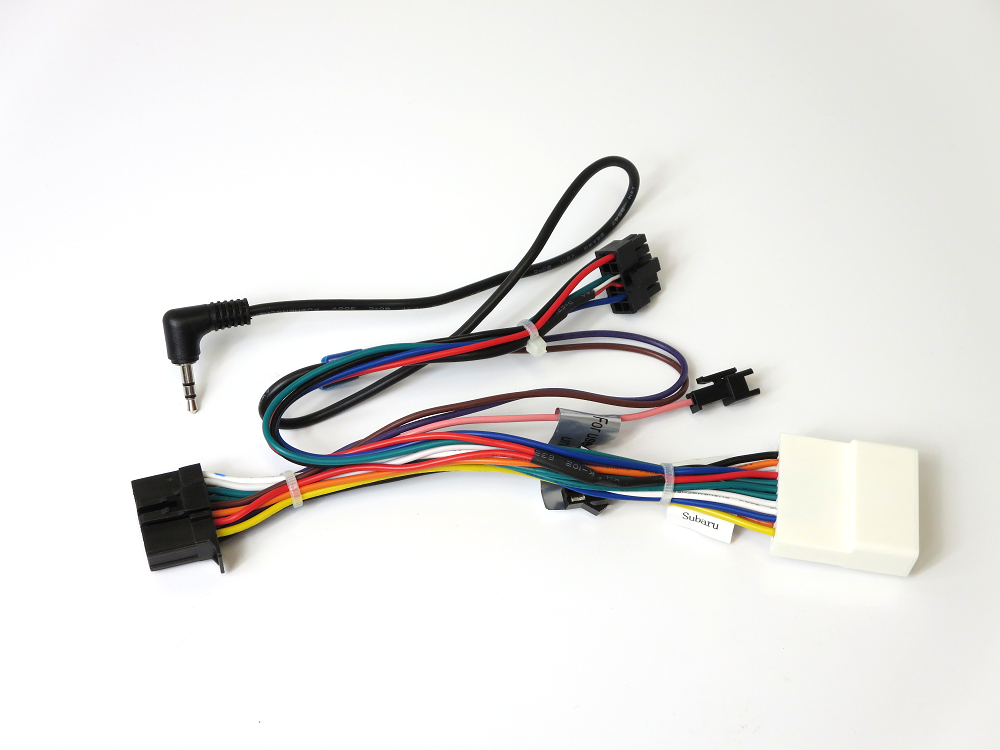

-20-pin harness with Pioneer Connector (Fully plug and play with Pioneer Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2015 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
AHH-70-7552PS (Pioneer Direct Wire Adapter with ASWC-1 connector pre-wired)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552PS.html
Price:$28

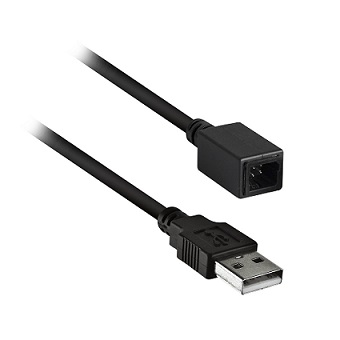

Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Axxess ASWC-1 Steering Wheel Control Adapter
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Sony Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552SO
Installing a Sony aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2015 WRX:
-20-pin harness with Sony Connector (Fully plug and play with Sony Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
Note that the 2015 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
AHH-70-7552SO (Sony Direct Wire Adapter)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552SO.html
Price:$24
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Please contact us if this form does not fit your needs.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
2014 WRX with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your WRX? Aftermarket installation kits for the 2014 WRX are sold on this page.
2014 WRX without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2014 WRX:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2014 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Pioneer Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552PS
Installing a Pioneer aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2014 WRX:
-20-pin harness with Pioneer Connector (Fully plug and play with Pioneer Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2014 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
AHH-70-7552PS (Pioneer Direct Wire Adapter with ASWC-1 connector pre-wired)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552PS.html
Price:$28
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Axxess ASWC-1 Steering Wheel Control Adapter
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Sony Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552SO
Installing a Sony aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2014 WRX:
-20-pin harness with Sony Connector (Fully plug and play with Sony Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
Note that the 2014 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
AHH-70-7552SO (Sony Direct Wire Adapter)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552SO.html
Price:$24
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Please contact us if this form does not fit your needs.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
2013 WRX with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your WRX? Aftermarket installation kits for the 2013 WRX are sold on this page.
2013 WRX without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2013 WRX:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2013 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Pioneer Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552PS
Installing a Pioneer aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2013 WRX:
-20-pin harness with Pioneer Connector (Fully plug and play with Pioneer Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2013 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
Purchase:
AHH-70-7552PS (Pioneer Direct Wire Adapter with ASWC-1 connector pre-wired)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552PS.html
Price:$28
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Axxess ASWC-1 Steering Wheel Control Adapter
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Sony Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552SO
Installing a Sony aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2013 WRX:
-20-pin harness with Sony Connector (Fully plug and play with Sony Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
Note that the 2013 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
Purchase:
AHH-70-7552SO (Sony Direct Wire Adapter)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552SO.html
Price:$24
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Please contact us if this form does not fit your needs.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
2012 WRX with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your WRX? Aftermarket installation kits for the 2012 WRX are sold on this page.
2012 WRX without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2012 WRX:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2012 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Pioneer Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552PS
Installing a Pioneer aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2012 WRX:
-20-pin harness with Pioneer Connector (Fully plug and play with Pioneer Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Note that the 2012 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
Purchase:
AHH-70-7552PS (Pioneer Direct Wire Adapter with ASWC-1 connector pre-wired)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552PS.html
Price:$28
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Axxess ASWC-1 Steering Wheel Control Adapter
Please contact us if this form does not fit your needs.
20-pin Subaru Direct wire harness for Sony Headunits (2007-up Non-Navigation vehicles)
Item Number: AHH-70-7552SO
Installing a Sony aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2012 WRX:
-20-pin harness with Sony Connector (Fully plug and play with Sony Headunits)
-16-pin harness wired with RCA connectors or 3.5mm plug for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
Note that the 2012 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
Purchase:
AHH-70-7552SO (Sony Direct Wire Adapter)
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/AHH-70-7552SO.html
Price:$24
Subaru USB adapter
Price:$1716-pin adapter
The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:
Gray - Reverse signal (Signal is NOT present on the WRX)
Green - E-brake signal (Signal is NOT present on the WRX)
Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input
Option 2:
3.5mm plug - Stereo Auxiliary input
Please contact us if this form does not fit your needs.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
2011 WRX with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2011 WRX? The 14-pin adapter is the correct connector for this vehicle. Direct wire adapters are available for Pioneer, Sony, and ATOTO headunits.
Are you installing a Pioneer Headunit? The Pioneer Direct Wire Adapter (AHH-70-8901) will directly connect between your Pioneer unit and your Subaru wiring.
Are you installing a Sony Headunit? The Sony Direct Wire Adapter (AHH-70-8901SO) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
For all other headunit brands, the 14-pin connector with wires (AHH-JDM2) provides the connections needed for your installation.
Please contact us if this form does not fit your needs.
2011 WRX without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2011 WRX:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Note that the 2011 WRX does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2010 WRX with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2010 WRX? The 14-pin adapter is the correct connector for this vehicle. Direct wire adapters are available for Pioneer, Sony, and ATOTO headunits.
Are you installing a Pioneer Headunit? The Pioneer Direct Wire Adapter (AHH-70-8901) will directly connect between your Pioneer unit and your Subaru wiring.
Are you installing a Sony Headunit? The Sony Direct Wire Adapter (AHH-70-8901SO) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
For all other headunit brands, the 14-pin connector with wires (AHH-JDM2) provides the connections needed for your installation.
Please contact us if this form does not fit your needs.
2010 WRX without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2010 WRX? Aftermarket installation harnesses for the 2010 WRX are available.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and your Subaru wiring.
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Please contact us if this form does not fit your needs.
2015 Impreza and Crosstrek with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit. Below is the set of harnesses that connect to the factory wiring harness on a 2015 Impreza/Crosstrek. These harnesses will provide wire connections for an aftermarket headunit without splicing wires or cutting the factory harness.
Harman Kardon Note: If your 2015 Impreza/Crosstrek has the Harman Kardon audio package, installation of an aftermarket headunit will require additional hardware to replace/bypass the factory Harman Kardon amplifier. Please contact us for details.
The backup camera interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit.
What Wiring Do I Need?
The following adapters are recommended for installation of an aftermarket headunit in a 2015 Subaru Impreza or Crosstrek:
28-pin Harness:
The 28-pin harness will retain:
-Backup camera functionality
-Auxiliary inputs(***Analog audio input only. USB is not included***)
-Reverse Gear Signal
-Vehicle Speed Signal
-E-brake Signal
-Steering Wheel control signals will be provided a connector for the Maestro SW module. The Maestro SW unit is plug and play with this adapter. Integration will require an iDatalink Maestro or similar steering wheel control integration unit. (The AXXESS ASWC-1 is not recommended for this application - More Info)
Need a 3.5mm cable for your steering wheel controls? If your headunit has the capability to recognize the steering wheel controls without an interface module, such as the iDatalink Maestro, you may need a cable to connect between the 3.5mm jack on the headunit and the 28-pin harness. The 3.5mm jack for connecting to the back of the new headunit can be purchased HERE.
28-pin harness: $47
Metra 70-1761:
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power
Metra 70-1761: $6
Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.
Option 1 (Standard): Metra 70-1761 Metra 70-1761: $6 |
|
Option 2 (Upgrade): Direct wire harness for Pioneer Headunits The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $17 |
|
Option 3 (Upgrade with E-brake bypass): Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE) The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit) Direct wire harness: $23 |
Please select EITHER Option 1 or Option 2. You only need one of these.
Option 1 (Standard): Metra 70-1761 Metra 70-1761: $6 |
|
Option 2 (Upgrade): Direct wire harness for Sony Headunits The AHH-70-1761SO harness is the simplest way to install a Sony headunit in your vehicle. It is pre-wired with the Sony connector on 1 end and the Sony connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $20 |
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
USB retention harness:
The USB retention harness will retain the USB port in the console.
USB retention harness: $22
Please contact us for details prior to purchase.
AM/FM adapter harness:
The AM/FM antenna adapter will retain the AM/FM radio antenna.
AM/FM adapter: $11
These harnesses are 100% plug and play. No splicing the stock wiring harness.
Please contact us if this form does not fit your needs.
What functionality is not retained?
-OEM Harman Kardon amplifier
-Satellite/XM radio adapter is sold separately (See detailed listing here)
-OEM Bluetooth microphone
2015 Impreza and Crosstrek without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit. Below is the set of harnesses that connect to the factory wiring harness on a 2015 Impreza/Crosstrek. These harnesses will provide wire connections for an aftermarket headunit without splicing wires or cutting the factory harness.
Harman Kardon Note: If your 2015 Impreza/Crosstrek has the Harman Kardon audio package, installation of an aftermarket headunit will require additional hardware to replace/bypass the factory Harman Kardon amplifier. Please contact us for details.
The backup camera interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit.
What Wiring Do I Need?
The following adapters are recommended for installation of an aftermarket headunit in a 2015 Subaru Impreza or Crosstrek:
28-pin Harness:
The 28-pin harness will retain:
-Backup camera functionality
-Auxiliary inputs(***Analog audio input only. USB is not included***)
-Reverse Gear Signal
-Vehicle Speed Signal
-E-brake Signal
-Steering Wheel control signals will be provided a connector for the Maestro SW module. The Maestro SW unit is plug and play with this adapter. Integration will require an iDatalink Maestro or similar steering wheel control integration unit. (The AXXESS ASWC-1 is not recommended for this application - More Info)
Need a 3.5mm cable for your steering wheel controls? If your headunit has the capability to recognize the steering wheel controls without an interface module, such as the iDatalink Maestro, you may need a cable to connect between the 3.5mm jack on the headunit and the 28-pin harness. The 3.5mm jack for connecting to the back of the new headunit can be purchased HERE.
28-pin harness: $47
Metra 70-1761:
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power
Metra 70-1761: $6
Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.
Option 1 (Standard): Metra 70-1761 Metra 70-1761: $6 |
|
Option 2 (Upgrade): Direct wire harness for Pioneer Headunits The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $17 |
|
Option 3 (Upgrade with E-brake bypass): Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE) The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit) Direct wire harness: $23 |
Please select EITHER Option 1 or Option 2. You only need one of these.
Option 1 (Standard): Metra 70-1761 Metra 70-1761: $6 |
|
Option 2 (Upgrade): Direct wire harness for Sony Headunits The AHH-70-1761SO harness is the simplest way to install a Sony headunit in your vehicle. It is pre-wired with the Sony connector on 1 end and the Sony connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $20 |
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
USB retention harness (only fits 6.2" models please contact us for 7.0" models):
The USB retention harness will retain the USB port in the console.
USB retention harness: $22
Please contact us for details prior to purchase.
AM/FM adapter harness:
The AM/FM antenna adapter will retain the AM/FM radio antenna.
AM/FM adapter: $11
These harnesses are 100% plug and play. No splicing the stock wiring harness.
Please contact us if this form does not fit your needs.
What functionality is not retained?
-OEM Harman Kardon amplifier
-Satellite/XM radio adapter is sold separately (See detailed listing here)
-OEM Bluetooth microphone
2014 Impreza and Crosstrek with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Impreza or Crosstrek? Aftermarket installation kits for the 2014 Impreza/Crosstrek are sold on this page.
2014 Impreza and Crosstrek without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2014 Impreza/Crosstrek:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections, Reverse signal, and E-brake signal
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
-Backup camera retention harness (Only applicable for cars where the OEM backup camera DISPLAYS ON THE HEADUNIT)
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| OEM Backup Camera retention harness Will only fit cars where the OEM backup camera DISPLAYS ON THE HEADUNIT (More Info) Price:$41 (Link to confirmation page) |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2013 Impreza and Crosstrek with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Impreza or Crosstrek? Aftermarket installation kits for the 2013 Impreza/Crosstrek are sold on this page.
2013 Impreza and Crosstrek without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2013 Impreza/Crosstrek:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections, Reverse signal, and E-brake signal
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
-Backup camera retention harness (Only applicable for cars where the OEM backup camera DISPLAYS ON THE HEADUNIT)
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| OEM Backup Camera retention harness Will only fit cars where the OEM backup camera DISPLAYS ON THE HEADUNIT (More Info) Price:$41 (Link to confirmation page) |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2012 Impreza and Crosstrek with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Impreza or Crosstrek? Aftermarket installation kits for the 2012 Impreza/Crosstrek are sold on this page.
2012 Impreza and Crosstrek without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2012 Impreza/Crosstrek:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections, Reverse signal, and E-brake signal
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
-Backup camera retention harness (Only applicable for cars where the OEM backup camera DISPLAYS ON THE HEADUNIT)
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| OEM Backup Camera retention harness Will only fit cars where the OEM backup camera DISPLAYS ON THE HEADUNIT (More Info) Price:$41 (Link to confirmation page) |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2011 Impreza and Crosstrek with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2011 Impreza/Crosstrek? The 14-pin adapter is the correct connector for this vehicle. Direct wire adapters are available for Pioneer, Sony, and ATOTO headunits.
Are you installing a Pioneer Headunit? The Pioneer Direct Wire Adapter (AHH-70-8901) will directly connect between your Pioneer unit and your Subaru wiring.
Are you installing a Sony Headunit? The Sony Direct Wire Adapter (AHH-70-8901SO) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
For all other headunit brands, the 14-pin connector with wires (AHH-JDM2) provides the connections needed for your installation.
Please contact us if this form does not fit your needs.
2011 Impreza and Crosstrek without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2011 Impreza/Crosstrek:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
-Backup camera retention harness (Only applicable for cars where the OEM backup camera DISPLAYS ON THE HEADUNIT)
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Note that the 2011 Impreza/Crosstrek does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2010 Impreza and Crosstrek with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2010 Impreza/Crosstrek? The 14-pin adapter is the correct connector for this vehicle. Direct wire adapters are available for Pioneer, Sony, and ATOTO headunits.
Are you installing a Pioneer Headunit? The Pioneer Direct Wire Adapter (AHH-70-8901) will directly connect between your Pioneer unit and your Subaru wiring.
Are you installing a Sony Headunit? The Sony Direct Wire Adapter (AHH-70-8901SO) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
For all other headunit brands, the 14-pin connector with wires (AHH-JDM2) provides the connections needed for your installation.
Please contact us if this form does not fit your needs.
2010 Impreza and Crosstrek without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2010 Impreza/Crosstrek? Aftermarket installation harnesses for the 2010 Impreza/Crosstrek are available.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and your Subaru wiring.
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Please contact us if this form does not fit your needs.
2015 Legacy and Outback with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit. Below is the set of harnesses that connect to the factory wiring harness on a 2015 Legacy/Outback. These harnesses will provide wire connections for an aftermarket headunit without splicing wires or cutting the factory harness.
Harman Kardon Note: If your 2015 Legacy/Outback has the Harman Kardon audio package, installation of an aftermarket headunit will require additional hardware to replace/bypass the factory Harman Kardon amplifier. Please contact us for details.
The backup camera interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit.
What Wiring Do I Need?
The following adapters are recommended for installation of an aftermarket headunit in a 2015 Subaru Legacy or Outback:
28-pin Harness:
The 28-pin harness will retain:
-Backup camera functionality
-Auxiliary inputs(***Analog audio input only. USB is not included***)
-Reverse Gear Signal
-Vehicle Speed Signal
-E-brake Signal
-Steering Wheel control signals will be provided a connector for the Maestro SW module. The Maestro SW unit is plug and play with this adapter. Integration will require an iDatalink Maestro or similar steering wheel control integration unit. (The AXXESS ASWC-1 is not recommended for this application - More Info)
Need a 3.5mm cable for your steering wheel controls? If your headunit has the capability to recognize the steering wheel controls without an interface module, such as the iDatalink Maestro, you may need a cable to connect between the 3.5mm jack on the headunit and the 28-pin harness. The 3.5mm jack for connecting to the back of the new headunit can be purchased HERE.
28-pin harness: $47
Metra 70-1761:
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install 100% plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring. You will not need both the Metra 70-1761 and the Pioneer Direct Wire Harness...choose one (The direct wire harness does everything that the Metra 70-1761 will do). CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install 100% plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring. You will not need both the Metra 70-1761 and the Sony Direct Wire Harness...choose one (The direct wire harness does everything that the Metra 70-1761 will do). CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Metra 70-1761: $6
USB retention harness:
The USB retention harness will retain the USB port in the console.
USB retention harness: $22
Please contact us for details prior to purchase.
AM/FM adapter harness:
The AM/FM antenna adapter will retain the AM/FM radio antenna.
AM/FM adapter: $11
These harnesses are 100% plug and play. No splicing the stock wiring harness.
Please contact us if this form does not fit your needs.
What functionality is not retained?
-OEM Harman Kardon amplifier
-Satellite/XM radio adapter is sold separately (See detailed listing here)
-OEM Bluetooth microphone
2015 Legacy and Outback without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit. Below is the set of harnesses that connect to the factory wiring harness on a 2015 Legacy/Outback. These harnesses will provide wire connections for an aftermarket headunit without splicing wires or cutting the factory harness.
Harman Kardon Note: If your 2015 Legacy/Outback has the Harman Kardon audio package, installation of an aftermarket headunit will require additional hardware to replace/bypass the factory Harman Kardon amplifier. Please contact us for details.
The backup camera interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit.
What Wiring Do I Need?
The following adapters are recommended for installation of an aftermarket headunit in a 2015 Subaru Legacy or Outback:
28-pin Harness:
The 28-pin harness will retain:
-Backup camera functionality
-Auxiliary inputs(***Analog audio input only. USB is not included***)
-Reverse Gear Signal
-Vehicle Speed Signal
-E-brake Signal
-Steering Wheel control signals will be provided a connector for the Maestro SW module. The Maestro SW unit is plug and play with this adapter. Integration will require an iDatalink Maestro or similar steering wheel control integration unit. (The AXXESS ASWC-1 is not recommended for this application - More Info)
Need a 3.5mm cable for your steering wheel controls? If your headunit has the capability to recognize the steering wheel controls without an interface module, such as the iDatalink Maestro, you may need a cable to connect between the 3.5mm jack on the headunit and the 28-pin harness. The 3.5mm jack for connecting to the back of the new headunit can be purchased HERE.
28-pin harness: $47
Metra 70-1761:
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install 100% plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring. You will not need both the Metra 70-1761 and the Pioneer Direct Wire Harness...choose one (The direct wire harness does everything that the Metra 70-1761 will do). CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install 100% plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring. You will not need both the Metra 70-1761 and the Sony Direct Wire Harness...choose one (The direct wire harness does everything that the Metra 70-1761 will do). CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Metra 70-1761: $6
USB retention harness (only fits 6.2" models please contact us for 7.0" models):
The USB retention harness will retain the USB port in the console.
USB retention harness: $22
Please contact us for details prior to purchase.
AM/FM adapter harness:
The AM/FM antenna adapter will retain the AM/FM radio antenna.
AM/FM adapter: $11
These harnesses are 100% plug and play. No splicing the stock wiring harness.
Please contact us if this form does not fit your needs.
What functionality is not retained?
-OEM Harman Kardon amplifier
-Satellite/XM radio adapter is sold separately (See detailed listing here)
-OEM Bluetooth microphone
2014 Legacy and Outback with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Legacy or Outback? Aftermarket installation kits for the 2014 Legacy/Outback are sold on this page.
2014 Legacy and Outback without Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2013 Legacy and Outback with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Legacy or Outback? Aftermarket installation kits for the 2013 Legacy/Outback are sold on this page.
2013 Legacy and Outback without Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2012 Legacy and Outback with Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2012 Legacy and Outback without Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2011 Legacy and Outback with Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2011 Legacy and Outback without Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2010 Legacy and Outback with Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2010 Legacy and Outback without Navigation
This item is available but we need more information to provide you with an accurate list of parts. Please visit our wiring database page HERE for an updated list of the parts that you'll need. You can also email us for a clarification if you would like!
2015 Forester with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Forester? Aftermarket installation kits for the 2015 Forester are sold on this page.
2015 Forester without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2015 Forester:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface and VSS wire)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Note that the 2015 Forester does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
There is an optional harness available to relocate the OEM backup camera image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2014 Forester with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Forester? Aftermarket installation kits for the 2014 Forester are sold on this page.
2014 Forester without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2014 Forester:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Note that the 2014 Forester does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
There is an optional harness available to relocate the OEM backup camera (if applicable) image from the Multi-function display (MFD) to the aftermarket headunit. See details here: https://www.autoharnesshouse.com/81491_rec.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| OEM Backup Camera retention harness Will only fit cars where the OEM backup camera DISPLAYS ON THE HEADUNIT (More Info) Price:$41 (Link to confirmation page) |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2013 Forester with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Forester? Aftermarket installation kits for the 2013 Forester are sold on this page.
2013 Forester without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2013 Forester:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Note that the 2013 Forester does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| OEM Backup Camera retention harness Will only fit cars where the OEM backup camera DISPLAYS ON THE HEADUNIT (More Info) Price:$41 (Link to confirmation page) |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2012 Forester with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your Forester? Aftermarket installation kits for the 2012 Forester are sold on this page.
2012 Forester without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? These harnesses maintain many of the features of your stock unit. Here are the parts that will be required for your 2012 Forester:
-20-pin harness wired with connector for ASWC-1 (Metra 70-7552 with steering wheel switch interface)
-16-pin harness wired with RCA connectors for the auxiliary input connections
-USB adapter to retain functionality of the USB port in the console
-Axxess ASWC-1 Steering Wheel Control Adapter
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and the your Subaru wiring.
You will not need both the 20-pin harness and the Pioneer Direct Wire Harness...choose one . CLICK HERE FOR MORE INFORMATION!
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
You will not need both the 20-pin harness and the Sony Direct Wire Harness...choose one. CLICK HERE FOR MORE INFORMATION!
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Note that the 2012 Forester does not have the Reverse or E-brake signals available in the audio harness. Some Subaru models have this signal on pin 15 and pin 16 of the 16-pin connector. The 16-pin harness will be provided with non-functional wire leads in these positions. Please disregard these additional wires.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Purchase:
| Aftermarket Headunit Installation Kit - 20-pin and 16-pin harnesses (Does not include USB adapter. See listing below.) Price:$30($32 for Harman Kardon vehicles) |
| Aftermarket Headunit Installation Kit - USB adapter Price:$17 |
| OEM Backup Camera retention harness Will only fit cars where the OEM backup camera DISPLAYS ON THE HEADUNIT (More Info) Price:$41 (Link to confirmation page) |
| Axxess ASWC-1 Steering Wheel Control Adapter |
Please contact us if this form does not fit your needs.
2011 Forester with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2011 Forester? The 14-pin adapter is the correct connector for this vehicle. Direct wire adapters are available for Pioneer, Sony, and ATOTO headunits.
Are you installing a Pioneer Headunit? The Pioneer Direct Wire Adapter (AHH-70-8901) will directly connect between your Pioneer unit and your Subaru wiring.
Are you installing a Sony Headunit? The Sony Direct Wire Adapter (AHH-70-8901SO) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
For all other headunit brands, the 14-pin connector with wires (AHH-JDM2) provides the connections needed for your installation.
Please contact us if this form does not fit your needs.
2011 Forester without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2011 Forester? Aftermarket installation harnesses for the 2011 Forester are available.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and your Subaru wiring.
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Please contact us if this form does not fit your needs.
2010 Forester with Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2010 Forester? The 14-pin adapter is the correct connector for this vehicle. Direct wire adapters are available for Pioneer, Sony, and ATOTO headunits.
Are you installing a Pioneer Headunit? The Pioneer Direct Wire Adapter (AHH-70-8901) will directly connect between your Pioneer unit and your Subaru wiring.
Are you installing a Sony Headunit? The Sony Direct Wire Adapter (AHH-70-8901SO) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
For all other headunit brands, the 14-pin connector with wires (AHH-JDM2) provides the connections needed for your installation.
Please contact us if this form does not fit your needs.
2010 Forester without Navigation
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your 2010 Forester? Aftermarket installation harnesses for the 2010 Forester are available.
The full details page, including installation information for these harnesses is provided here:
https://www.autoharnesshouse.com/49021.html
Are you Installing a Pioneer Headunit? If you are installing a Pioneer, we can make your install more plug and play. The Pioneer Direct Wire Harness (Sold Here) will directly connect between your Pioneer unit and your Subaru wiring.
Are you Installing a Sony Headunit? If you are installing a Sony, we can make your install more plug and play. The Sony Direct Wire Harness (Sold Here) will directly connect between your Sony unit and your Subaru wiring.
If you are installing an ATOTO headunit, see our ATOTO direct wire adapter here.
Please contact us if this form does not fit your needs.
As an Amazon Associate AutoHarnessHouse.com earns from qualifying purchases.
www.autoharnesshouse.com
inquiry@autoharnesshouse.com
