Car stereo install guides and wiring tutorials

Straight answers to the questions we actually get asked — what each adapter does, what your car keeps, and what it does not.

Everything below comes out of building custom harnesses and answering install questions every day. If your car or head unit is not covered, email us — that is how most of these guides started.

In-depth guides

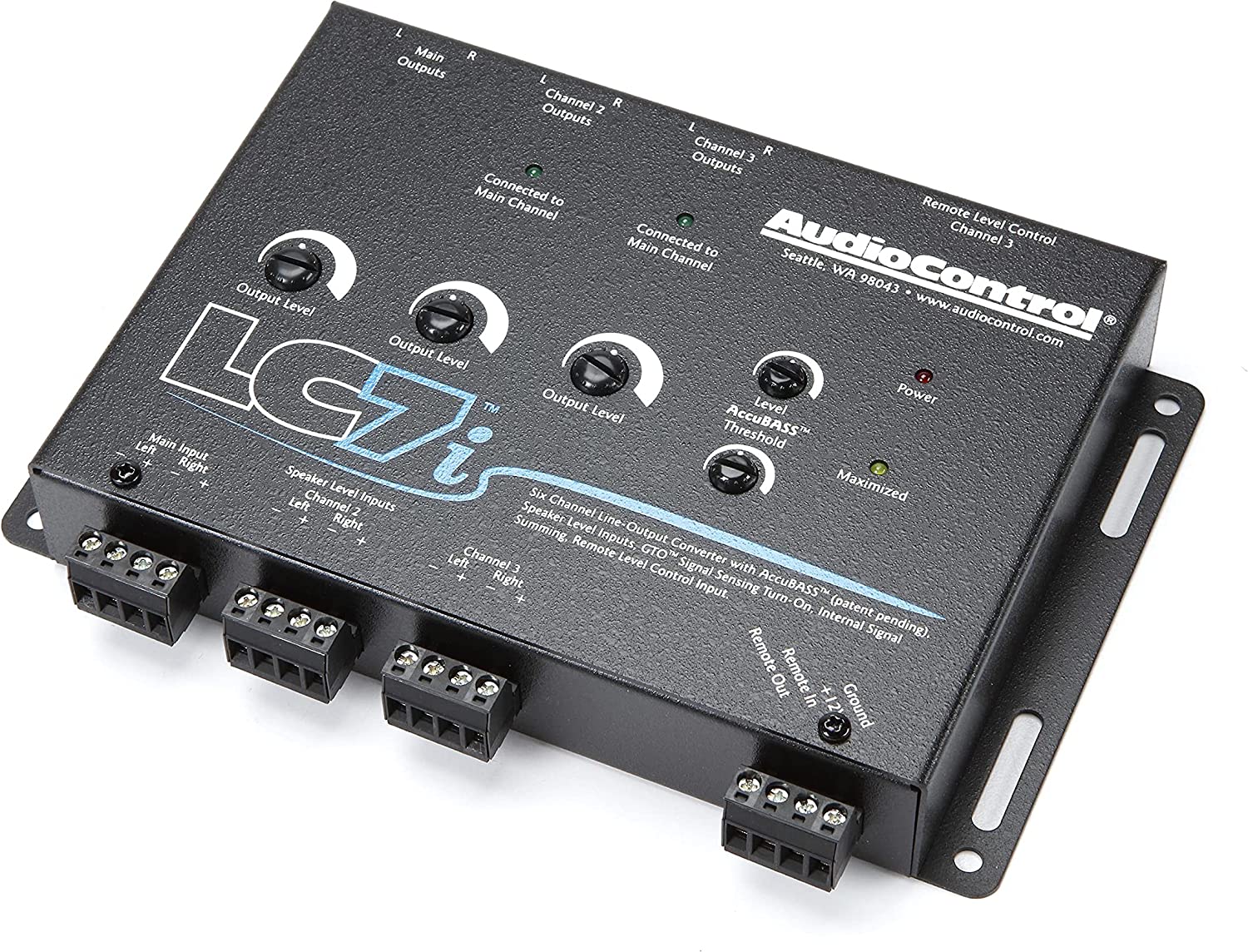

Adding an amp or subwoofer to a Subaru with Harman Kardon

The factory amplifier - not the radio - controls volume, balance and fade. That one fact decides how you add an amp or a subwoofer. Includes which channels to tap and why.

Bypassing the Starlink DCM when you replace a Subaru radio

The DCM sits in the space your new head unit wants. Remove it or keep it - both are real options with real trade-offs. Includes the signal path that keeps Starlink alive.

Start here: what does my car need?

Steering wheel controls

The single most common question we get. Keeping the buttons on your steering wheel working after a head unit swap depends on the car and on the radio you are fitting. Some of our direct-wire harnesses carry the connection built in, so there is nothing extra to buy. Others need an interface box — the Axxess AXSWC-2 on many cars, or an iDatalink Maestro where the factory amplifier is involved. ATOTO units are a special case: they program the buttons on their own screen, so they need no interface box at all.

The install guide for your car and era says which applies:

Keeping your backup camera

The second most common question. Whether your camera carries over depends on where it displays today. If it shows on the factory radio screen, one kind of adapter applies; if it shows in the multi-function display above the radio, the wiring is different; and on navigation-equipped cars there is often a separate camera connector plus another connector carrying the reverse signal.

If you are not sure which you have, tell us the year, model and trim and what your camera does today — a photo of the dash helps. Subaru owners can also identify a 2010-2014 Legacy or Outback radio from photographs.

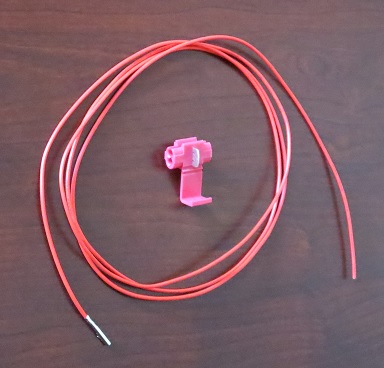

The reverse trigger wire

Most vehicles have this wire installed from the factory. This tutorial tells you how to determine if your vehicle has the wire installed and how to install it if needed. The backup camera harness is listed here.

Reverse trigger wire tutorial — how to check and install it

Factory amplifiers

An amplified car is not harder to work on, but it is different. On most Subaru systems the amplifier needs a turn-on signal that the new radio has to supply. On Harman Kardon cars the amplifier also controls volume, balance and fade, which changes the job completely — that one has its own guide.

AM/FM antenna adapters

Most installs need one, and which one is not always obvious — some cars use a standard plug, some need an extended-length adapter, and some use a physically larger connector. Our ATOTO harnesses include an antenna adapter already, so those installs usually need nothing extra. Ordering the wrong one is one of the more common avoidable mistakes, so if your car is not clearly covered, ask first.

USB ports

Keeping the factory USB port in the console usually needs a small adapter, and which one depends on the car and sometimes the year. Cars with two USB ports behave differently from cars with one — if the adapter does not work with a dual-port setup, the options are running a USB extension from the back of the head unit to the glovebox, or fitting the single-port module.

Video lockout and the parking brake wire

Pioneer head units watch the parking brake wire and lock out video and some settings while the car is moving. A parking brake bypass module simulates an engaged brake so those stay available. Several of our Pioneer harnesses can be supplied with the bypass already built in, which saves sourcing a module and splicing it in.

Toyota VSS bypass — vehicle speed signal and lockout

Many Toyota vehicles have a feature that will prevent user input, such as entering a GPS address or changing settings, while the vehicle is in motion. This is a safety feature that prevents distracted driving, but it also stops passengers changing settings and can be a nuisance if you use the in-dash navigation while travelling.

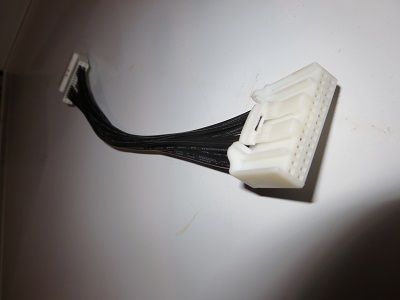

This forum write-up shows in detail how to use the 28-pin jumper harness sold here to install the mod without cutting wires. The write-up covers a Toyota Highlander; we have also seen it used on the Toyota 4Runner, Prius, Tundra and Tacoma.

2015 Highlander navigation and phone lockout bypass — ToyotaNation forum write-up

Subaru speaker and tweeter upgrades — which adapter do I need?

Replacing door speakers or dash tweeters in your Subaru? We mapped every speaker connector for 2005-2026 models, including Harman Kardon systems, against the factory wiring diagrams. Find your model and the correct plug-and-play adapter.

Subaru speaker and tweeter adapter guide

Speakers, tweeters and load resistors

Choosing a head unit

Cannot find your car?

Send us the year, model and trim, the head unit you are fitting, and what you want to keep working — camera, steering wheel buttons, factory amplifier, USB. We build custom harnesses every day and will tell you honestly if something is not practical. inquiry@autoharnesshouse.com
