Subaru Aftermarket Amplifier or Subwoofer Installation Information

This page describes the parts needed to upgrade your OEM Subaru audio system by installing either an aftermarket in-line amplifier or an aftermarket subwoofer amplifier. Both upgrades require splicing speaker wires to connect audio signals to the aftermarket amplifier. The harness kits discussed here will allow you to make this connection without damaging/splicing OEM wires.

These "Jumper harnesses" connect between the back of the OEM headunit and the wiring that goes to the speakers. This will allow splicing of these harnesses rather than cutting or tapping factory wiring.

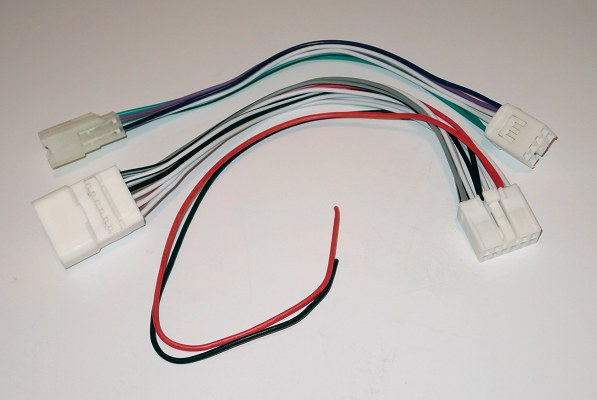

Splice harness Splice harness

Vehicle Selection

Please select your vehicle to view the recommended jumper harness:


...

...

...

AutoHarnessHouse.com is loading...

...

Error! - Please enable Javascript

Error! - Please enable Javascript

Subaru Ascent (All Model Years)

The Ascent will require the following jumper harnesses:

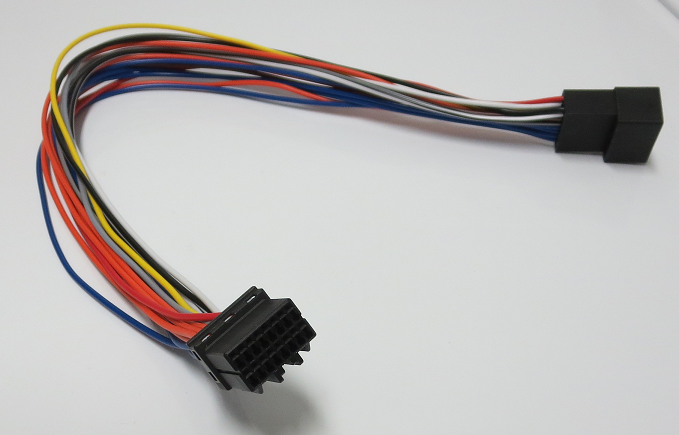

- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers

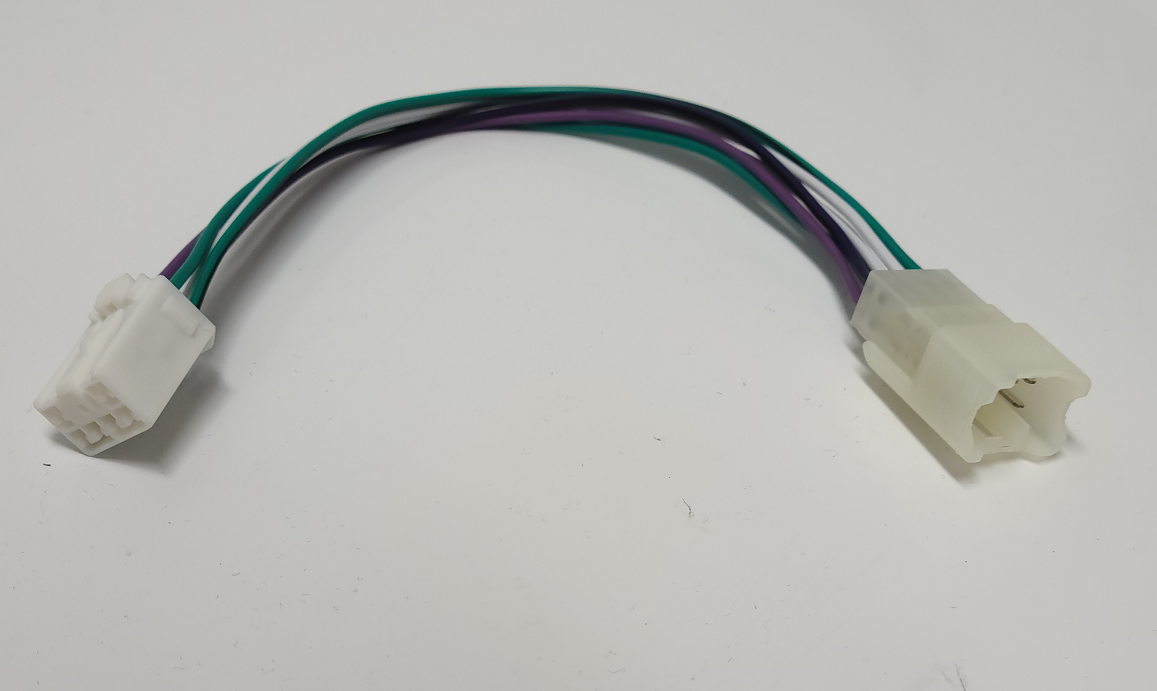

- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier or to the Starlink Telematics Module rather than the headunit (See the information on the Subaru Telematics Jumper listed below). If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

2024 Subaru Amp Adapter

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Ascent Connector DiagramSubaru 10-pin connector

Subaru BRZ (all model years)

The BRZ will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2024 WRX with Navigation

The 2024 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2023 WRX with Navigation

The 2023 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2022 WRX with Navigation

The 2022 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2021 WRX with Navigation

The 2021 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2020 WRX with Navigation

The 2020 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2019 WRX with Navigation

The 2019 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2018 WRX with Navigation

The 2018 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

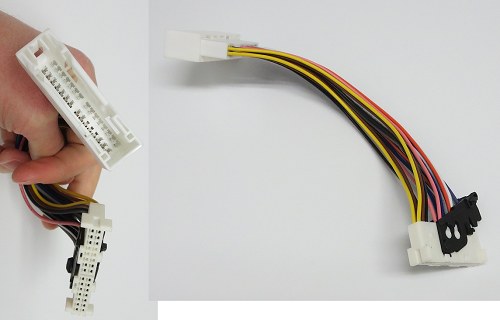

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

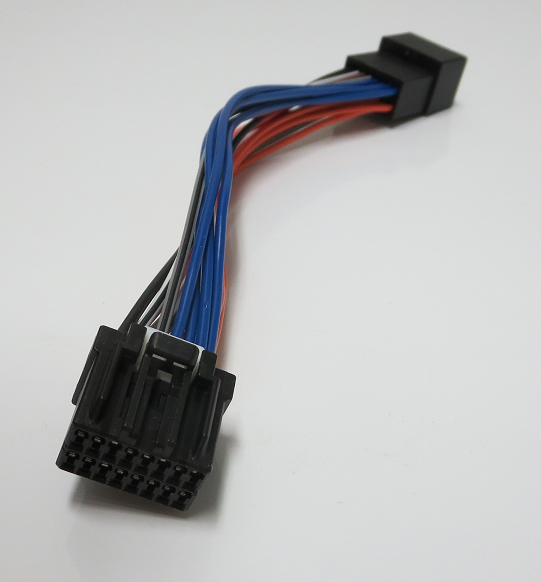

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

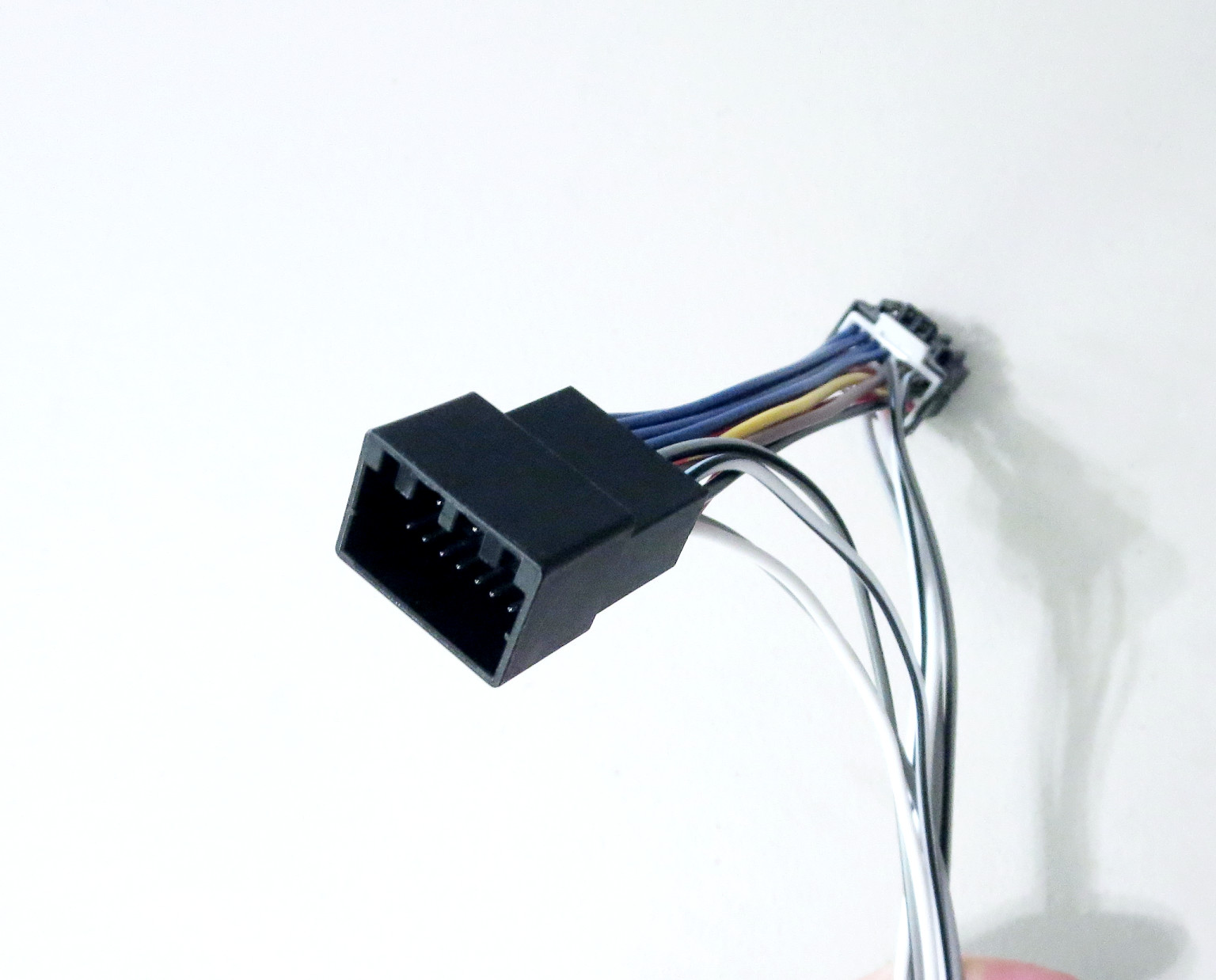

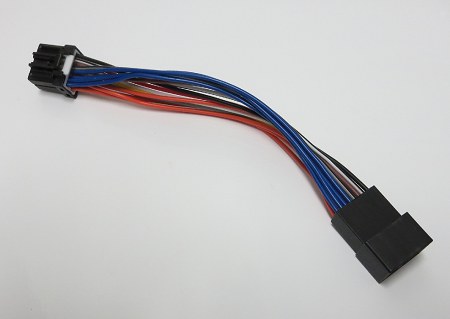

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 WRX with Navigation

The 2017 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 WRX with Navigation

The 2016 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 WRX with Navigation

The 2015 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2014 WRX with Navigation

The 2014 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2013 WRX with Navigation

The 2013 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2012 WRX with Navigation

The 2012 WRX with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2024 Forester with Navigation

The 2024 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2023 Forester with Navigation

The 2023 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2022 Forester with Navigation

The 2022 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2021 Forester with Navigation

The 2021 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2020 Forester with Navigation

The 2020 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2019 Forester with Navigation

The 2019 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2018 Forester with Navigation

The 2018 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 Forester with Navigation

The 2017 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 Forester with Navigation

The 2016 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 Forester with Navigation

The 2015 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2014 Forester with Navigation

The 2014 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2013 Forester with Navigation

The 2013 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2012 Forester with Navigation

The 2012 Forester with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2024 Impreza/Crosstrek with Navigation

The 2024 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2023 Impreza/Crosstrek with Navigation

The 2023 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2022 Impreza/Crosstrek with Navigation

The 2022 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2021 Impreza/Crosstrek with Navigation

The 2021 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2020 Impreza/Crosstrek with Navigation

The 2020 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2019 Impreza/Crosstrek with Navigation

The 2019 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2018 Impreza/Crosstrek with Navigation

The 2018 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 Impreza/Crosstrek with Navigation

The 2017 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 Impreza/Crosstrek with Navigation

The 2016 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 Impreza/Crosstrek with Navigation

The 2015 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2014 Impreza/Crosstrek with Navigation

The 2014 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2013 Impreza/Crosstrek with Navigation

The 2013 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2012 Impreza/Crosstrek with Navigation

The 2012 Impreza/Crosstrek with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2024 Legacy/Outback with Navigation

The 2024 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2023 Legacy/Outback with Navigation

The 2023 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2022 Legacy/Outback with Navigation

The 2022 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2021 Legacy/Outback with Navigation

The 2021 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2020 Legacy/Outback with Navigation

The 2020 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2019 Legacy/Outback with Navigation

The 2019 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2018 Legacy/Outback with Navigation

The 2018 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 Legacy/Outback with Navigation

The 2017 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 Legacy/Outback with Navigation

The 2016 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 Legacy/Outback with Navigation

The 2015 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2014 Legacy/Outback with Navigation

The 2014 Legacy/Outback with Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2013 Legacy/Outback with Navigation

The 2013 Legacy/Outback with Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2012 Legacy/Outback with Navigation

The 2012 Legacy/Outback with Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2024 WRX without Navigation

The 2024 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2023 WRX without Navigation

The 2023 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2022 WRX without Navigation

The 2022 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2021 WRX without Navigation

The 2021 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2020 WRX without Navigation

The 2020 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2019 WRX without Navigation

The 2019 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2018 WRX without Navigation

The 2018 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 WRX without Navigation

The 2017 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 WRX without Navigation

The 2016 WRX without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 WRX without Navigation

The 2015 WRX without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2014 WRX without Navigation

The 2014 WRX without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2013 WRX without Navigation

The 2013 WRX without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2012 WRX without Navigation

The 2012 WRX without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2024 Forester without Navigation

The 2024 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2023 Forester without Navigation

The 2023 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2022 Forester without Navigation

The 2022 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2021 Forester without Navigation

The 2021 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2020 Forester without Navigation

The 2020 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2019 Forester without Navigation

The 2019 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2018 Forester without Navigation

The 2018 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 Forester without Navigation

The 2017 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 Forester without Navigation

The 2016 Forester without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 Forester without Navigation

The 2015 Forester without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2014 Forester without Navigation

The 2014 Forester without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2013 Forester without Navigation

The 2013 Forester without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2012 Forester without Navigation

The 2012 Forester without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2024 Impreza/Crosstrek without Navigation

The 2024 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2023 Impreza/Crosstrek without Navigation

The 2023 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2022 Impreza/Crosstrek without Navigation

The 2022 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2021 Impreza/Crosstrek without Navigation

The 2021 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2020 Impreza/Crosstrek without Navigation

The 2020 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2019 Impreza/Crosstrek without Navigation

The 2019 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2018 Impreza/Crosstrek without Navigation

The 2018 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 Impreza/Crosstrek without Navigation

The 2017 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 Impreza/Crosstrek without Navigation

The 2016 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 Impreza/Crosstrek without Navigation

The 2015 Impreza/Crosstrek without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2014 Impreza/Crosstrek without Navigation

The 2014 Impreza/Crosstrek without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2013 Impreza/Crosstrek without Navigation

The 2013 Impreza/Crosstrek without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2012 Impreza/Crosstrek without Navigation

The 2012 Impreza/Crosstrek without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2024 Legacy/Outback without Navigation

The 2024 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2023 Legacy/Outback without Navigation

The 2023 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2022 Legacy/Outback without Navigation

The 2022 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2021 Legacy/Outback without Navigation

The 2021 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2020 Legacy/Outback without Navigation

The 2020 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2019 Legacy/Outback without Navigation

The 2019 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

2018 Legacy/Outback without Navigation

The 2018 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2017 Legacy/Outback without Navigation

The 2017 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

OEM Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Connector DiagramSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2016 Legacy/Outback without Navigation

The 2016 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Metra 71-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

Subaru Starlink/Telematics System Jumper Adapter

If your Subaru is equipt with the Starlink, then your front speaker signals pass through a Subaru Telematics module that sits below the headunit. Usually this unit is mounted to the same bracket as the headunit. Depending on your installation, it is often best practice to intercept these front speaker signals after they pass through the Subaru Telematics module.

Harman Kardon System: If you have the Harman Kardon system and are adding an amp and subwoofer, you can splice into the front speaker signals here to use as inputs to your subwoofer amplifier. We can't connect to the signals at the headunit because the headunit signals have not been processed by the Harman Kardon amplifier so they are not volume controlled or formatted correctly for your aftermarket amp. This adapter will allow you to connect to the front speaker signals after they go through the Harman Kardon amp. This is sometimes easier than connecting at the output of the Harman Kardon amp (please email us if you are interested in the adapter that is used at the amp).

Adding an Inline Amplifier: If you are adding a higher power amp, you may want to consider connecting this amp after the Starlink system (downstream of the telematics unit). The reason is that some users have experienced problems with or damage to the Telematics module because the speaker signals after the aftermarket amplifier are higher volume than the Telematics module is designed for. This has not been a problem when using lower power equipment such as the Alpine KTA-450 (Powerpack Amplifier). When we connect the amplifier after the Telematics module, this creates a new problem because the Telematics module will recognize that the output impedance (which is the front speakers in the OEM configuration) is incorrect and this will flag an error on the Subaru Starlink system. To solve this issue, we must install load resistors between the output of the Telematics module and the input of the aftermarket amplifier. Here is a diagram for how this will look:

Subaru Telematics Module - DCM jumper adapter

We recommend the AudioControl load resistors sold here.

The Telematics 16-pin jumper adapter is sold here and is available as a short jumper without the front speaker signal wires broken out or as a short jumper with 14" wire leads that can be connected to your Line Output Converter or to an amp that has speaker level inputs.

Item Number: 7880

Subaru TelematicsSubaru Adapter

Subaru Data Communication module Subaru Starlink Connector Subaru Starlink Bypass kit

16-pin Starlink/Telematics adapter

Choose Version:

A wiring pinout is not included but the wires for the front speaker signals are color coded as follows:
White - Left Front Speaker +
White/Black - Left Front Speaker -
Gray - Right Front Speaker +
Gray/Black - Right Front Speaker -

Need to add the Rear speaker adapter? - Purchase it here: (Do not buy this 6-pin adapter and the $40 kit above. You don't need them both)

Price: $19

Subaru Telematics

2015 Legacy/Outback without Navigation

The 2015 Legacy/Outback without Navigation will require the following jumper harnesses:
- 10-pin - This harness provides connections to the +12V, Ground, Illumination, and Front Speakers
- 6-pin - This harness provides connections to the Rear Speakers

Note about Harman Kardon vehicles: The Harman Kardon amplifier is responsible for some volume control and equalization functions so using this adapter will not work for connecting a subwoofer to the OEM headunit (on Harman Kardon vehicles). You will need to connect to output signals of the OEM amplifier rather than the headunit. If you don't have the Harman Kardon system, then this will not be an issue.

Price: $40

Reverse Metra 70-1761

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched and Ground
-Additional breakouts can be added upon request. Note that most OEM headunits do not have an amp trigger signal because it is not needed for most OEM applications. If your car doesn't have an OEM amplifier, we recommend using the +12V switched wire to trigger the amplifier as this will turn the amp on when the ignition is on.

Pinout:
Subaru Speaker PinoutSubaru 10-pin connector

2014 Legacy/Outback without Navigation

If your 2014 Legacy or Outback HAS a video display screen, you will need the 10-pin and 6-pin adapter set:

If you DO NOT have a video display screen on the radio/audio system in your 2014 Legacy/Outback, you will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2013 Legacy/Outback without Navigation

The 2013 Legacy/Outback without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

10-pin and 6-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:

2012 Legacy/Outback without Navigation

The 2012 Legacy/Outback without Navigation will require the following jumper harness:
- 20-pin - This harness provides connections to the +12V, Ground, Illumination, and Speakers

20-pin Jumper Harnesses

Details:
-All pins will be populated in both harnesses
-Breakout connections will be provided for +12V switched, +12V unswitched and Ground
-Additional breakouts can be added for Amp Trigger signals or other signals upon request
-Full details page - CLICK HERE:


30-pin Subaru Harman Kardon Amp jumper - HARMAN KARDON VEHICLES ONLY

This wiring adapter will ONLY WORK FOR SELECT vehicles WITH HARMAN KARDON. If you are adding an amplifier to your Harman Kardon vehicle, it will be necessary to tap into the audio signals at the output of the OEM amplifier. The reason for this is that the OEM Harman Kardon amplifier will perform volume control and equalization functions that will not normally be performed in an aftermarket amplifier. Simply put, you won't be able to control the volume in your vehicle unless both the amp and heaudnit are installed and working in tandem. This jumper allows the customer to tap and splice the speaker signals to add a subwoofer or to amplify the speakers in the car without hurting the factory wiring. If you need subwoofer "breakout" wires, please email us at inquiry@autoharnesshouse.com immediately after you order and let us know which speaker signals you would like us to break out for you. Some customers use the Woofer/Subwoofer signals for this and others will use the front door speakers since these tend to be close to Full-Range audio signals. We are here to help! If you have any questions, please ask!

Item Number: 7881

Subaru 30-pin Harman Kardon amp

We've already mentioned this, but please do not buy this if you do not have a vehicle with Harman Kardon - non-Harman Kardon vehicles don't have this connector!

Price: $68

24-pin Subaru Harman Kardon Amp Turn-on adapter - (HARMAN KARDON VEHICLES ONLY)

Item Number: 7583

Subaru 24-pin Harman Kardon amp Turn-on Subaru 24-pin Harman Kardon amp Turn-on - Connector picture

Do not buy this if you do not have a vehicle with Harman Kardon - non-Harman Kardon vehicles don't have this connector! This adapter is for the other connector on the Harman Kardon amp. This adapter has the +12V ignition wire connected to it. The 30-pin adapter above does not have an "Amp Turn-on" or +12V ignition switched wire. The 24-pin adapter has a +12V ignition switched signal connected to it and that wire will be broken out for you. If you need a turn-on signal for the amp, then you can connect to it on this wiring adapter. You don't need to buy this adapter unless you need to connect to the ignition turn-on wire because none of the other signals on this wiring adapter are useful for a subwoofer installation.

Price: $20
