Subaru JDM AC or JDM HVAC Panel Install Kit (i88 harness, i85 adapter, and 14-pin) for Outback and Legacy
Item Number: AHH-JDM
Description and JDM HVAC panel Information:
Get those HVAC controls working when installing an aftermarket headunit in your 2005-2009 Legacy or Outback. These vehicles are designed to have the blower and HVAC contorls built into the same console as the OEM headunit. When owners upgrad the headunit using the standard adapter, the HVAC will stop working unless you install the JDM HVAC panel, which is designed to surround the headunit so that an aftermarket unit will fit. This wiring kit will give you what you need to install the JDM HVAC panel.
Special note: Please make sure that you do not try to install a SIngle-Zone JDM HVAC panel in your Dual-Zone car (most US vehicles have Dual Zone). If you do this, then the panel will not work correctly because these two units are not interchangeable.
This adapter is used in combination with the JDM AV Panel to retain HVAC control when installing an aftermarket Double DIN headunit in a Subaru Legacy or Outback. The JDM panel requires the following additional signals that are not connected in the OEM harness:
- Illumination (-)
- Illumination (+)
- +12V Switched
This adapter is a plug-and-play solution to add these signals to the connector on yoru vehicle's wiring without cutting factory wire. The parts you'll need are the i88 adapter, which connects to the back of the JDM AC Panel and the vehicles i88 connector, and the 14-pin Subaru Install harness with the added Illumination (-) pin. This additional pin (also referred to as the 'Dimmer' signal) isn't installed in the this adapter if you purchase if from most online retailers.
An installation diagram is not included but here are the wire colors for the 14-pin adapter:
Red - 12V Ignition/ACC
Yellow - 12V Battery/Memory
Black - Ground
Blue - Antenna/Amp turn-on
Gray - Right Front +
Gray/Black - Right Front -
White - Left Front +
White/Black - Left Front -
Violet - Right Rear +
Violet/Black - Right Rear -
Green - Left Rear +
Green/Black - Left Rear -
For vehicles with steering wheel controls:
If you have steering wheel controls, you'll need the i85 adapter to retain them. This adapter is sold at the bottom of this page. The i85 adapter will provide you with the wired signals that connect to the steering wheel on your car. These signals will need to be routed to an AXXESS ASWC-1 (or AXXESS AXSWC) in some cases. If you have a Sony headunit or if you are installing and android unit (such as the ATOTO S8), then you don't need the steering wheel button interface.
AM/FM adapter:
The AM/FM adapter is not sold here. The adapter that you'll need for your install can be purchased on Amazon here
Purchase:

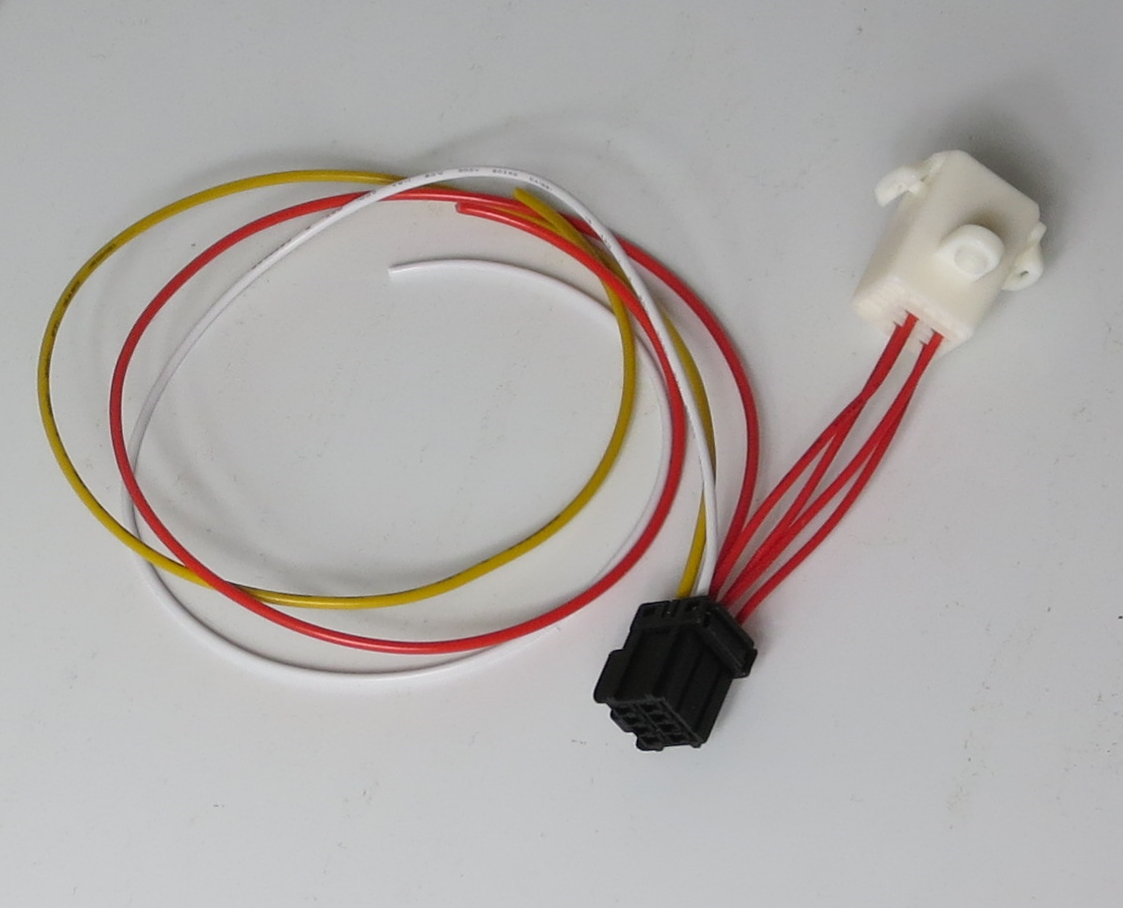

i88 Adapter - 8-pin JDM jumper harness
Price: $42

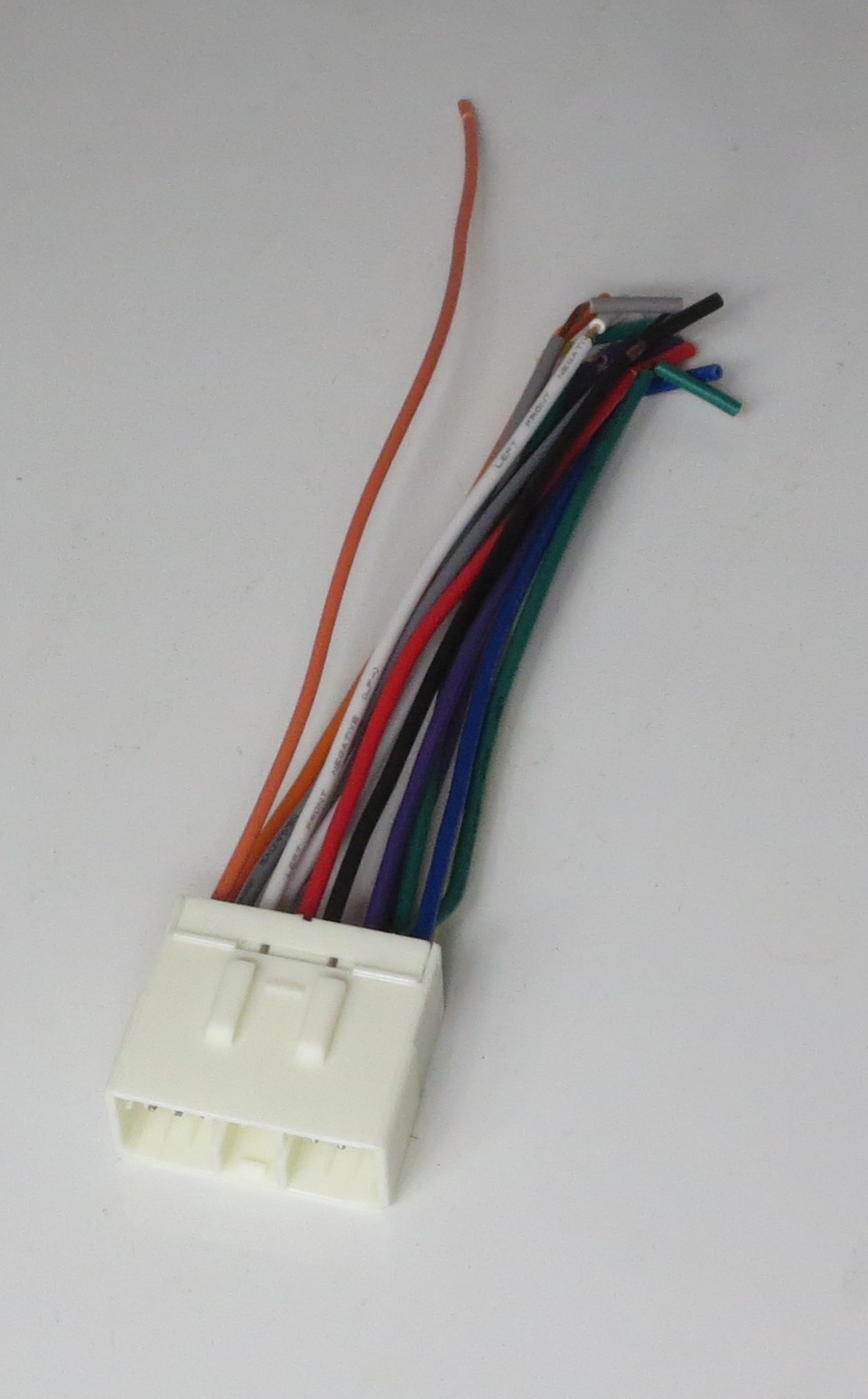

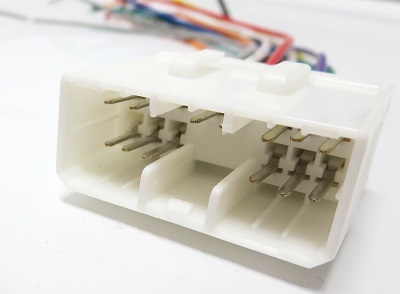

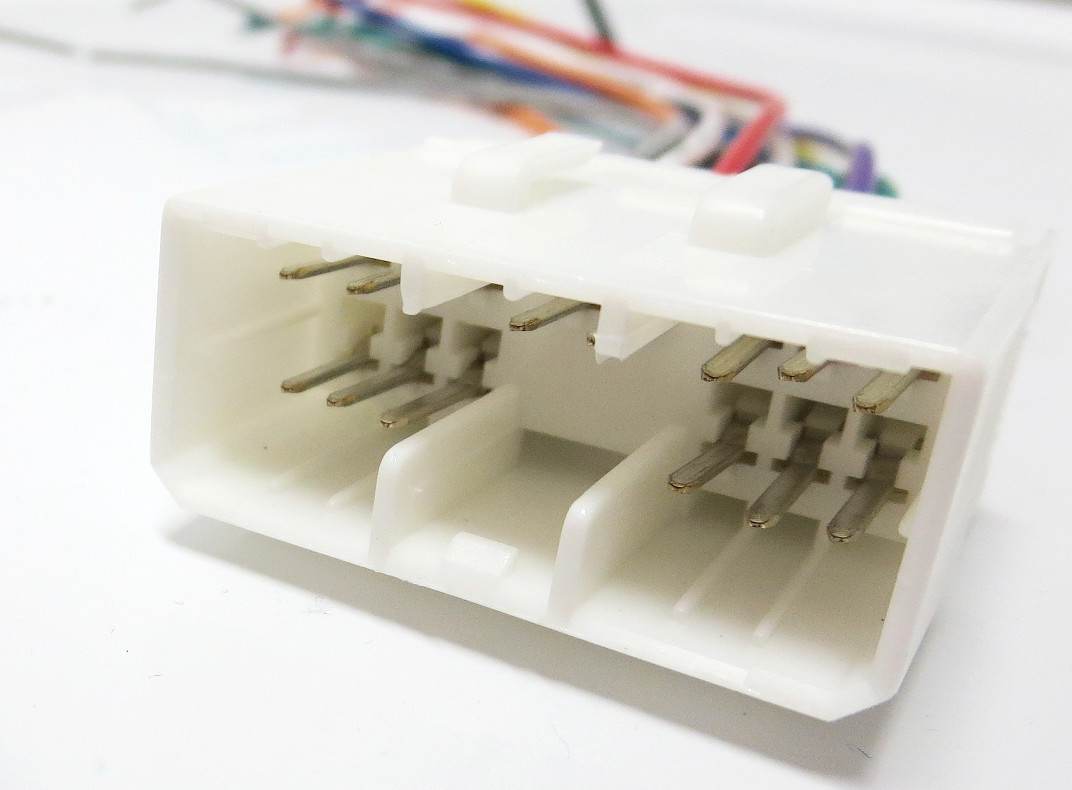

Subaru Install adapter - 14-pin connector with added Illumination (-) pin
Price: $19

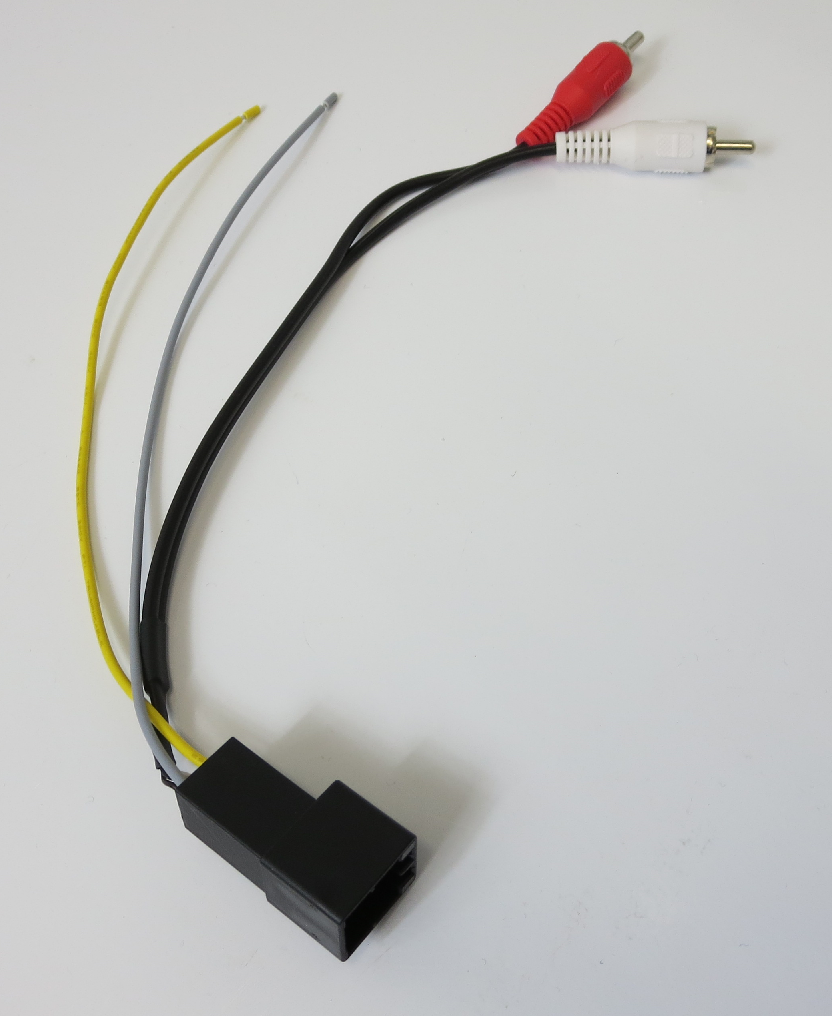

i85 adapter - Only used for vehicles with Steering Wheel Controls and/or the auxiliary port in the console (not needed otherwise)
This adapter has the RCAs for the Auxiliary input in the console and the 2 wires necessary for keeping the steering wheel contorls.
Price: $35
Direct wire harness for Pioneer Headunits (includes i88 and 14-pin adapters)
(Note that the pictures shows 2 separate adapters. We will solder these together for you before we ship!)
If you already have the headunit installed using another Pioneer connector, We can sell you only the i88 adapter. You will need the 14th pin on the 14-pin adapter (Dimmer/Illumination-) which most of the 14-pin adapters don't have.
This adapter has the Pioneer connector wired to the 14-pin adapter and to the i88 adapter. This is the most plug and play adapter for this install!
Direct wire harness: $65
 |
Parking Brake Bypass Interface Module for Select Pioneer HeadunitsIf you are installing a Pioneer headunit in your vehicle and do not have access to the Parking Brake signal (E-brake), then you may choose to bypass the video in motion function on your Pioneer headunit. This model will accomplish this! This unit is plug and play for pre-2009 Subaru Direct wire adapter above. CLICK HERE FOR MORE INFO |
i85 adapter - Only used for vehicles with Steering Wheel Controls and/or the auxiliary port in the console (not needed otherwise)
This adapter has the RCAs for the Auxiliary input in the console and the 2 wires necessary for keeping the steering wheel contorls.
Price: $35
Axxess ASWC-1 Steering Wheel Control Adapter:
(No picture)
The AXXESS ASWC-1 connects your car's steering wheel audio controls to Pioneer aftermarket car stereos. Pioneer headunits don't have the ability to program in the functions of the steering wheel controls. If you have steering wheel buttons, You'll need this adapter. (unless you don't plan to use the steering wheel buttons)
Price: $68

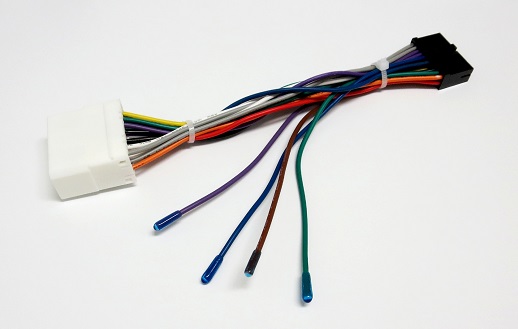

Direct wire harness for ATOTO Headunits (includes i88 and 14-pin ATOTO direct adapter)
(Note that the pictures shows 2 separate adapters. We will solder these together for you before we ship!)
If you already have the headunit installed using another ATOTO connector, We can sell you only the i88 adapter. You will need the 14th pin on the 14-pin adapter (Dimmer/Illumination-) which most of the 14-pin adapters don't have.
This adapter has the ATOTO connector wired to the 14-pin adapter and to the i88 adapter. This is the most plug and play adapter for this install!
Direct wire harness: $65
i85 adapter - Only used for vehicles with Steering Wheel Controls and/or the auxiliary port in the console (not needed otherwise)
This adapter has the RCAs for the Auxiliary input in the console and the 2 wires necessary for keeping the steering wheel contorls.
Price: $35
Steering Wheel Control Adapter:
The AXXESS ASWC-1 Is not needed when installing the ATOTO headunit. You will be able to connect the i85 adapter, listed above, directly to the ATOTO connector. If you order the i85 adapter in the same order as the ATOTO+i88 adapter listed at the link above, we can splice the steering wheel control buttons in for you so that you won't need to splice any wires!
