Amplifier installation kit for Honda audio or Amp install

Item Number: AHH-1777

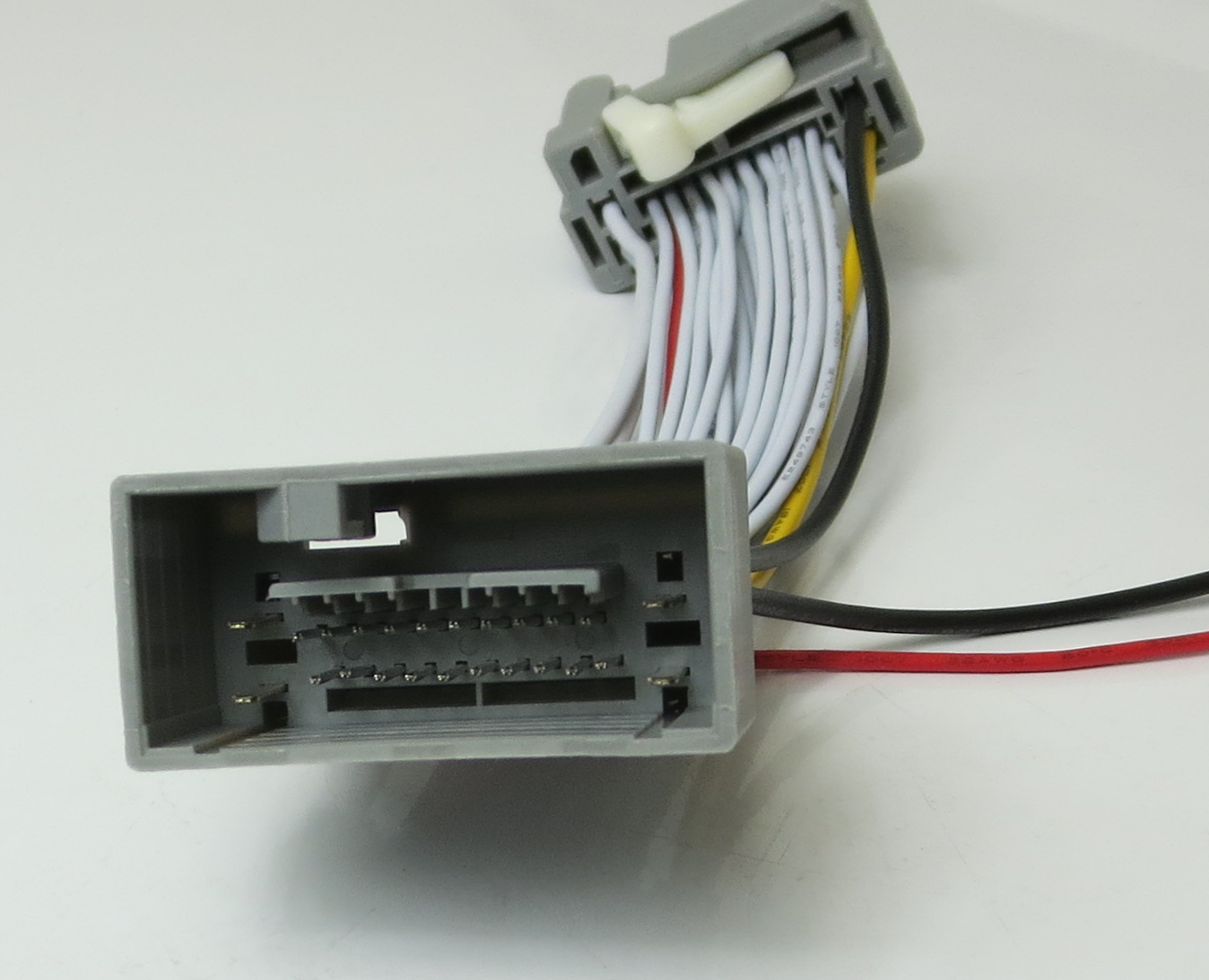

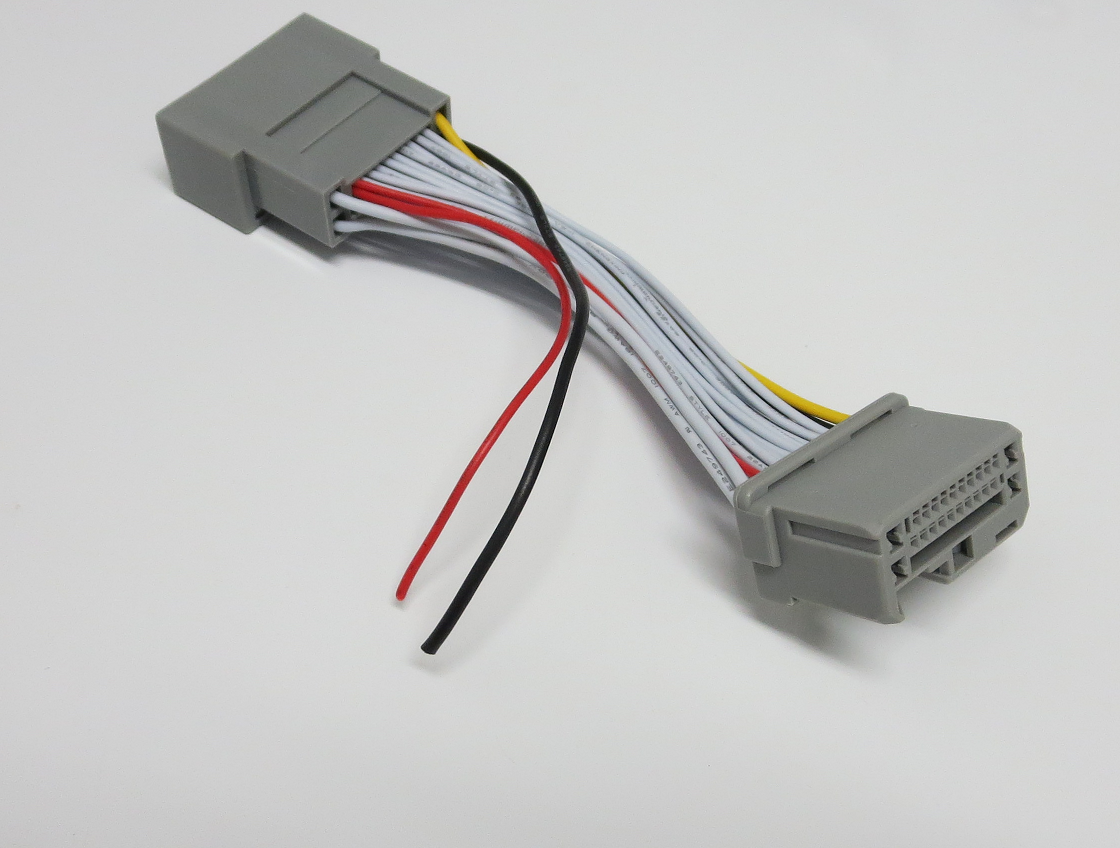

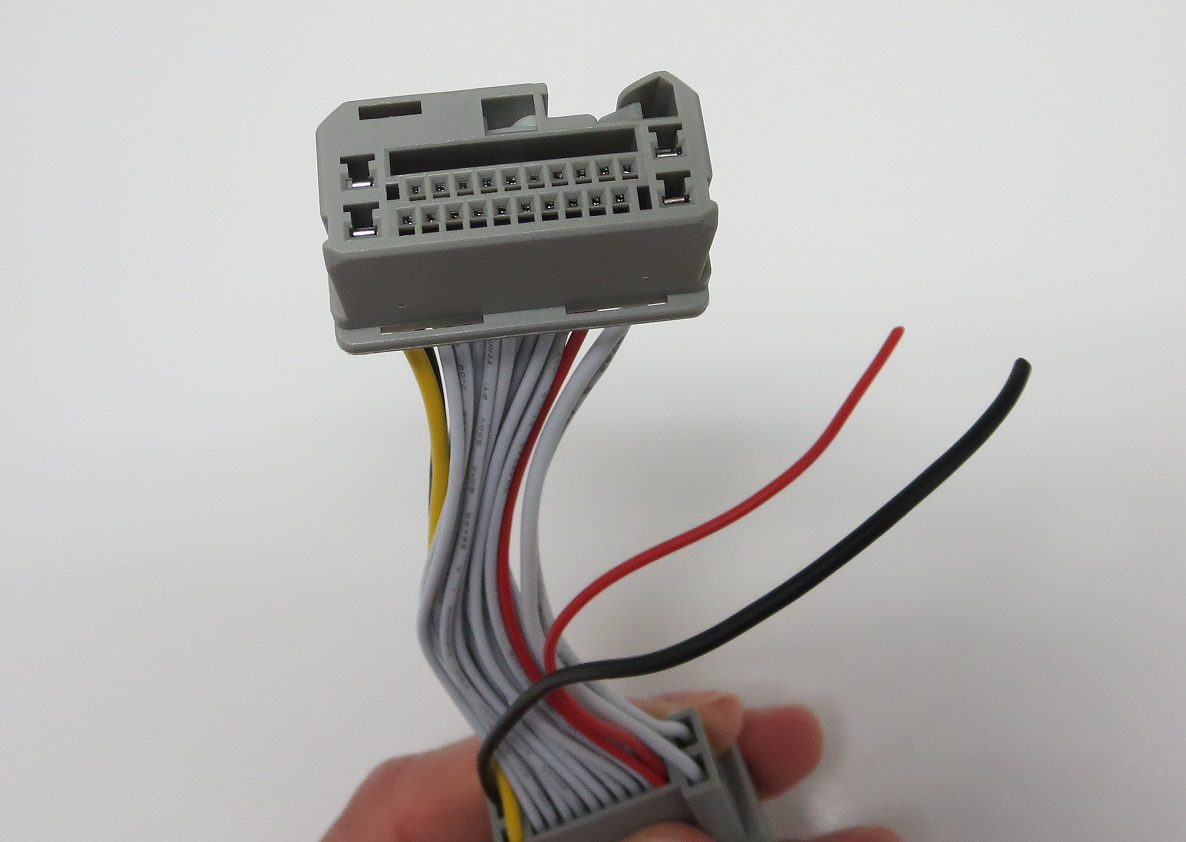

This Wiring Harness has the Honda 24-pin female connector that is used on many Honda vehicles for the speaker connections. It has a female connector on one end and 24-pin male connector on the other. One end will connect to the factory wiring harness and the other to the connector on the back of the head-unit or navigation system. This prevents the need to cut or damage factory wiring when adding an aftermarket amplifier, installing a subwoofer, or doing other aftermarket modifications.

Breakout wires are wired in for:
-Ground
-Switched (Ignition) +12 volts
***Additional breakouts can be soldered in for a fee***

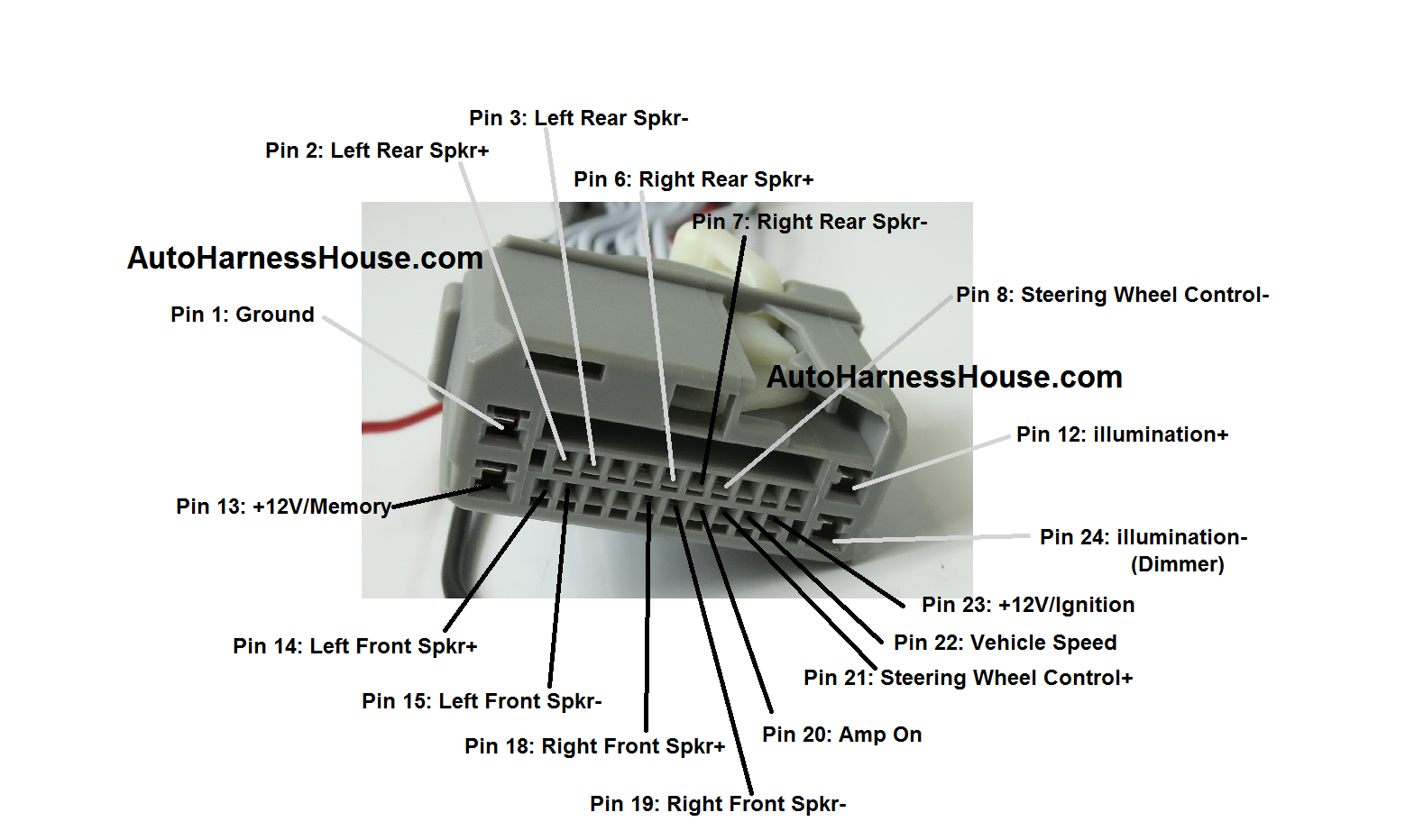

This harness will allow you to modify or splice into many of the signals that connect to your vehicle:
-Front and Rear speaker signals
-Remote(Steering Wheel) audio control switches
All 24 pins are populated.



Installation:

This harness connects between the stock head unit and the car's wiring harness. This harness should be connected between the head unit and wiring harness and used to tap the connections into the headunit without splicing or cutting the factory wiring harness.

Purchase:

Price: $36.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Acura
RL 2009 to 2012
TL 2009 to 2014
TLX 2015 to 2019
TSX 2009 to 2015
ZDX 2010 to 2013

Honda
ACCORD 2008 to 2012 Dark Gray Dash
ACCORD 2008 to 2012 Tan Dash
ACCORD 2008 to 2012 With Factory Navigation
ACCORD CROSSTOUR 2010 to 2015 Dark Gray Dash, with DUAL climate
ACCORD CROSSTOUR 2010 to 2015 Tan Dash
ACCORD CROSSTOUR 2010 to 2015 With Factory NAV
CIVIC 2012 to 2012 With Dark Gray Satin Dash
CIVIC 2012 to 2015 With Factory Navigation
CIVIC 2013 to 2015 Non Navigation
CRV Non Navigation 2012 to 2016
CRV with Navigation 2010 to 2016
CRZ 2011 to 2013
FIT 2009 to 2019
INSIGHT 2010 to 2014
ODYSSEY 2008 to 2010 Non Navigation
ODYSSEY 2011 to 2013
ODYSSEY 2014 to 2017 EX, EX-L, Touring
ODYSSEY 2014 to 2017 LX
PILOT 2009 to 2015
RIDGELINE 2009 to 2019

When installing an aftermarket amplifier or subwoofer, it is someitmes necessary to install load resistors! We've written this tech article to help you understand when these devices will be needed. Please click here for more information!
