Direct wire harness for ATOTO F7, X10 and 10-inch S8MS Headunits - NOT S8 Lite or the 7-inch and 9-inch A6PF/S8MS (fits 2008+ Honda/Acura - See compatibility information below)

Item Number: AHH-70-1729ATOTO

If you are installing a 7-inch or 9-inch ATOTO A6 PF, an S8 Lite, or a 7-inch or 9-inch S8MS, please click here to go to the correct page. The wiring connector shown here fits the standard ATOTO S8 and F7, plus the 10-inch S8MS (sold as S8G1104MS, S8EG1104MSB or S81104MSFX), and the 10.1-inch ATOTO A6 PF (A6G110PF) - it will NOT fit the 7-inch and 9-inch ATOTO A6 PF, the S8 Lite, or the 7-inch and 9-inch S8MS!

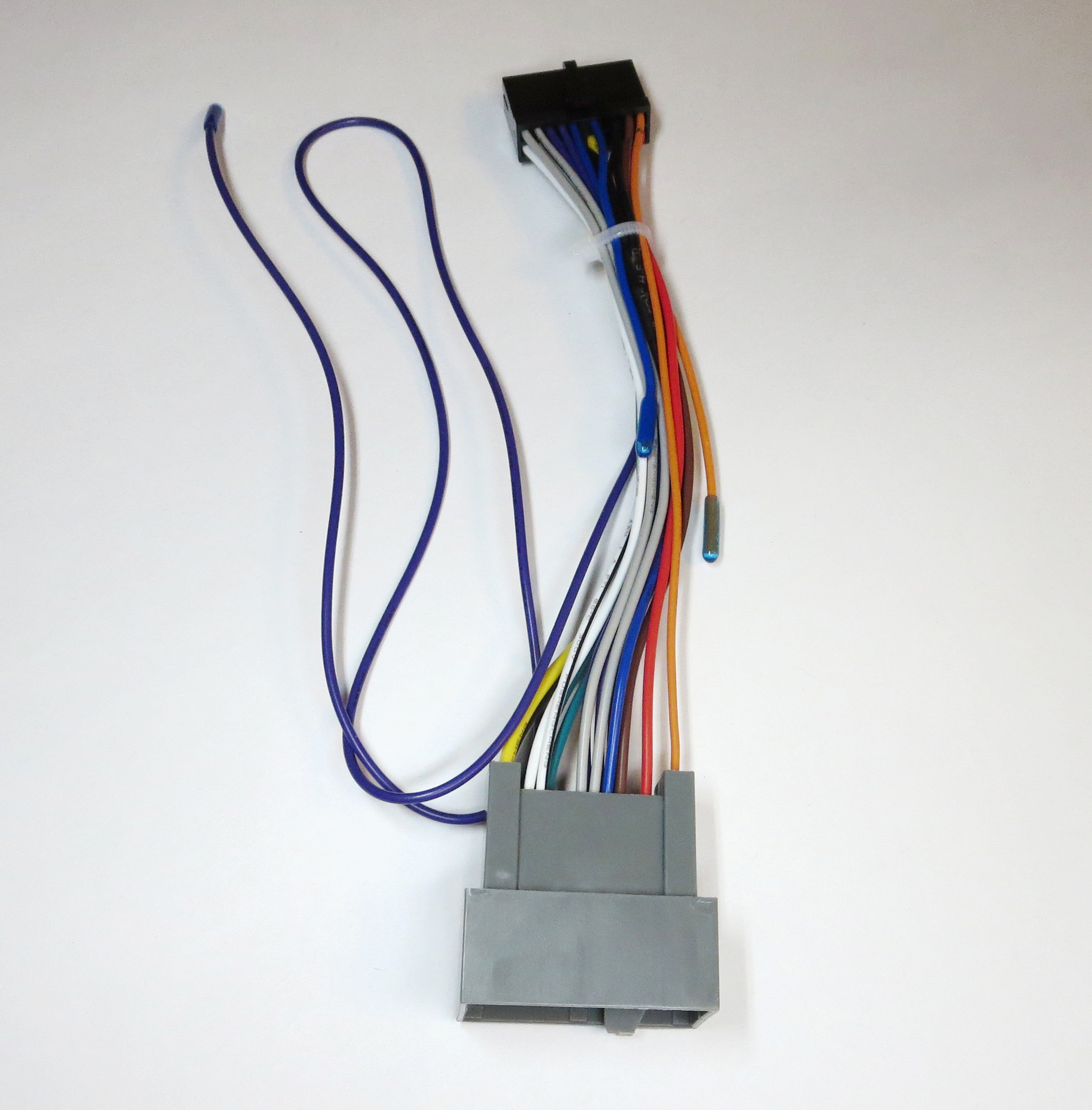

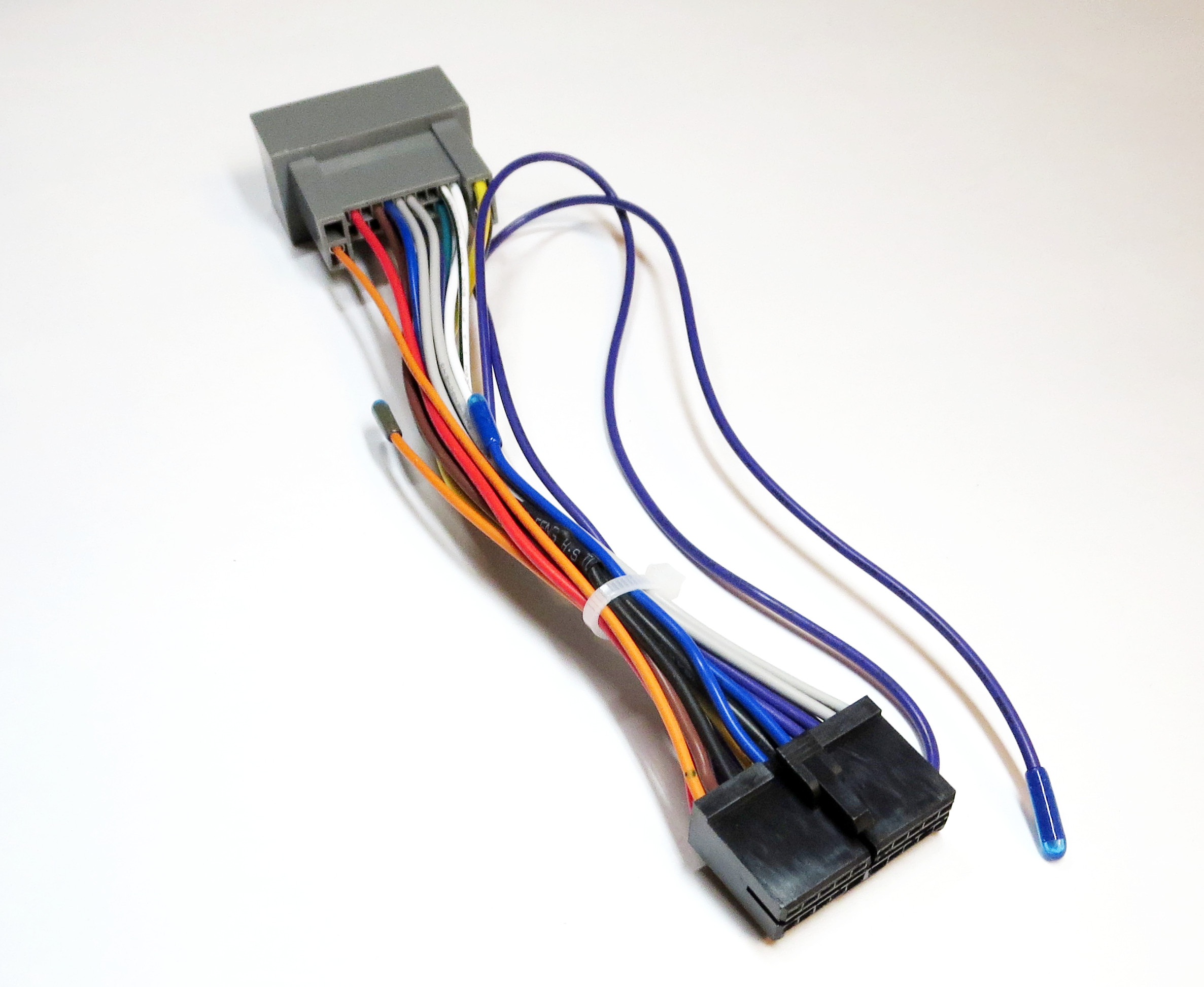

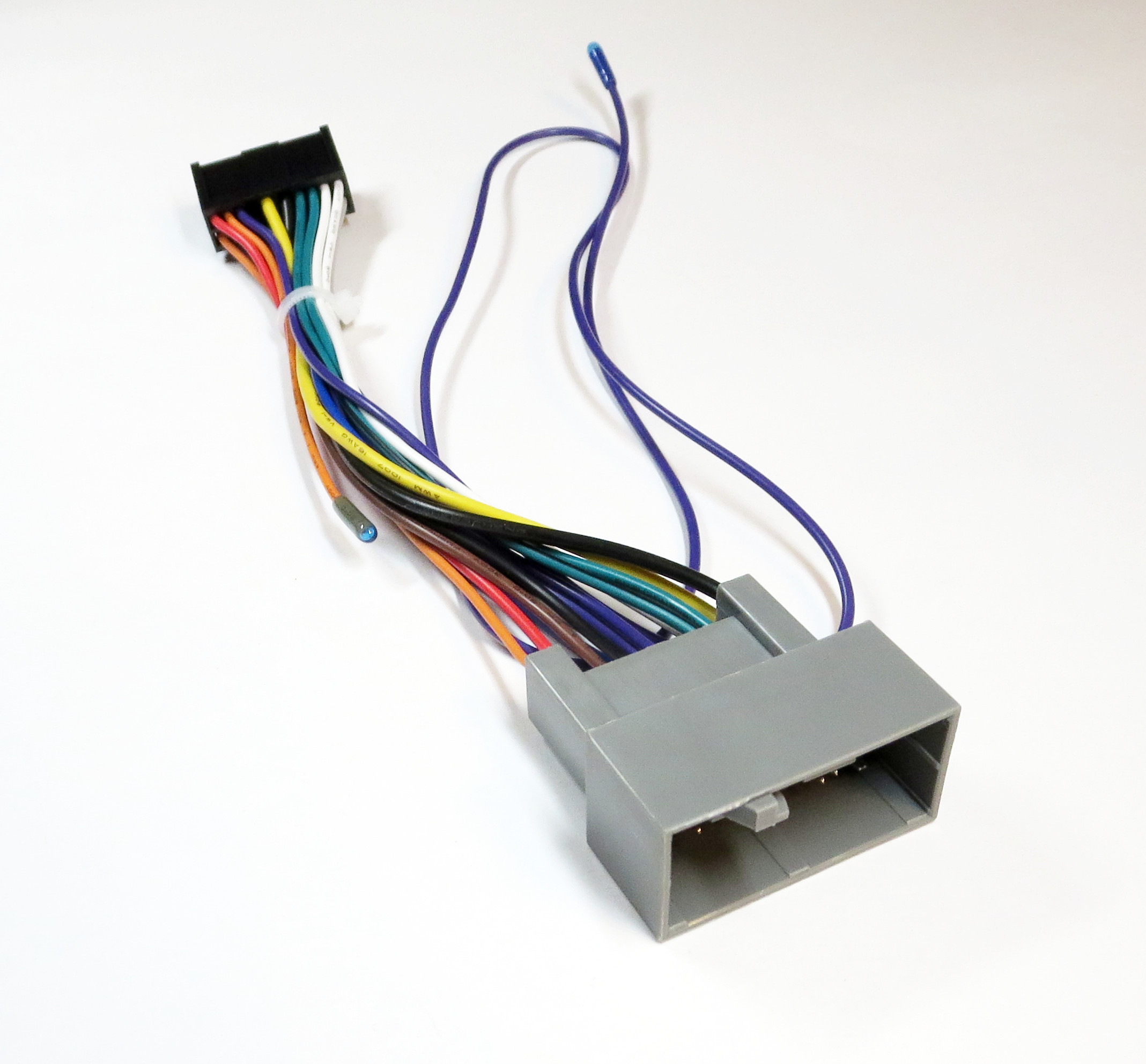

Easily upgrade your Honda or Acura with a ATOTO Android head unit using this pre-wired adapter. Designed for a hassle-free installation, it features an ATOTO connector on one end and a Honda-compatible plug on the other.

What's included:

• A dedicated Steering Wheel Control wire is included in the Honda connector, offering a unique signal not typically found in most aftermarket installation harnesses.
• Reverse signal originates from the ATOTO connector, allowing for proper integration elsewhere in the vehicle.

Installation:

1) Simply plug in both ends - one to the ATOTO Double-Din unit and the other to your vehicle.
2) Connect the Reverse connection (only necessary if installing a backup camera).

Purchase:

Price: $31.00

Vehicle Fitment:

(If a known model is not listed, let us know)

Acura
RL 2009 to 2012
TL 2009 to 2014
TLX 2015 to 2019
TSX 2009 to 2015
ZDX 2010 to 2013

Honda
ACCORD 2008 to 2015 Non-Navigation
ACCORD 2008 to 2012 With Factory Navigation
ACCORD CROSSTOUR 2010 to 2015 Dark Gray Dash, with DUAL climate
ACCORD CROSSTOUR 2010 to 2015 Tan Dash
ACCORD CROSSTOUR 2010 to 2015 With Factory NAV
CIVIC 2012 to 2012 With Dark Gray Satin Dash
CIVIC 2012 to 2015 With Factory Navigation
CIVIC 2013 to 2015 Non Navigation
CRV Non Navigation 2012 to 2016
CRV with Navigation 2010 to 2016
CRZ 2011 to 2013
FIT 2009 to 2019
INSIGHT 2010 to 2014
ODYSSEY 2008 to 2010 Non Navigation
ODYSSEY 2011 to 2013
ODYSSEY 2014 to 2017 EX, EX-L, Touring
ODYSSEY 2014 to 2017 LX
PILOT 2009 to 2015
RIDGELINE 2009 to 2019

ATOTO Headunit Compatibility

ATOTO uses 2 different headunit connectors. Please make sure you have the right one for the unit that you're installing!
DOES NOT FIT the 7-inch or 9-inch ATOTO A6 PF (A6G2A7PF, A6G2B7PF, A6G2C7PF, A6G209PF) - EXCEPT the 10.1-inch A6 PF, which DOES fit this adapter, listed below
ATOTO A6 (will fit older A6 models only)

ATOTO F7WE
ATOTO F7 XE
ATOTO F7 (All other Variations)

DOES NOT FIT the ATOTO S8 Lite or the ATOTO S8 MS models - with ONE exception, listed below, which DOES fit this adapter!
ATOTO S8 MS sold as S8G1104MS, S8EG1104MSB or S81104MSFX - one radio, three part numbers depending on where you bought it (this is the 10-inch floating-screen S8 MS). Check the model number printed on your radio or shown on your receipt.
ATOTO A6 PF 10.1-inch floating screen - A6G110PF (despite the A6 PF name, this one uses the standard 20-pin connector, unlike the 7-inch and 9-inch A6 PF)
ATOTO A5L 10-inch floating screen - A5LG110T and A5LG110PT (the 7-inch A5L does NOT fit - it uses the other connector)
ATOTO S8 10.1-inch S8G1104PRN
ATOTO S8UP 10-inch (Sold On Amazon!)
DOES NOT FIT the newest ATOTO lines that switched to a 16-pin harness - the V10 (V10G110OC) and the S8 Gen4 (S84G110PB). Quick check: this adapter is for radios that come with a 20-pin power harness. If yours came with a 16-pin harness, email us before you order and we will tell you which adapter you need.
ATOTO X10 9-inch (Sold by AutoHarnessHouse - Lower price than Amazon!)
ATOTO X10 10-inch (Sold by AutoHarnessHouse - Great Deal!) - also X10G110E, X10G110ESM and X10G110PESM (the 10.1-inch X10 with the passenger / co-pilot screen)
ATOTO X10 12.5-inch X10G225E

We carry a compatible adapter for these other ATOTO models. Click here for the ATOTO A6PF / S8 Lite / S8 MS version of this same adapter. Please email us or check out the Similar items below.
