Aftermarket Headunit Installation Adapters (for Stereo Replacement in pre-2013 Toyota vehicles)
-
The following adapters and the AXXESS ASWC-1 (if the vehicle has steering wheel buttons) will be used to install an aftermarket headunit in your Toyota:
- 20-pin Steering Wheel Control Adapter: Retains the Steering Wheel Controls, and the Auxiliary input. Connects directly to the AXXESS ASWC-1 (Not needed for ATOTO headunits - See direct wire adapter)
- Metra 70-1761 or AHH-70-1761 Pioneer Direct Wire Harness or AHH-70-1761SO Sony Direct Wire Harness or AHH-70-1761ATOTO ATOTO Headunit Direct Wire Harness: Connects +12V, Ground, and Speakers
- AXXESS ASWC-1: Interfaces with the OEM steering wheel controls (if applicable). Connects directly to the Backup Camera/Steering Wheel Control Adapter. This is not needed if you don't have steering wheel controls. (Not needed for ATOTO headunits - See direct wire adapter)

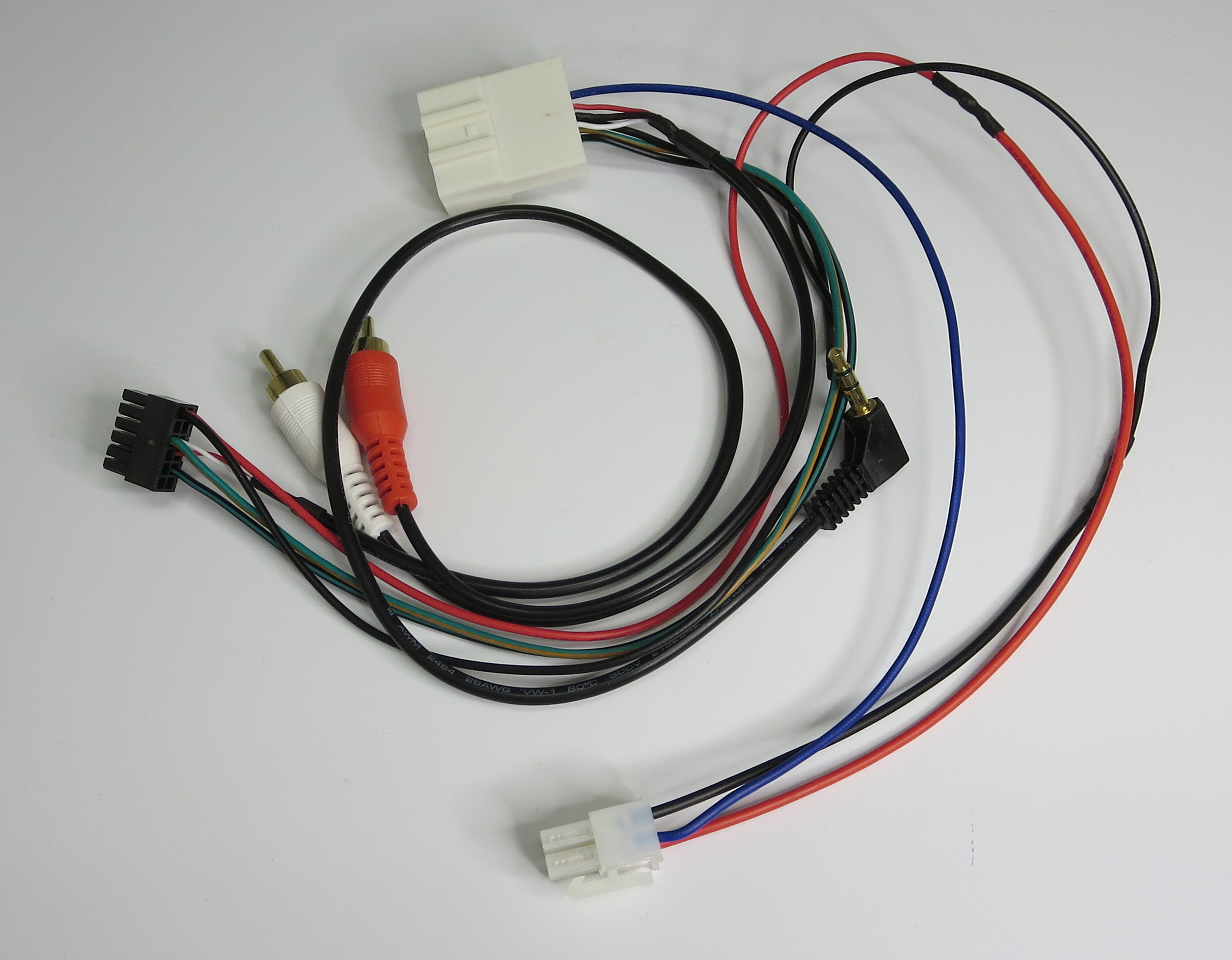

20-pin adapter (Steering Wheel Control Adapter)
Item Number: 7564
Description:
Install a new headunit and maintain steering wheel controls.
Installing a Pioneer/Sony/Kenwood/Alpine or other aftermarket headunit in your vehicle? This harness maintains many of the features of your stock unit.
The backup camera is not connected with this adapter. Please contact us if you have a backup camera and need an adapter for this. (Most vehicles that have the 20-pin connector do not have a backup camera).

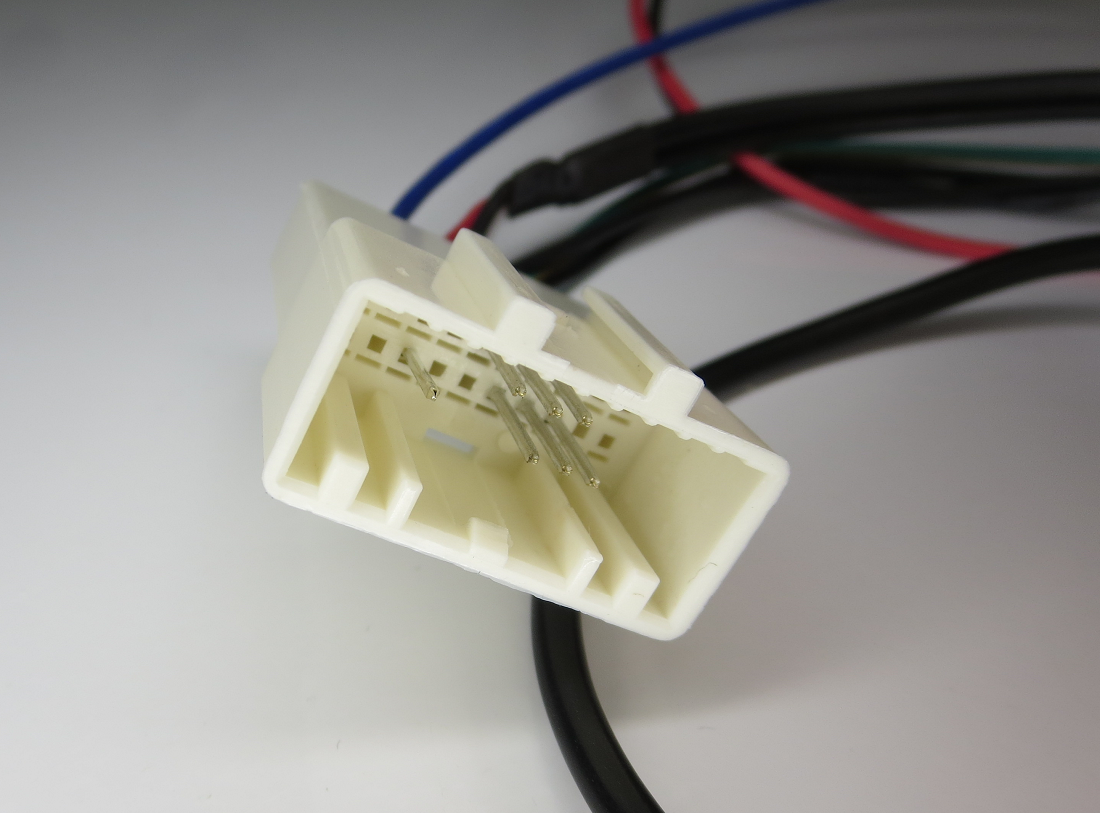

The harness connects in the place of the 20-pin connector. It will also provide the following signals to your new headunit:
-Auxiliary inputs(connected to the new unit via RCA connector. ***Analog audio input only. USB is also available below***)
-Steering wheel controls (provided to the new unit via 3.5mm connector pictured here. The AXXESS ASWC-1 UNIVERSAL INTERFACE is required to maintain steering wheel controls. See more information below***
-Vehicle Speed Sensor (VSS) signal.(only if your vehicle has this signal on the 20-pin connector)
You will receive:
-1 20-pin adapter harness
The harness is 100% plug and play.if purchased with a direct wire adapter. This adapter ships with the 6-pin interface connector for the Direct Wire Adapter if it is ordered in the same order as the direct wire adapter.
Please find the proper dash kit for your Vehicle (along with tons of other wiring information) in our NEW Vehicle Wiring & Compatibility Database:
Purchase:
Price: $34
10-pin and 6-pin adapter - Metra 70-1761 or compatible direct wire adapter: (Used to connect speaker signals and power for cars without JBL)
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power
Metra 70-1761: $6
Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.
Option 1 (Standard): Metra 70-1761 Price: $6 |
|
Option 2 (Upgrade): Direct wire harness for Pioneer Headunits The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your vehicle. It is pre-wired with the Pioneer connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $17 |
|
Option 3 (Upgrade with E-brake bypass): Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE) The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit) Direct wire harness: $23 |
Please select EITHER Option 1 or Option 2. You only need one of these.
Option 1 (Standard): Metra 70-1761 Price: $6 |
|
Option 2 (Upgrade): Direct wire harness for Sony Headunits The AHH-70-1761SO harness is the simplest way to install a Sony headunit in your vehicle. It is pre-wired with the Sony connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE) Direct wire harness: $20 |
Please select EITHER Option 1 or Option 2. You only need one of these.
Option 1 (Standard): Metra 70-1761 Price: $6 |
|
Option 2 (Upgrade): Direct wire harness for ATOTO Headunits The AHH-70-1761ATOTO harness is the simplest way to install a ATOTO headunit in your vehicle. It is pre-wired with the ATOTO connector on 1 end and the Toyota connector on the other. This will save you lots of soldering! (Full details located HERE) This adapter will also retain the steering wheel controls if your car has them! (it has the 20-pin connector attached) It will not retain the backup camera without other adapters. DO NOT ORDER THE 20-pin ADAPTER (above) WITH THIS ADAPTER. THIS ADAPTER INCLUDES EVERYTHING THAT YOU NEED TO CONNECT YOUR STEERING WHEEL BUTTONS TO THE ATOTO. ONLY BUY THIS ONE! (You also will NOT need the AXXESS ASWC-1) ATOTO Direct wire harness (20-pin SWC Version): $29 For ATOTO S8 and ATOTO F7 models (except S8MS or S8 Lite- See below): For ATOTO S8MS, S8 Lite, and ATOTO A6PF models : |
Axxess ASWC-1 Steering Wheel Control Adapter:
The AXXESS ASWC-1 connects your car's steering wheel audio controls to select aftermarket car stereos.
Price: $68
Installation:
Install the harness
-Verify that the vehicle is off.
-Carefully remove the plastic cover around the head unit and unscrew/unbolt as appropriate. Disconnect and remove the stock headunit.
-Connect the 20-pin connectors on the AutoHarnessHouse.com harness to the corresponding connectors on the vehicle's wiring harness.
-If you are not using the Direct Wire Adapter for Pioneer/Sony/ATOTO, cut off the 6-pin interface connector.
-Connect the red and white RCA connectors to the auxiliary audio input connector on the headunit
-Connect the 3.5mm plug to the "Remote wired input" plug on the back of the unit.
-Connect the red wire to the same switched 12V source that your headunit is connected to. This wire is a power wire for the AXXESS ASWC-1 UNIVERSAL INTERFACE.
Configure the steering wheel controls
-This installation will require the AXXESS ASWC-1 UNIVERSAL INTERFACE to properly maintain steering wheel controls. Most vehicles should be automatically recognized by the AXXESS ASWC-1. If the unit does not automatically recognize the car, reprogram the ASWC-1 by pressing the reset button on the ASWC-1 for 3 seconds, release, and then follow the instructions in the ASWC-1 installation guide.
Compatibility:
For Subaru Models, please go here! The compatibility varies by model and the Aftermarket Installation page will help you identify the correct parts.
2004-2011 Toyota Camry
2004-2011 Toyota Prius
2004-2011 Toyota RAV 4
2004-2012 Toyota Sienna
2004-2012 Toyota Tacoma
2004-2012 Toyota Tundra
