Subaru Transplant Harness - Information page

This page provides information on the Fujitsu Ten navigation transplant harness. This harness has been a very popular request recently and while we LOVE interacting with our customers, we simply cannot answer all questions as quickly as a webpage can. This page is intended to provide all the details so that every customer is informed prior to purchase.

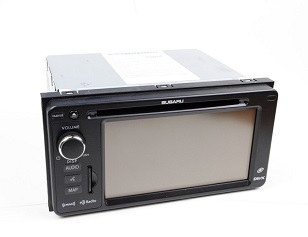

This harness is only for transplant of a Fujitsu Ten Navigation unit into a newer model (2011-2015) Subaru. We provide custom harnesses for other applications to our customers every day. Please email us if you need something other than the custom harness described here.

If you have any additional questions/concerns/feedback, shoot us a message! We are happy to help.

Description:

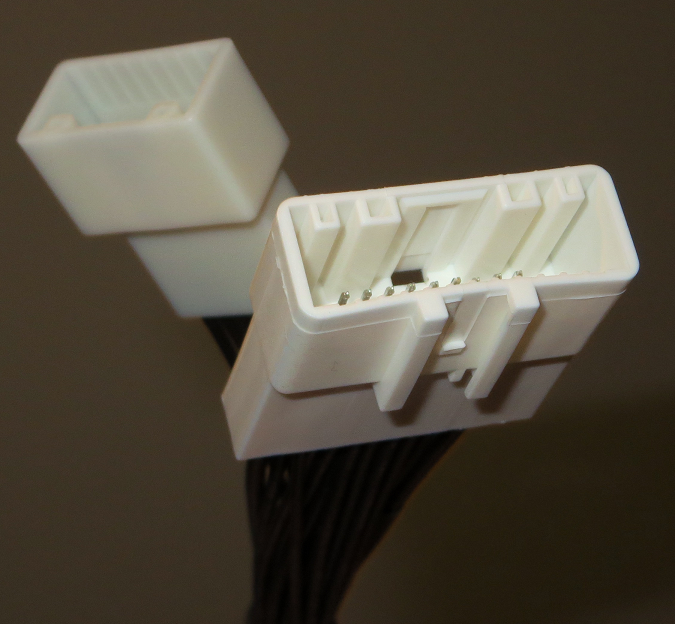

This is an adapter harness that connects to the 20-pin and 16-pin connectors on your vehicle's factory wiring harness. It will provide the necessary electrical connections to install(Transplant) a Fujitsu Ten navigation unit into most newer non-navigation subaru vehicles.

Installation is plug and play. Depending on your model of vehicle, you may need to wire in the VSS or Reverse signals(Reverse is not needed if you do not intend to connect a backup camera connected to the navigation unit).

What functionality is retained?

-Speaker/OEM Amplifier connections
-Auxiliary Audio connections (USB is a separate harness...See below)
-Steering Wheel Switches
-Bluetooth Microphone

**VSS (Vehicle Speed Sensor), Reverse(Not needed unless the backup camera will be connected to the navigation unit), and E-brake inputs will be passed to the Fujitsu Ten if they exist on your vehicle's radio wiring harness. If they are not factory-wired to the connector, you will be provided wires that can be connected for the VSS and Reverse signals elsewhere on the wiring harness and the E-brake signal will be grounded.**

We do not supply GPS antennas. If you intend to use the navigation functionality, these antennas are available on Amazon:
SEE LISTING HERE

"Check Audio System" notice on the MFD display

Fujitsu Ten Nav units can't communicate with the MFD. The MFD will display a "Check Audio System" notice when the transplant harness is installed because this communication link is no longer available. You can get rid of this message by pulling the negative battery terminal and waiting 10 or 15 minutes. Upon reconnection, the MFD should be reset and the message should not display.

Lead Time:

All transplant harnesses are hand-assembled and built-to-order. Most orders will be shipped within 10 days but could take as long as 18 days. You will recieve an email when the order ships. If you need the harness by a specific date, please contact us regarding the option to expedite assembly.

Pricing:

Here is the pricing for the components that you may need for the install:

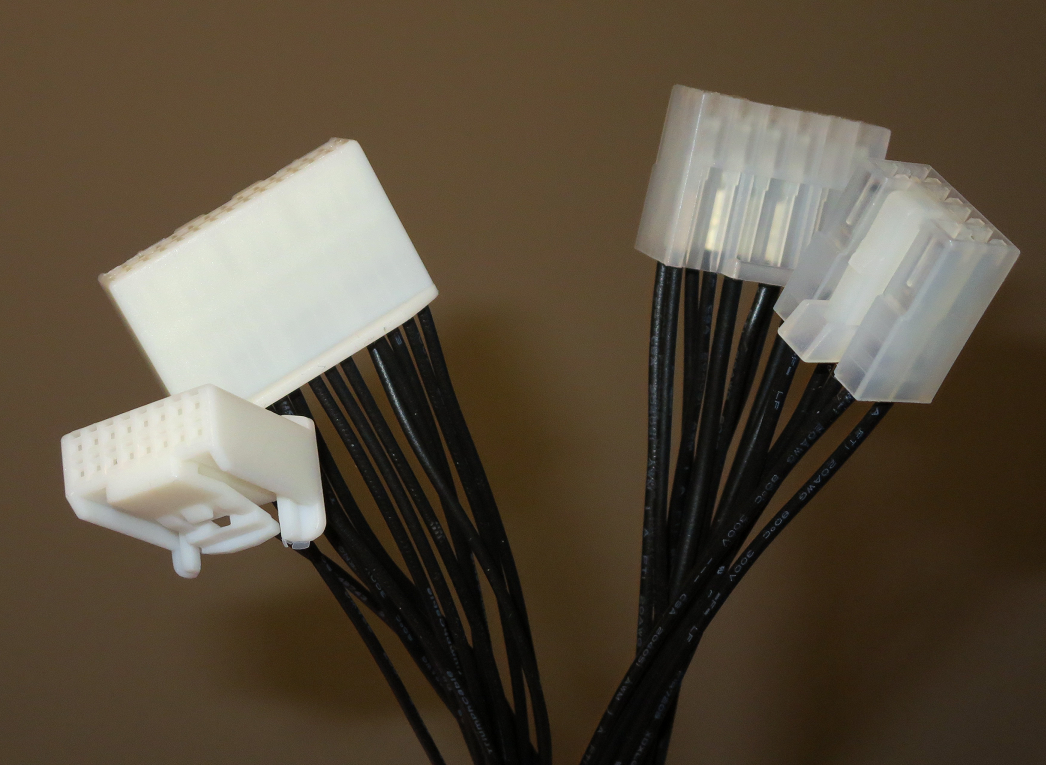

-Main Harness(depicted above): $61

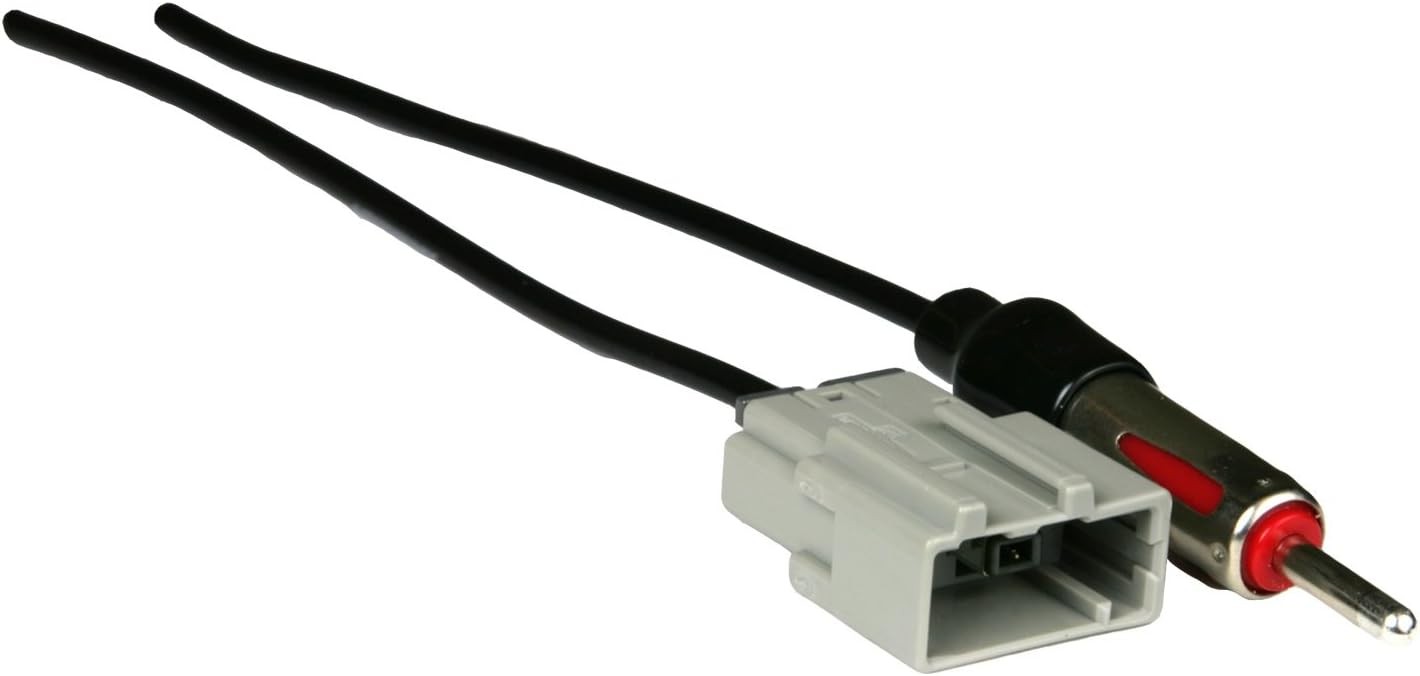

-AM/FM Antenna adapter: $19
-USB adapter: $25 (Not needed for CV629UM and CF625UM headunits. Existing connector will fit.)
-XM radio adapter: $30 (This adapter allows connection of a standard XM radio antenna to the headunit.)
-XM radio antenna: $25 (This antenna requires the adapter above to fit the Fujitsu-Ten unit)

Before purchasing, Please verify that You can answer "Yes" to the following questions:

Does your vehicle has a factory intalled non-navigation headunit/radio?

Will you be installing a Fujitsu Ten Navigation unit? (If you are installing an aftermarket unit, please Contact Us)

Is your Subaru model year 2011-2015?

Purchase:

Package Option

Main Harness, AM/FM radio adapter, USB adapter $105.00 USD Main Harness and AM/FM radio adapter only $80.00 USD Main Harness only $61.00 USD

OEM Backup camera configuration:

Currently displays in Multi-Function Display No Backup Camera Currently displays on OEM headunit Something else

Model/Year(STI if applicable):

OEM Headunit Model number:

XM Radio Antenna and Adapter:

Package Option

XM radio antenna with adapter $55.00 USD XM radio adapter only $30.00 USD

Please contact us if this form does not fit your needs.

Options not listed on this page(Please email us if you are interested in these)

Backup Camera Relocation - For vehicles with OEM backup camera displayed on the Multi-Function Display (MFD), we can provide a harness that will relocate the backup camera feed from the MFD to the Fujitsu Ten headunit.
Aftermarket Backup Camera Installation - We sell a harness here that will allow installation of an aftermarket backup camera with a Fujitsu Ten headunit. We can integrate this harness into the transplant harness sold here.

Aftermarket Headunit installation - We can build a harness to fit your needs. Please contact us!
