Direct wire harness for ATOTO Headunits (fits Nissan and Subaru - See compatibility information below)

Item Number: AHH-70-7552ATOTO

Camera

Camera Camera

Description:

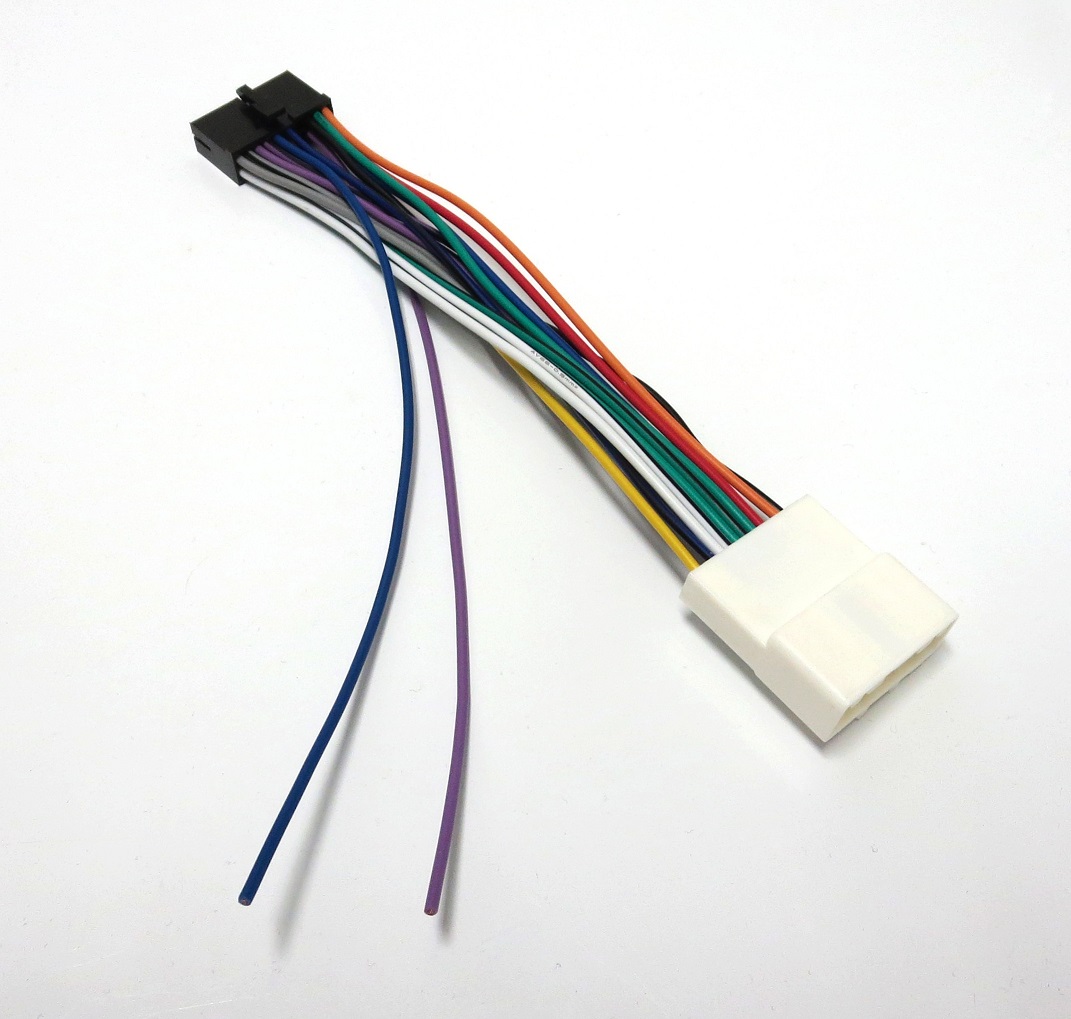

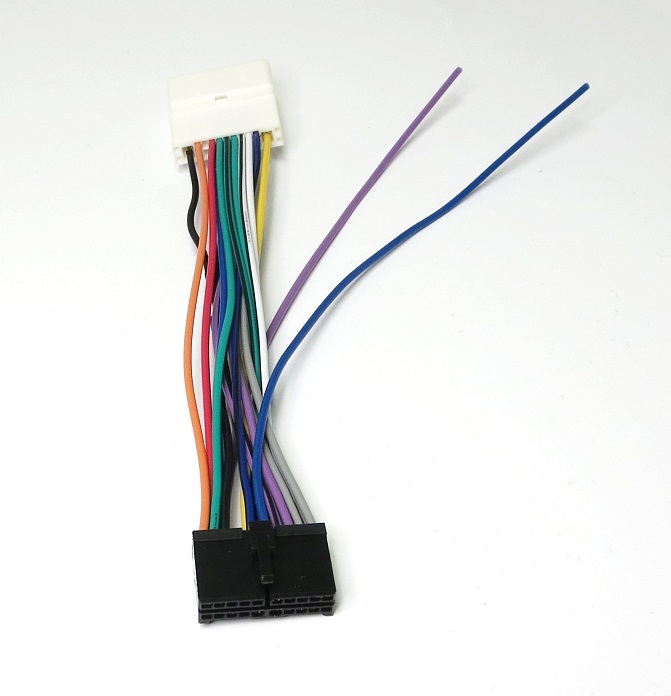

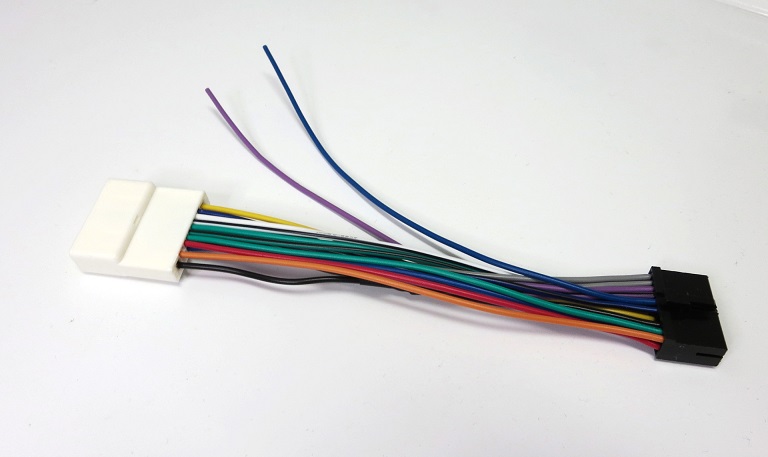

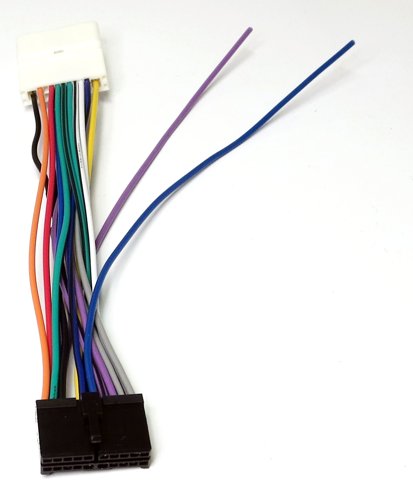

This harness is the simplest way to install a ATOTO headunit in your Subaru or Nissan. It is pre-wired with the ATOTO connector on 1 end and the Subaru or Nissan connector on the other.

The Steering wheel button signals are connected on this adapter for Suburu vehicles and MOST Nissan vehicles. Some Nissan vehicles have the steering wheel buttons tied to a different connector because the button signals are routed through a multi-information display. In this case, the steering wheel button signals will need to be connected differently though an AXXESS ASWC-1 module. We can help you with the wiring for this if you email us! (Usually the buttons signals are either on a 32-pin or 40-pin connector for these Nissan vehicles)

Backup Camera - IMPORTANT: This adapter does not retain the backup camera. If your vehicle has a backup camera, you will use this adapter combined with the backup camera adapter that we offer. For most vehicles, this will be plug and play. Please contact us at inquiry@autoharnesshouse.com for details!

What's included:

-ATOTO Direct wire adapter (20-pin to fit Nissan and Subaru vehicles)
-Reverse and Amp Turn-on signals are provided from the ATOTO connector since these may need to be connected elsewhere on the vehicle.

Installation:

1) Just connect both ends (to the ATOTO headunit and to the Vehicle)
2) For Nissan vehicles, you will need to connect the black wire to ground because most Nissan vehicles do not have a ground wire built into the 20-pin wiring. Please ask us for more information on this if you need help! (email to inquiry@autoharnesshouse.com)
3) Program the steering wheel buttons on the ATOTO on-screen menu. That menu will allow you to assign the function of each button so that the ATOTO unit knows what function to perform when you press a steering wheel button.

ATOTO Headunit Compatibility

ATOTO A6 KL

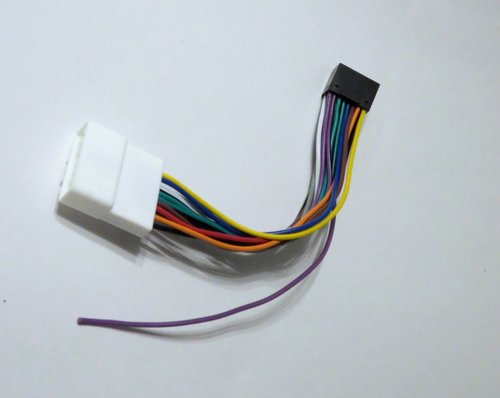

DOES NOT FIT ATOTO A6 PF model
ATOTO A6 (All other Variations)

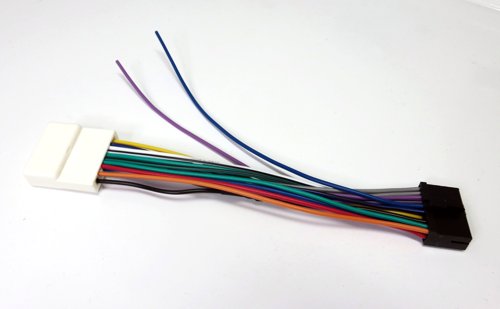

ATOTO F7
ATOTO F7 XE
ATOTO F7 (All other Variations)

DOES NOT FIT ATOTO S8 Lite model
ATOTO S8 Standard

ATOTO S8 Premium
ATOTO S8 Pro
ATOTO S8 Ultra
ATOTO S8 (All other Variations)

and many other models that we haven't checked...

Purchase:

Price:$33


Fitment:

(This is NOT a complete list. Please help us update it. If a known model is not listed, let us know)

Subaru
2012-2014 Crosstrek XV (w/o nav)
2009-2015 Forester (w/o nav)
2008-2014 Impreza (w/o nav)
2010-2014 Legacy (w/o nav)
2010-2014 Outback (w/o nav)
2010-2015 WRX and WRX STI (w/o nav)
***This harness is not compatible with any 2016 Subaru vehicle. Please see AHH-70-1761ATOTO for the correct harness.

Infinity
2008-2013 G37
2006-2008 G35

Mazda
2016 CX-5 Sport

Nissan
2009-2020 370Z
2007-2024 Altima
2008-2020 Armada (Non-Bose Systems Only)
2009-2014 Cube
2008-2024 Frontier
2011-2017 Juke
2007-2020 Maxima (w/o nav or tech pkg.)
2007-2008 Maxima (w/ nav)
2009-2020 Murano S
2011-2018 NV
2008-2020 Pathfinder
2011-2016 Quest
2008-2023 Rogue
2007-2024 Sentra
2008-2024 Titan
2007-2024 Versa
2009-2015 Xterra

Aftermarket headunits available for installation in your Subaru/Nissan

Nissan Bluetooth Module Bypass

Nissan Frontier Bluetooth Bypass Carplay

Nissan Vehicles ONLY! Some Nissan vehicles have a separate bluetooth unit that is wired between the main audio receiver and the steering wheel controls. If your vehicle has this, you will need the Nissan Bluetooth Module Bypass Plug to get your OEM steering wheel buttons to function properly. can check our vehicle compatibility database for details on your specific vehicle to see if this adapter is recommended for your vehicle or email us if the information isn't found!

CLICK HERE FOR MORE INFORMATION!


Subaru USB adapter

Price:$17

Subaru Owners: Need the 16-pin adapter?

Aux port adapter for Subaru WRXRetain 3.5mm jack on Subaru Crosstrek

The 16-pin adapter retains functionality of the auxiliary input in the console. The wiring color code for the 16-pin harness/connector is as follows:

Gray - Reverse signal (Signal is NOT present on the WRX or Forester. Most pre-2012 cars also do not have this signal.)
Green - E-brake signal (Signal is NOT present on the WRX or Forester. Most pre-2012 cars also do not have this signal.)

Option 1:
Red RCA - Right Auxiliary audio input
White RCA - Left Auxiliary audio input

Option 2:
3.5mm plug - Stereo Auxiliary input

***Harman Kardon vehicles will include an additional wire. This wire is a +12V power connection for the stock Harman Kardon amplifier. It must be connected to the blue Amp turn-on wire on the 20-pin connector.***
