Pioneer's line of Car Audio Receivers (Digital Multimedia Receivers) - Which one has the features that I need?

By Brian Doll, AutoHarnessHouse.com Technical support

One of the questions that we often get is "Which headunit should I buy". The answer to that question varies dramatically based on what a customer's budget is and which features they plan to use. As you consider which features you will need, here are some features that are often desired:

• Apple Carplay and/or Android Auto (Also, is wireless carplay needed or do you mind plugging in the phone with USB?)
• Onboard Navigation (Built into the headunit, not through a connection with a phone)
• CD or DVD drive (CDs are becoming less common these days but some customers still want the option to play them in the car. Note that none of the DMH models below have a disc drive — Pioneer's AVH line is the one with DVD/CD drives, and it is fading from the lineup.)
• Front Camera input/Support for an extra video input
• Screen Size - Usually aftermarket screens will not be the exact same size as your OEM screen but it is important to consider how the screen will look in your car's dash. If you buy a doubledin with a massive floating screen, will it cover up your AC controls? Perhaps it is a good fit but you'll mount it a little bit further back in the dash so that the screen sits flush on the dash rather than spaced out a half inch.

Another consideration is "Are you set on a certain brand?" We've written this article about Pioneer Headunits and we also have a similar article on Sony units because brands are very popular with our customers. We have plug and play adapters for many vehicles that will fit the Pioneer units and these adapters will make the installation plug and play. In general, you will get what you pay for. Chinese Android headunits tend to be feature-rich and cheap but they don't have good tech support and are sometimes glitchy. We've built adapters to be plug and play with ATOTO brand units which are one of the better "cheap" brands.

The Pioneer Lineup

When it comes to car audio systems, Pioneer is a trusted brand known for producing high-quality and feature-packed head units. But with so many options available in the market, it can be challenging to choose the best one for your needs. In this article, we'll help you narrow down your options and select the perfect Pioneer head unit for your car. Pioneer makes more models than we can review here but here are some of our favorites! (We'll update this regularly. This article was last updated in August 2026.)

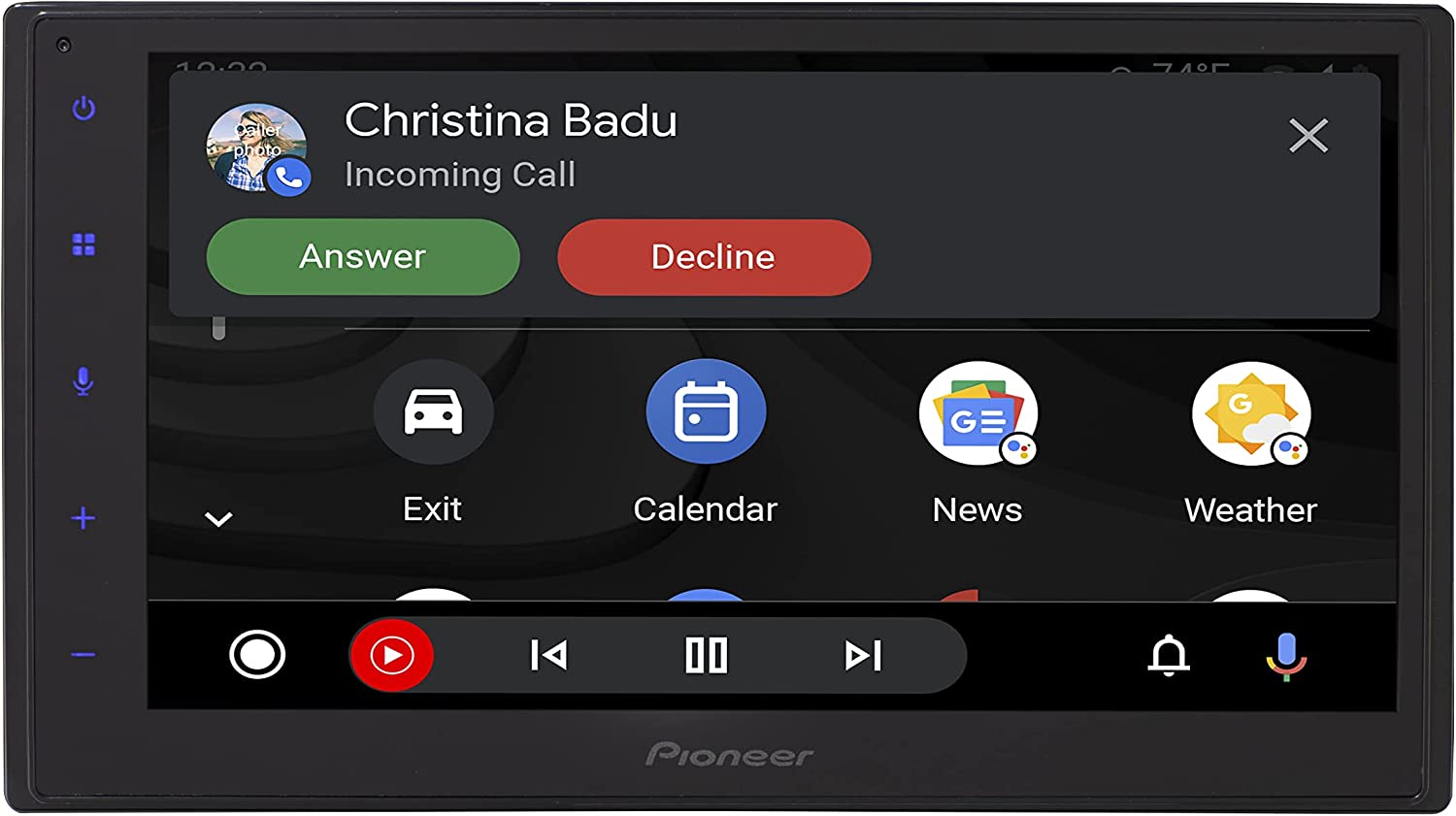

Pioneer DMH-1770NEX:

Buy on Amazon HERE

The Pioneer DMH-1770NEX is a newer model that offers an impressive list of features. It features:

• 7-inch touchscreen display with a resolution of 800 x 480 pixels
• Apple CarPlay, Android Auto, and Bluetooth connectivity.
• Supports up to two camera inputs

It does not have built-in navigation, but it is compatible with various navigation apps. Other features of the Pioneer DMH-1770NEX include a customizable user interface, FLAC audio playback, and a built-in MOSFET amplifier. It also supports SiriusXM satellite radio and is compatible with iDatalink Maestro, allowing for seamless integration with your car's factory systems. Worth knowing: Pioneer has released the DMH-1800NEX as this unit's successor. For a little more money it upgrades the 1770NEX's resistive screen to a nicer capacitive one (the kind of glass your phone uses), so if the 1770NEX is sold out or the prices are close when you look, buy the DMH-1800NEX instead — everything else about it is the same or better.

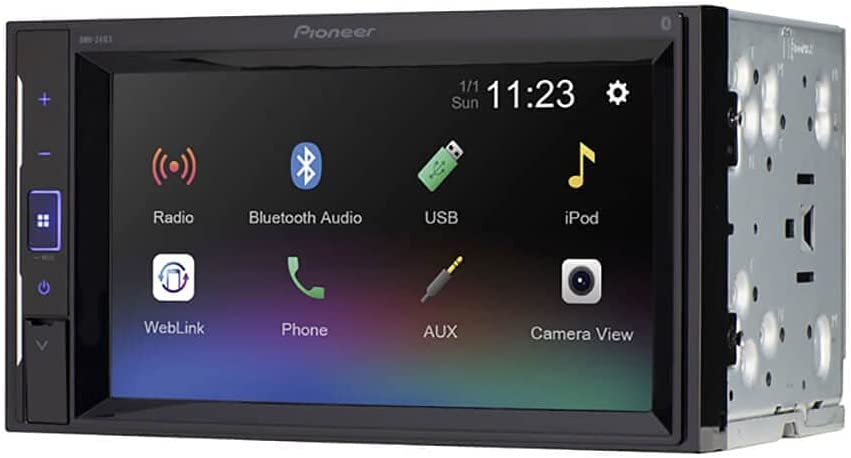

Pioneer DMH-241EX:

Buy on Amazon HERE

If you're looking for a Pioneer double-DIN car stereo unit that offers excellent value for money, the Pioneer DMH-241EX is a great option to consider. While it doesn't have all the features of the more expensive models, it offers a great balance of price and performance. (If you need Apple CarPlay support, see the DMH-1770NEX, discussed above)

If you're looking for an affordable and reliable option to upgrade your vehicle's OEM stereo system, the Pioneer DMH-241EX is an excellent choice. With its simple yet functional design and impressive range of features, this budget-friendly car stereo unit delivers excellent value for money. Here are some of the key features of the Pioneer DMH-241EX:

• Compatibility: The DMH-241EX is compatible with a wide range of audio and video formats, including MP3, WMA, AAC, WAV, and MPEG-4. This means you can play music from various sources, including your phone or a USB drive. You can also watch videos loaded on a USB drive (note that there is no disc drive — this unit does not play CDs or DVDs).
• Connectivity: The Pioneer DMH-241EX features Bluetooth connectivity, allowing you to stream audio wirelessly from your phone or other compatible devices. You can also use Bluetooth to make hands-free calls while driving.
• Built-In Amplifier: The DMH-241EX features a built-in amplifier that delivers 50 watts RMS x 4 channels. This means you can enjoy high-quality sound without needing an additional amplifier. The unit also includes a 13-band equalizer, which lets you fine-tune the audio to your liking.
• User-Friendly Interface: The DMH-241EX features a simple and intuitive user interface, making it easy to navigate and control the various features. The 6.2-inch touchscreen display provides clear and detailed visuals, and you can customize the interface to suit your preferences.
• Smartphone Features: To be clear, the Pioneer DMH-241EX does NOT have Apple CarPlay or Android Auto — that is the main thing you give up at this price. What you do get is Amazon Alexa voice control (when paired with Pioneer's Vozsis app) and WebLink compatibility for using certain phone apps on the stereo's screen. If CarPlay or Android Auto is a must-have, spend the extra money on the DMH-1770NEX above.


In conclusion, if you're looking for an affordable and reliable option to upgrade your vehicle's OEM stereo system, the Pioneer DMH-241EX is an excellent choice. With its Bluetooth connectivity, built-in amplifier, and user-friendly interface, this budget-friendly car stereo unit offers an impressive range of features and delivers excellent value for money — just remember it does not have Apple CarPlay or Android Auto.

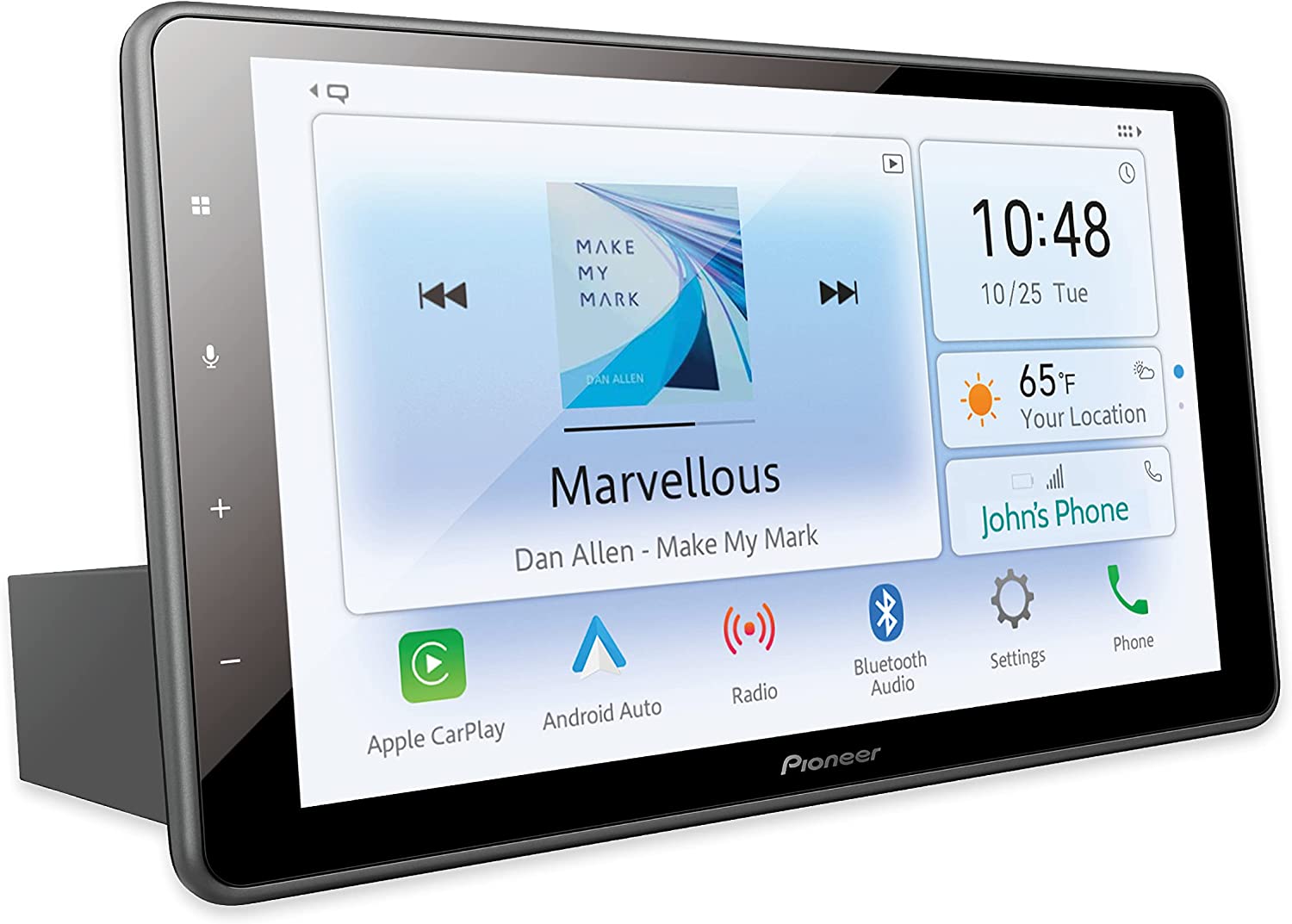

Pioneer DMH-WT3800NEX:

Buy on Amazon HERE

The Pioneer DMH-WT3800NEX is a highly advanced car stereo system designed to provide drivers with an exceptional audio experience. With its sleek design, wireless CarPlay, and many other features, the DMH-WT3800NEX is an excellent choice for drivers who want a premium audio system in their vehicle.

Here are some of the key features of the Pioneer DMH-WT3800NEX:

• Wireless CarPlay: One of the standout features of the DMH-WT3800NEX is its wireless CarPlay integration. This means you can connect your iPhone to the car stereo system without having to use a cable. This allows for a more convenient and clutter-free experience when using CarPlay, making it easy to access your phone's features, including music, calls, messages, and more.
• Single-DIN Chassis: Despite being a highly advanced car stereo system, the Pioneer DMH-WT3800NEX features a single-DIN chassis. This means that it can fit into a variety of vehicles, including older cars that don't have double-DIN slots. The smaller form factor also makes it easier to install and leaves more room for other accessories in your vehicle.
• Touchscreen Display: The DMH-WT3800NEX features a 6.8-inch touchscreen display with a resolution of 800 x 480 pixels. The display is highly responsive and provides clear and detailed visuals. You can use the touchscreen to control various features of the car stereo system, including music playback, navigation, and more.
• Built-In Amplifier: The Pioneer DMH-WT3800NEX features a built-in amplifier that delivers high-quality sound. The amplifier supports a maximum output of 50 watts per channel, which is more than enough to fill your vehicle with rich and detailed sound.
• Compatibility: The DMH-WT3800NEX is compatible with a wide range of audio formats, including FLAC, MP3, and WMA. This means you can play music from various sources, including your phone, USB drive, or SD card. It also supports various video formats, making it a great choice for those who enjoy watching movies or music videos while on the go.

Other features of the Pioneer DMH-WT3800NEX include Bluetooth connectivity, SiriusXM satellite radio compatibility, and support for various navigation apps, including Waze and Google Maps.

In conclusion, the Pioneer DMH-WT3800NEX is an excellent choice for drivers who want a premium audio system in their vehicle. With its wireless CarPlay, single-DIN chassis, and many other advanced features, it delivers exceptional performance and sound quality. Whether you're a music lover or a fan of advanced technology, the Pioneer DMH-WT3800NEX is sure to impress.

One more note on wireless CarPlay: if you'd rather have a conventional double-DIN unit than the WT3800NEX's floating-style screen, take a look at the Pioneer DMH-W4660NEX. It gives you WIRELESS Apple CarPlay and Android Auto on a 6.8-inch capacitive touchscreen in a standard double-DIN chassis, with Amazon Alexa, HD Radio, and high-voltage RCA preouts for anyone planning to add external amplifiers.

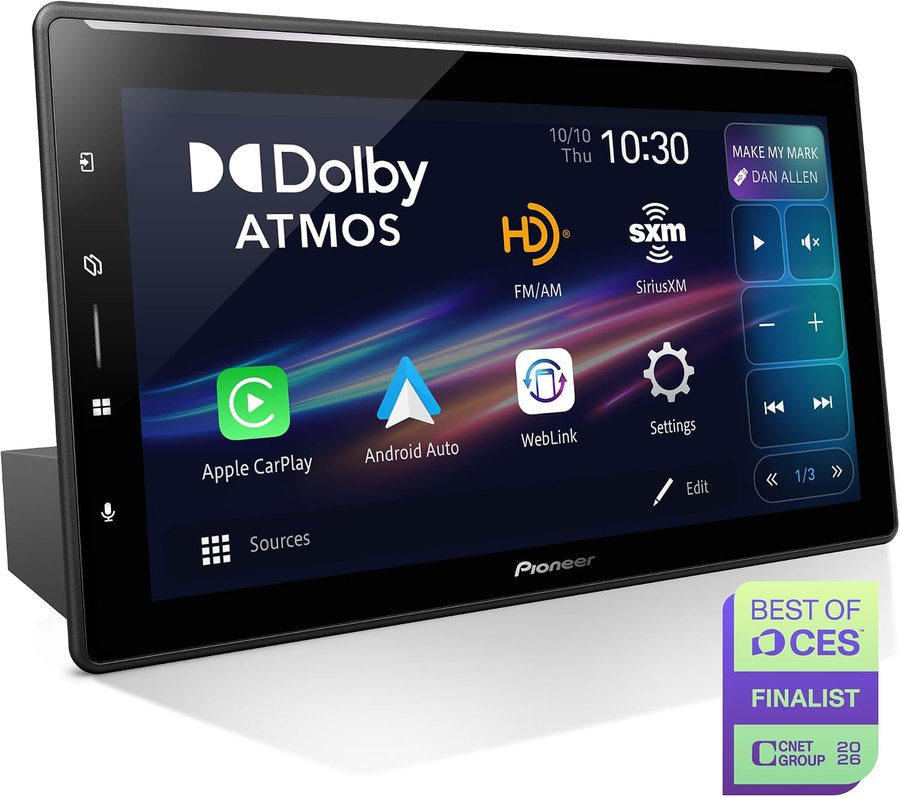

Pioneer DMH-WT8000NEX "Sphera":

Buy on Amazon HERE

New for 2026, the Sphera (DMH-WT8000NEX) is Pioneer's flagship and honestly one of the most impressive aftermarket units we've seen from anyone. It puts a big 10.1-inch HD capacitive touchscreen on an adjustable floating mount over a single-DIN chassis, so it fits a huge range of vehicles — just like our advice on any floating screen, measure your dash first and think about whether it would block vents or AC controls. You get wireless Apple CarPlay and Android Auto, WiFi, Bluetooth, HD Radio, and dual camera inputs. Its headline feature is that it is the first aftermarket receiver to support Dolby Atmos spatial audio through Apple CarPlay (with Apple Music and other Atmos-capable apps), which is genuinely a step beyond what any other headunit in this article can do. It is expensive, but if you want the best screen and sound Pioneer makes, this is it.

• 10.1-inch HD capacitive floating touchscreen on a single-DIN chassis.
• WIRELESS Apple CarPlay and Android Auto — no cable needed.
• Dolby Atmos spatial audio via CarPlay — a first for aftermarket headunits.
• HD Radio, SiriusXM-ready, Bluetooth, and WiFi built in.
• Dual camera inputs and iDatalink Maestro compatibility for factory feature retention.

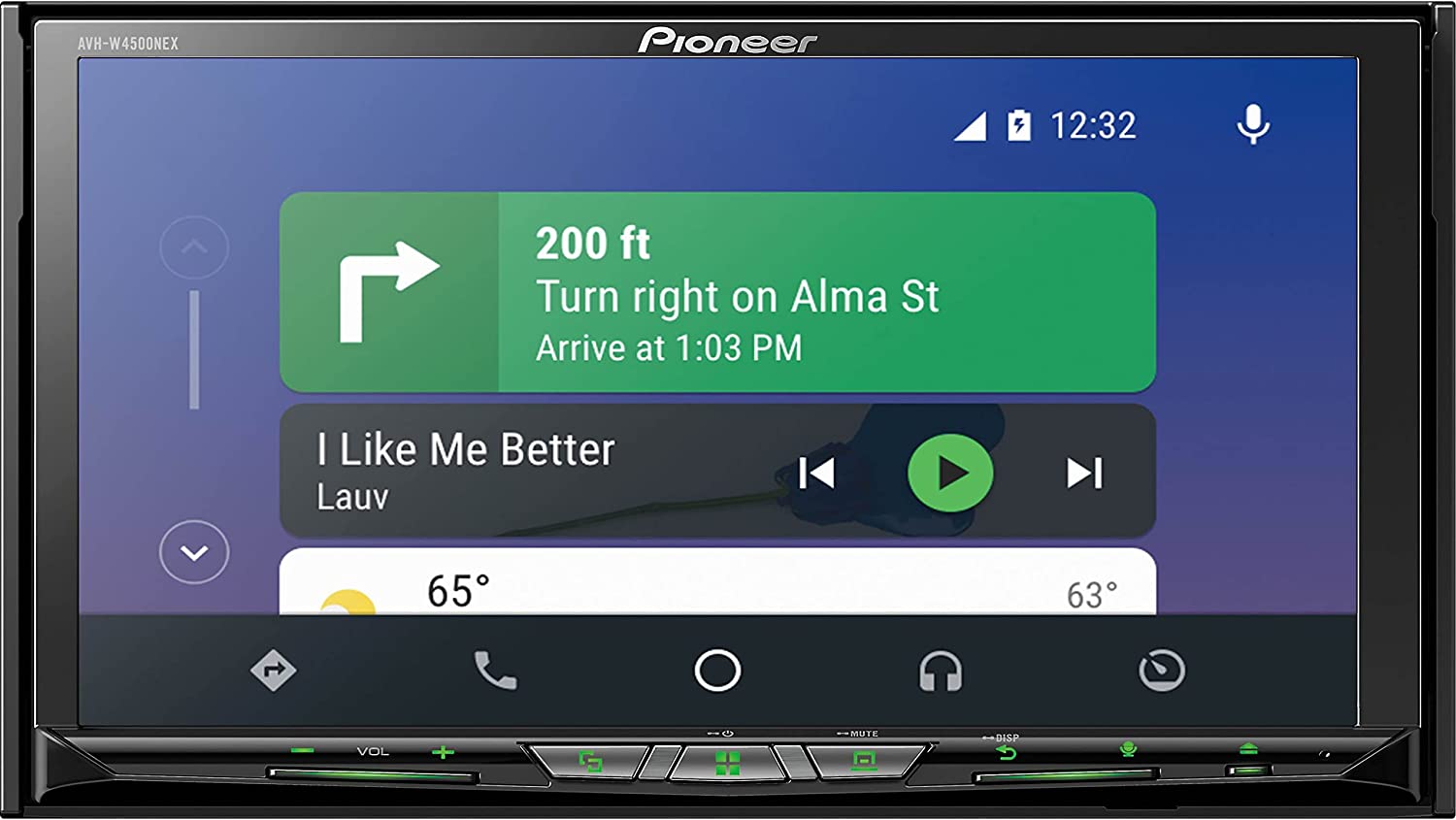

What happened to the AVH-W4500NEX?

Earlier versions of this article recommended the Pioneer AVH-W4500NEX as the premium pick — it was the wireless CarPlay unit with a built-in DVD/CD player and navigation. That model is now discontinued, and as of this update (August 2026) the remaining Amazon stock is selling for well above its original price, so we can't recommend it unless you specifically need a disc drive and find one at a sane price. Pioneer's disc-drive AVH line in general is winding down — the DMH (mech-free) models above are where the lineup has gone.

Our Thoughts

Now, let's talk about our top choice for a customer on a budget. Our pick is the Pioneer DMH-1770NEX (or its newer twin, the DMH-1800NEX, if prices are close). While it lacks some of the features present in higher-end models, it has Apple Carplay and Android Auto, which are the most desired features, plus iDatalink Maestro compatibility for factory feature retention. It has a user-friendly interface and its affordable price tag makes it a great choice for those who want to upgrade their car audio system without breaking the bank.

If you can't stretch to the 1770NEX, the DMH-241EX is a solid basic touchscreen as long as you're okay living without CarPlay and Android Auto. Going the other direction, the DMH-WT3800NEX is the affordable path to wireless CarPlay, and the Sphera DMH-WT8000NEX is the money-no-object pick with its 10.1-inch screen and Dolby Atmos.

Did I mention that we offer plug and play adapters for Honda, Toyota, Nissan, Subaru, and Scion vehicles? See the links below or check out our database page to see the parts that we recommend for your specific vehicle!

Pioneer Headunit Direct Wire adapter for Subaru and Nissan (fits 2010-2015 Non-Navigation Subaru and 2007-2021 Nissan Vehicles)

Toyota and Subaru - Direct wire harness for Pioneer Headunits

1998-2008 Honda/Acura - Direct wire harness for Pioneer Headunits

Direct wire harness for Pioneer Headunits (fits 1990-2007 Nissan/Infiniti)

Final Thoughts

We wish you the best with your install! As automobiles have become more complex, so have the infotainment systems. Hopefully this article has provided you with enough information to install your equipment the right way. Our support team is here and happy to help if you have questions or are confused about details. Email us at inquiry@autoharnesshouse.com if there is anything that we can clarify or if you need something more custom than the standard, recommended set of parts for your vehicle.

---
