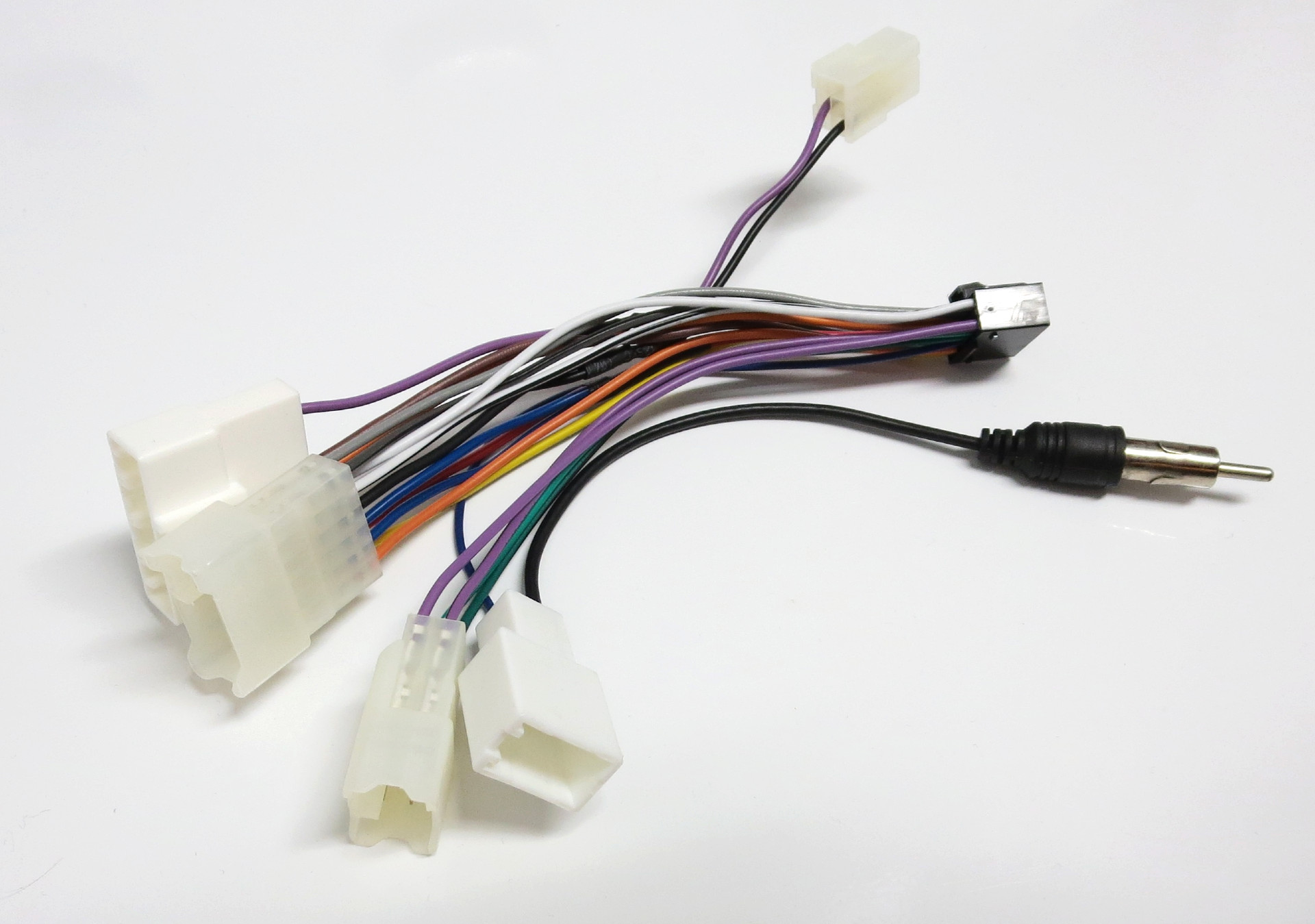

Direct wire harness for ATOTO A6PF Headunit and ATOTO S8 Lite (fits Toyota and Subaru - See compatibility information below)
Item Number: AHH-70-1761ATOTO-A6PF
***To purchase the 28-pin adapter for your vehicle please find it here (based on your vehicle make): Toyota Subaru ***
Description:

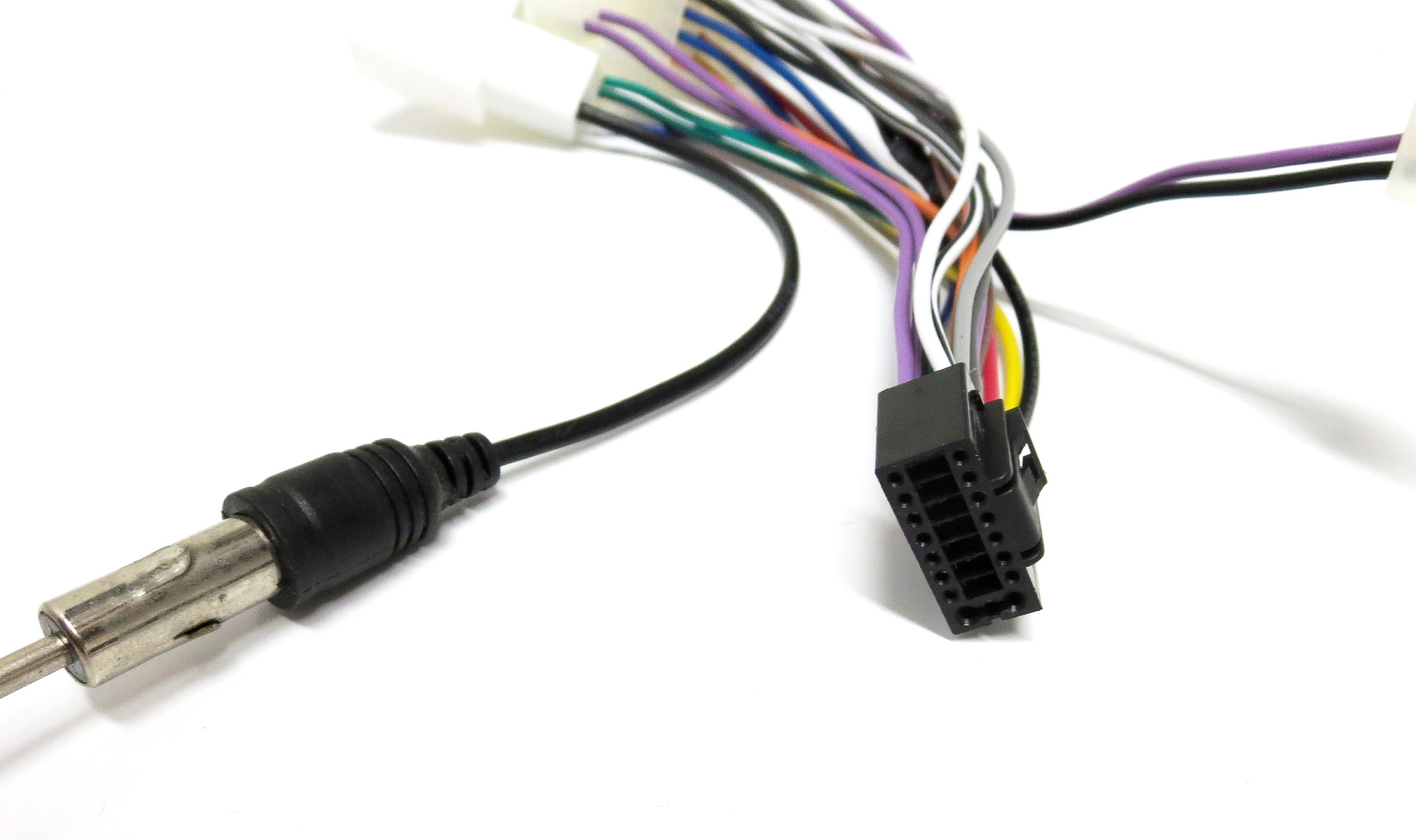

If you've got the ATOTO A6 Professional (A6 PF) headunit, you're in the right place! The wiring connector for the ATOTO A6 PF is different from the other ATOTO models (See the "Standard" ATOTO wiring adapter for Toyota and Subaru HERE) This harness is the simplest way to install a ATOTO A6 PF or S8 Lite headunit in your Subaru or Toyota. It is pre-wired with the ATOTO A6 PF connector on 1 end and the Subaru or Toyota connector on the other.
Subaru Owners: Please check out our full line of products for your vehicle HERE!
Toyota Owners: Please check out our full line of products for your vehicle HERE!
Backup Camera - IMPORTANT: This adapter does not retain the backup camera. If your vehicle has a backup camera, you will use this adapter combined with the backup camera adapter that we offer. For most vehicles, this will be plug and play. Here are the basics:
-2013+ Toyota Vehicles will have either a 16-pin or 24-pin backup camera connection. These vehicles will need the additional backup camera adapter sold at the second "Add to Cart" link below. Most Toyota vehicles have the 24-pin backup camera connection (especially 2015 and newer vehicles...If you have a 2013 vehicle, it will most likely have the 16-pin connection) Feel free to email us with your vehicle model and year if you are not sure.
-Older Toyota vehicles(2011 and earlier) will require a custom backup camera adapter. Please email us about this part and inquiry@autoharnesshouse.com.
-Subaru Vehicles - For Subaru vehicles with a backup camera, buy the adapter here instead of the adapter sold on this page. The adapter on this page has the backup camera adapter built in and you won't need to do any modification.
What's included:
-ATOTO A6 PF Direct wire adapter.
-28-pin or 20-pin connector (based on your selection below) is provided to connect the steering wheel buttons and the reverse signal in your vehicle to the ATOTO headunit without splicing wires.
-AM/FM antenna adapter (not needed for all vehicles)
-Installation instructions are included.
Installation:
1) Just connect both ends (to the ATOTO A6 PF headunit and to the Vehicle)
2) Connect the 28-pin connector if your vehicle has it. If your vehicle has the 20-pin connector (only for Toyota and Scion vehicles), we recommend purchasing the 20-pin version of this adapter that we sell on this page. If you've ordered the 28-pin version, we can provide an adapter to go between the 28-pin and 20-pin connectors (cost is $20 - Please emails us at inquiry@autoharnesshouse.com).
ATOTO Headunit Compatibility
ATOTO A6 PF model
ATOTO S8 Lite model
For all other ATOTO models, see the ATOTO direct wire adapter sold on this page.
Purchase:
Price:$29

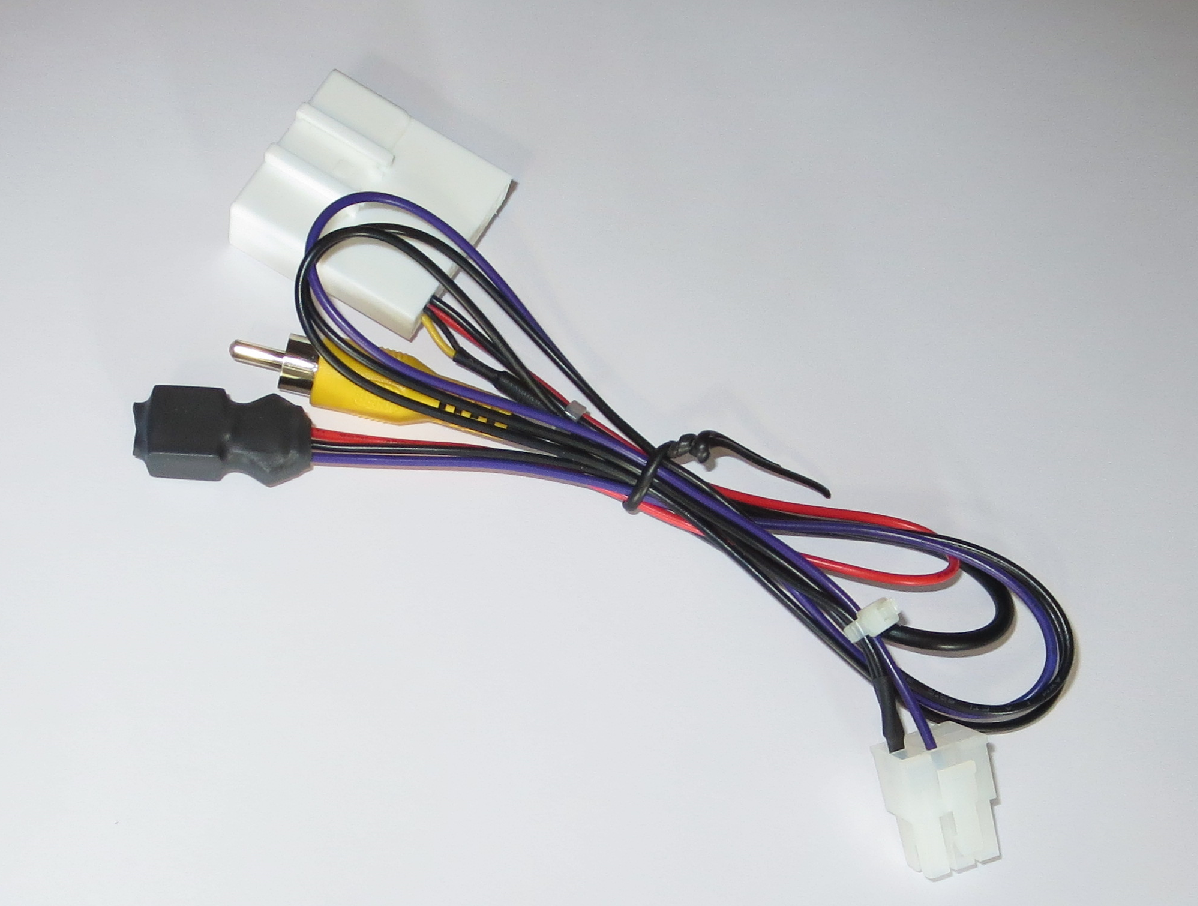

Toyota Only - Backup Camera Add-on adapter:
This is a plug and play adapter to retain the backup camera on Toyota vehicles. This adapter will plug into the ATOTO direct wire adapter directly. For Subaru vehicles, please email us with your vehicle model and year.
Fitment:
(This is NOT a complete list. Please help us update it. If a known model is not listed, let us know)
Subaru
2019-2022 Ascent (non-Harman Kardon)
2013-2022 BRZ
2012-2014 Crosstrek XV (w/ nav)
2015-2022 Crosstrek (both nav and non-nav models - non-Harman Kardon models only)
2012-2015 Forester (w/ nav)
2016-2022 Forester (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Impreza (w/ nav)
2015-2022 Impreza (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Legacy (w/ nav)
2015-2020 Legacy (both nav and non-nav models - non-Harman Kardon models only)
2012-2014 Outback (w/ nav)
2012-2014 Outback (non-nav with display screen - Harman Kardon models will need an additional wire added for the amp. Email when you orde and we can add it for you.)
2015-2020 Outback (both nav and non-nav models - non-Harman Kardon models only)
2012-2015 WRX and WRX STI (w/ nav)
2016-2022 WRX (both nav and non-nav models - non-Harman Kardon models only)
Toyota/Scion
1994-2018 All Models (except models with JBL audio)
