2020 Subaru Ascent Headunit Install

All of the following adapters will be needed for installing an aftermarket headunit in your Subaru Ascent. This will include the 28-pin adapter, AM/FM adapter, and either the Metra 70-1761 or, if you're installing a Pioneer headunit, Pioneer direct wire harness.

These parts will not retain the OEM bluetooth microphone and you'll need an additional adapter to retain the XM radio antenna if your car has it. The XM radio adapter is sold here.

Our USB harness will only work if you've got the single port USB port. Since the Subaru Ascent has 2 USB ports, we will need to make other arrangements. (Run a USB extension from the back headunit to the glove box for the USB or buy the single port module from Subaru) The Maestro SW module is recommented for retaining the steering wheel controls.

28-pin adapter:

Item Number: 1601-8

Subaru Ascent headunit installation harness

Description:

The 28-pin adapter will allow you to Install a new headunit and maintain backup camera functionality.

Harman Kardon Note: If your Subaru Ascent has the Harman Kardon audio package, installation of an aftermarket headunit will require additional hardware to replace/bypass the factory Harman Kardon amplifier. Please contact us for details.

This wiring harness maintains many of the features of your stock unit, including connecting your stock backup camera to your new aftermarket headunit. It will connect to both the 28-pin and the 5-pin connectors in your vehicle wiring.

This interface will provide 6 vdc to your backup camera for power and will also provide the video signal to the aftermarket headunit. (The OEM bakcup camera is powered by 6v)

The harness connects in the place of the 28-pin and 5-pin connectors. It will provide connection to the following signals:
-Backup camera functionality (connected to the new unit via RCA connector)
-Auxiliary inputs(connected to the new unit via RCA connector. ***Analog audio input only***)
-Steering wheel controls. The Maestro SW interface module is required to maintain steering wheel controls but we've connected the Maestro Connector for you! Just plug it in!
-Reverse gear signal (provided as a wire to be connected to the new unit).
-Vehicle Speed Sensor (VSS) signal.

The harness is mostly plug and play. No splicing the stock wiring harness. Does not disturb stock appearance. If you are connecting to a Pioneer Headunit, Order the AHH-70-1761 instead of the Metra 70-1761 (both are sold below). This makes the install very simple. All that you'll need to do is connect the connector between the 28-pin adapter and the AHH-70-1761! No Soldering!

28-pin harness: $47

Power and Audio Wiring:

Metra 70-1761

Please Select an option above to purchase!

Buy Button

Price: $6

Please select EITHER Option 1, Option 2, or Option 3. You only need one of these.

Option 1 (Standard): Metra 70-1761
Metra 70-1761
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

Option 2 (Upgrade): Direct wire harness for Pioneer Headunits
Metra 70-1761

The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your vehicle. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE)

Direct wire harness: $17

Option 3 (Upgrade with E-brake bypass): Direct wire harness for Pioneer Headunits - With Parking Brake Bypass Module
Metra 70-1761 for Subaru and Pioneer

The AHH-70-1761 harness is the simplest way to install a Pioneer headunit in your Subaru. It is pre-wired with the Pioneer connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE)

The Upgrade: This adapter also has the Pioneer Parking Brake Bypass module built in. This will defeat the vehicle in motion lock-out features of your Pioneer headunit. (It simulates an engaged parking brake to your headunit)

Direct wire harness: $23

Please select EITHER Option 1 or Option 2. You only need one of these.

Option 1 (Standard): Metra 70-1761
Metra 70-1761
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

Option 2 (Upgrade): Direct wire harness for Sony Headunits
Metra 70-1761

The AHH-70-1761SO harness is the simplest way to install a Sony headunit in your vehicle. It is pre-wired with the Sony connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE)

Direct wire harness: $20

Please select EITHER Option 1 or Option 2. You only need one of these.

Option 1 (Standard): Metra 70-1761
Metra 70-1761
The Metra 70-1761 harness will retain:
-Speaker connections
-Power/Ground connections
-Illumination Power

Metra 70-1761: $6

Option 2 (Upgrade): Direct wire harness for ATOTO Headunits
ATOTO Car Radio Direct Wire Adapter

The AHH-70-1761ATOTO harness is the simplest way to install a ATOTO headunit in your vehicle. It is pre-wired with the ATOTO connector on 1 end and the Subaru connector on the other. This will save you lots of soldering! (Full details located HERE)

This adapter will also retain the steering wheel controls if your car has them! (it has the 28-pin connector attached) It will not retain the backup camera without other adapters.

Direct wire harness: $25

AM/FM adapter harness:

(No picture)

The AM/FM antenna adapter will retain the AM/FM radio antenna.

Price: $19

Compatibility:

2019-2020 Subaru Ascent (Non Harman Kardon)

Related Products:

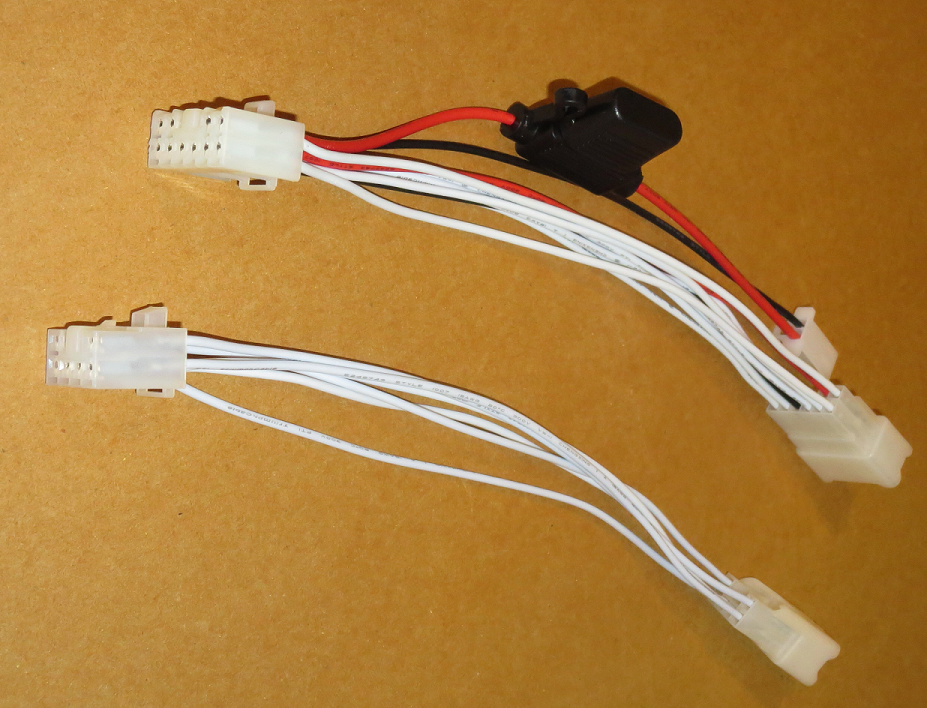

Jumper Harness

Aftermarket Headunit installation adapters for other Subaru Models

Find adapters for installing aftermarket equiptment in your Subaru WRX, BRZ, Impreza, Forester, or Crosstrek on this page.

CLICK HERE FOR MORE INFO

Jumper Harness

Find the correct Splice/Jumper harness for your Subaru with our new PartFinder Page!

Installing an aftermarket amplifier or subwoofer? Pick the correct jumper harness for your vehicle based on the model and configuration of your vehicle HERE!

This prevents the need to cut or damage factory wiring when adding an aftermarket amplifier or subwoofer.

CLICK HERE FOR MORE INFO
