Subaru Aftermarket Stereo Installation Harnesses
Plug & play wiring for WRX, Crosstrek, Forester, Outback, Legacy & BRZ - Retain backup camera, steering wheel controls & USB
Parts for installing an aftermarket radio in your Subaru:
 |
Aftermarket Headunit Installation GearUpgrade your OEM audio system! Click here to see the wiring that we recommend for installing an aftermarket headunit or navigation system in your Subaru. These adapters will give you what you need to retain the backup camera and steering wheel controls as well as most other OEM functions. Shop Subaru Headunit Installation Kits |
 |

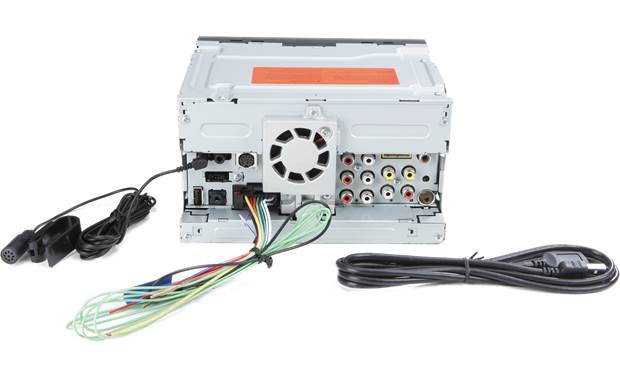

Plug and Play Car Stereo Adapters - The simplest way to install a Pioneer, Sony, or ATOTO headunit in your Subaru!If you are installing a new headunit in your vehicle, consider one of these models! This wiring harness skips the hassle of soldering between the radio's wiring and the Metra 70-1761. Connect it directly! Pioneer - Sony - ATOTO |
 |
For 2009-2015 Subaru Models:20-pin ATOTO, Sony, or Pioneer - Direct Wire harness!If you are installing a Pioneer or ATOTO headunit in your vehicle, this harness skips the hassle of soldering between the headunit wiring and the Metra 70-7552. Connect it directly! Pioneer - Sony - ATOTO - All Other Models |
 |
For pre-2009 Subaru Models - 14-pin Pioneer, Sony, or ATOTO Direct Wire HarnessIf you are installing a Sony, ATOTO, or Pioneer stereo headunit in your vehicle, this harness skips the hassle of soldering between the Double-Din wiring dongle and the Metra 70-8901. Connect it directly! Pioneer - Sony - ATOTO A6PF, S8Lite, or S8MS - ATOTO S8 or F7 - All Other Models |
 |
Subaru Front View Camera Harness Kit (FRAC Harness)The Subaru FRAC harness allows you to install a front camera on your vehicle and display the camera image on demand on your vehicle's existing headunit screen. The kit will also allow you to turn on the rear camera on demand. If your car does not have a rear camera or the rear camera does not display on the OEM headunit, an RCA connector is provided to connect an aftermarket camera. This front camera can be used as a Parking or for forward vehicle monitoring! Check FRAC Compatibility & Order |
 |
Parking Brake Bypass Interface Module for Select Pioneer HeadunitsIf you are installing a Pioneer headunit in your vehicle and do not have access to the Parking Brake signal (E-brake), then you may choose to bypass the video in motion function on your Pioneer headunit. This model will accomplish this! This unit is plug and play for pre-2009 Subaru Direct wire adapter above. View Pioneer Bypass Module |
Other parts to fit your Subaru:
 |

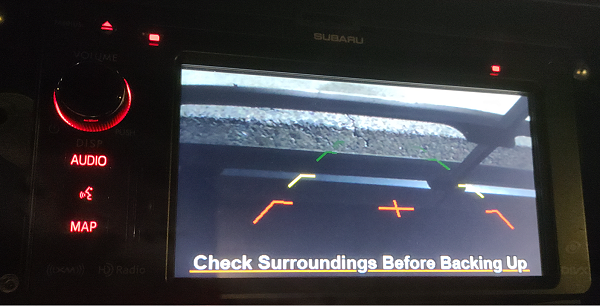

MFD Backup Camera Relocation HarnessMany 2014-2015 Subaru vehicles use the small Multi-function display (MFD) in the dash to display the OEM backup camera. We have developed an adapter to allow our customers to relocate the backup camera image from the MFD to the larger navigation screen. Important Note: After installation, the backup camera image will no longer display on the MFD. This harness will relocate the image from the MFD to the larger, headunit screen. Your backup camera will now only display on the headunit. Shop MFD Camera Relocation Harness |
 |

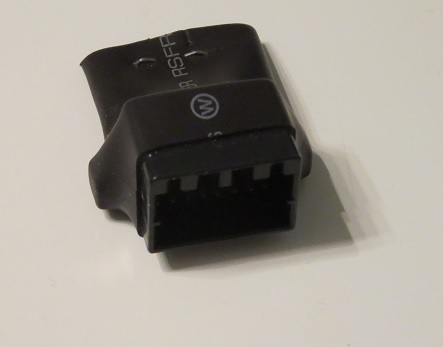

Subaru Telematics/Starlink Bypass PlugAre you tired of the Subaru Telematics system acting as big brother? Maybe you've installed a new audio receiver in your car and you removed the telematics unit. Now the front speakers don't work? This adapter will get the front speakers working without the Subaru Telematics unit installed. No more of the Telematics unit tracking your whereabouts or sending you annoying emails about vehicle error messages! Shop Starlink Bypass Plug |
 |
Aftermarket Amplifier and Subwoofer InstallationInstalling an aftermarket amplifier or subwoofer? Pick the correct jumper harness for your vehicle based on the model and configuration of your vehicle HERE! This prevents the need to cut or damage factory wiring when adding an aftermarket amplifier or subwoofer. Shop Amplifier & Subwoofer Harnesses |
 |
7" Starlink Headunit Installation Harness for 2016+ Subaru with 6.2" StarlinkThis harness is a custom harness built to retain backup camera functionality for customers updating their vehicle from a 6.2" Starlink headunit to a 7" Starlink headunit. The backup camera connectors for these headunits are different so this breakout harness is necessary to retain the functionality of the backup camera. Shop 7" Starlink Upgrade Harness |
 |

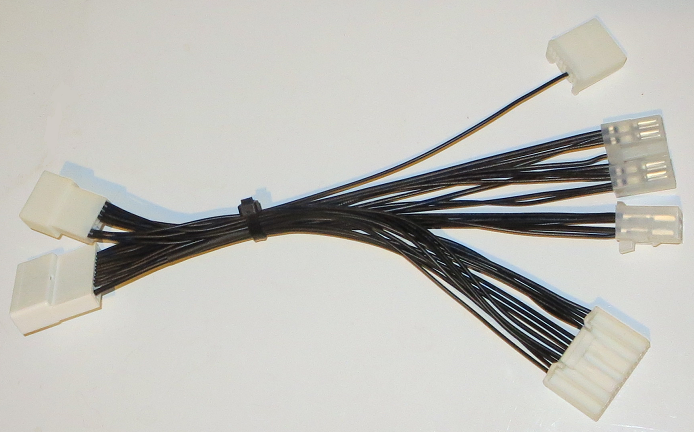

Subaru Fujitsu-ten Transplant Harness (For 2011-2015 vehicles)This is an adapter harness that connects to the 20-pin and 16-pin connectors on your vehicle's factory wiring harness. It will provide the necessary electrical connections to install(Transplant) a Fujitsu Ten navigation unit into most newer non-navigation subaru vehicles. Installation is plug and play. Please contact our support team (email to inquiry@autoharnesshouse.com) if you are installing a newer Fujitsu-ten headunit. Newer models are not covered by this page. Shop Fujitsu-Ten Transplant Harness |
.jpg) |
Backup Camera Installation HarnessThe cheapest and cleanest way to add a backup camera to your car or truck! This harness connects a 12-volt Backup Camera to the stock Toyota/Subaru/Scion head unit. The stock head unit is wired with a 6-volt output. This harness uses a 6-volt relay and the 12-volt accessory power provided to the stock head unit to provide a 12-volt output and composite video input for any standard automobile backup camera. Shop Backup Camera Installation Harness |
 |

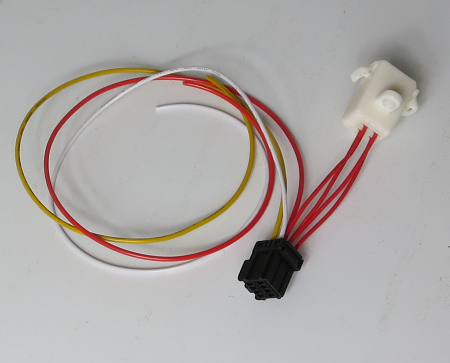

Install the JDM A/V Panel (2005-2009 Legacy and Outback)If your Legacy or Outback has automatic climate control (which is integrated into the OEM audio system), replacing the OEM system means relocating the climante controls. The solution to this is to install the JDM A/V panel, which will require Illumination+ and Illumination- signals from the audio wiring harness as well as +12V. Click here to see what wiring you will need to install the JDM A/V Panel. This is known as the i88 installation adapter in some online forums. Shop JDM A/V Panel Adapter |

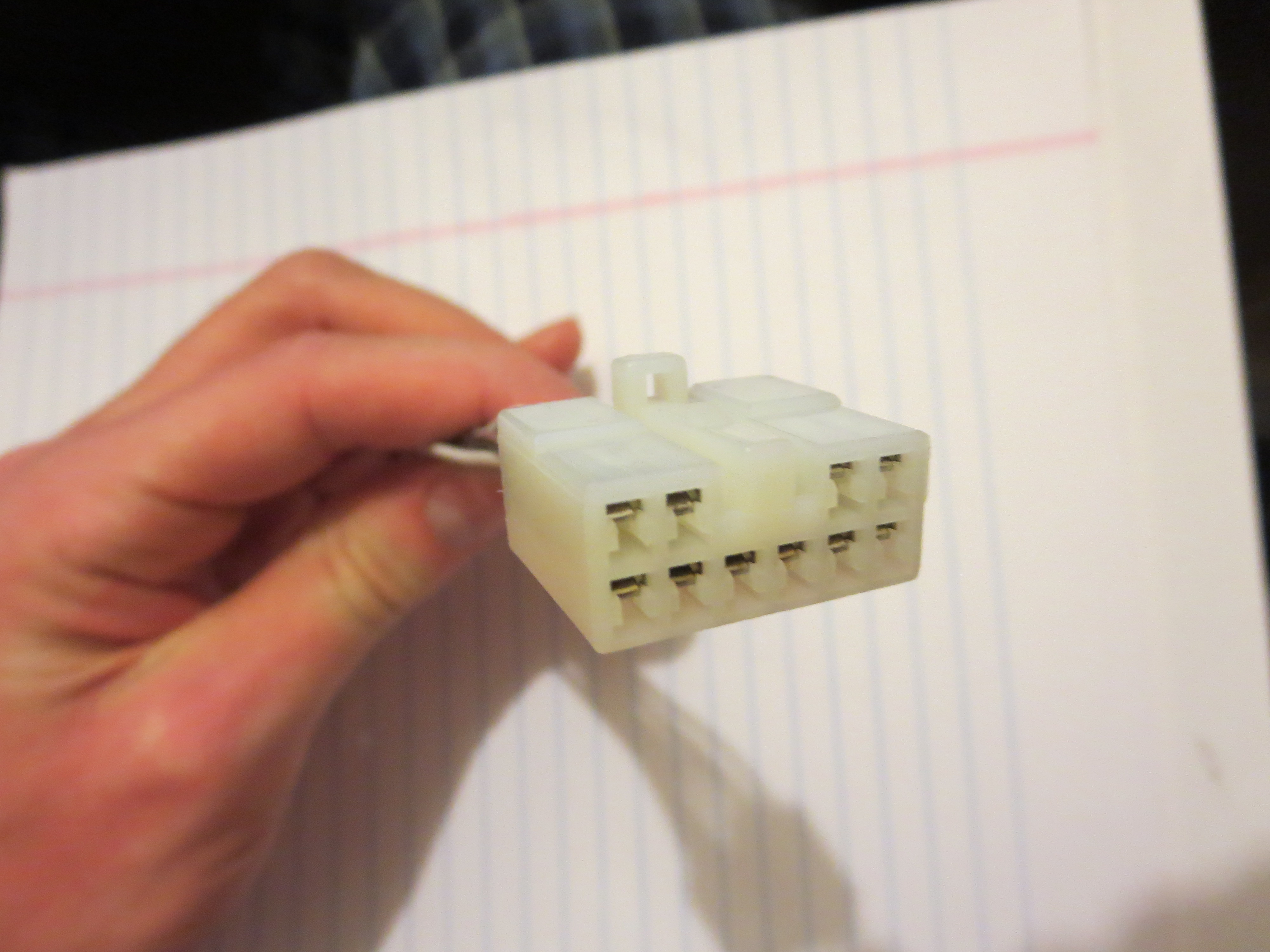

Additional 28-pin or 16-pin Socket Pins
.jpg)
Wired socket pins to fit the 28-pin or 16-pin connector are available. These will fit the stock connector that plugs into the stereo/entertainment system.
Shop Socket Pins
12-Volt Power Port - Add-a-Port Harness (Fits: Toyota/Subaru/Scion)
.jpg)
Add a fused "Cigarette Lighter" power port to any Toyota or Scion(also fits some Subaru's).
Shop Add-a-Port Harness
28-Pin Head Unit Wiring Harness Adapter (Fits: Toyota/Subaru/Scion)
.jpg)
28-pin "jumper-type" harness to fit many Subaru, Toyota, and Scion vehicles. This harness has the female and male connector. One end will connect to the factory harness and the other to the connector on the back of the head-unit or navigation system.
Shop 28-Pin Jumper Harness

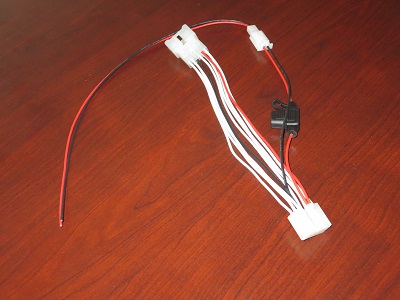

12-Volt Splice Harness (Fits: Toyota/Subaru/Scion)
.jpg)
Provides a fused(2 amp), switched 12-Volt accessory output. Connects between standard toyota 10-pin radio/head unit connector and the stereo unit.
The harness is 100% plug and play. No splicing the stock wiring harness. Does not disturb stock appearance.
Shop 12-Volt Splice Harness
Frequently Asked Questions
|
Will I keep my backup camera when installing an aftermarket stereo? Yes! On 2016+ vehicles, the 28-pin backup camera retention harness keeps your factory backup camera working with your new aftermarket stereo. No modifications needed - it's 100% plug and play. On older Subaru models, we have adapters that will also keep the backup camera working: With Navigation | Without Navigation |
|
Do I need to cut any wires to install these harnesses? No cutting or splicing required for most of our adapters. All our Subaru harnesses for Pioneer, Sony and ATOTO units are plug and play, connecting directly between your factory wiring and aftermarket headunit. |
|
Will my steering wheel controls still work? Yes, our installation kits retain steering wheel control functionality. You may need an SWC interface module (like the ASWC-1) if you're installing a Pioneer headunit, but most Android or Sony units don't require an interface. |
|
What Subaru models do these harnesses fit? We have harnesses for all Subaru models including WRX, Crosstrek, Forester, Outback, Legacy, Impreza, and BRZ from 2005 to present. Use our compatibility tool to find the right harness for your specific year and model. |
|
How long does installation take? Most of our plug and play harnesses can be installed in under 30 minutes. No special tools required - just connect the harness between your factory wiring and new headunit. |
|
What parts are required to remove the Subaru Telematics module and disable vehicle tracking? We recommend using the Subaru Starlink Bypass Plug. The Option 1 bypass plug is used if you do not need to retain the OEM handsfree microphone (such as if you have an aftermarket headunit) - it will only reconnect the front speakers. The Option 2 plug will also enable the microphone. |
|
Will the Starlink Bypass plug fix the issue with my vehicle battery draining? The battery drain issue is a common problem with Subaru vehicles that have the Starlink module. Removing the module with our bypass plug does usually fix this issue. (Note that it is possible for the battery drain to be coming from another source.) |
